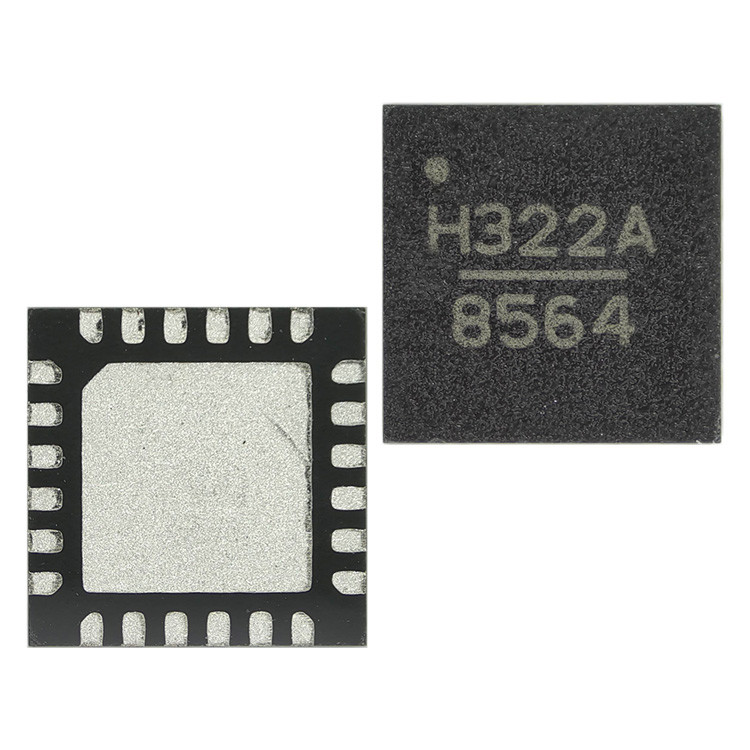

HMC322ALP4E IC RF SWITCH SP8T 8GHZ 24QFN Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | HMC322ALP4E |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | - | RF Type | - |
|---|---|---|---|
| Topology | Absorptive | Circuit | SP8T |
| Frequency Range | 0Hz ~ 8GHz | Isolation | 40dB |
| Insertion Loss | 2.5dB | Test Frequency | 6GHz, 8GHz |
| P1dB | 26dBm | IIP3 | 40dBm |
| Impedance | 50Ohm | Voltage - Supply | - |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad | Supplier Device Package | 24-QFN (4x4) |
| Highlight | IC RF,RF Integrated Circuit Module,RF IC Chip Module |
||
Product Description
Product Details
General Description
The HMC322 is a broadband non-refl ective GaAs MESFET SP8T switch chip. Covering DC to 10 GHz, this switch offers high isolation and low insertion loss and extends the frequency coverage of Hittite’s SP8T switch product line. This switch also includes an on board binary decoder circuit which reduces the required logic control lines to three. The switch operates using a negative control voltage of 0/-5V, and requires a fi xed bias of -5V. All data is tested with the chip in a 50 Ohm test fi xture connected via 0.025 mm (1 mil) diameter wire bonds of 0.5 mm (20 mils) length.
Features
Broadband Performance: DC - 10.0 GHzHigh Isolation: >38 dB@ 4 GHz
Low Insertion Loss: 2.0 dB@ 4 GHz
Integrated 3:8 TTL Decoder
Small Size: 1.45 x 1.6 x 0.10 mm
Typical Applications
The HMC322 is ideal for:• Telecom Infrastructure
• Microwave Radio & VSAT
• Military & Space
• Test Instrumentation
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | RF Switches |
| Series | HMC322AG |
| Packaging | Cut Strip |
| Unit-Weight | 0.032741 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 24-VFQFN Exposed Pad |
| Impedance | 50 Ohm |
| Technology | GaAs |
| Operating-Temperature | -40°C ~ 85°C |
| Features | - |
| Voltage-Supply | - |
| Supplier-Device-Package | 24-QFN (4x4) |
| Circuit | SP8T |
| Topology | Absorptive |
| Insertion-Loss | 2.5 dB |
| P1dB-Compression-Point | 26dBm |
| RF-Type | - |
| Frequency-Lower | 0Hz |
| Frequency-Upper | 8GHz |
| Isolation-Frequency | 40dB @ 6GHz (typ) |
| Insertion-Loss-Frequency | 2.5dB @ 8GHz |
| IIP3 | 40dBm (typ) |
| Pd-Power-Dissipation | 348 mW |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Switch-Configuration | SP8T |
| Operating-Frequency | DC to 8 GHz |
| Package-Case | QFN-24 |
| Off-Time-Max | 150 ns |
| Ports of Switches | Octal |
| On-Time-Max | 150 ns |
| Off-Isolation-Typ | 35 dB |
Descriptions
RF Switch ICs DC-8GHz SP8T
