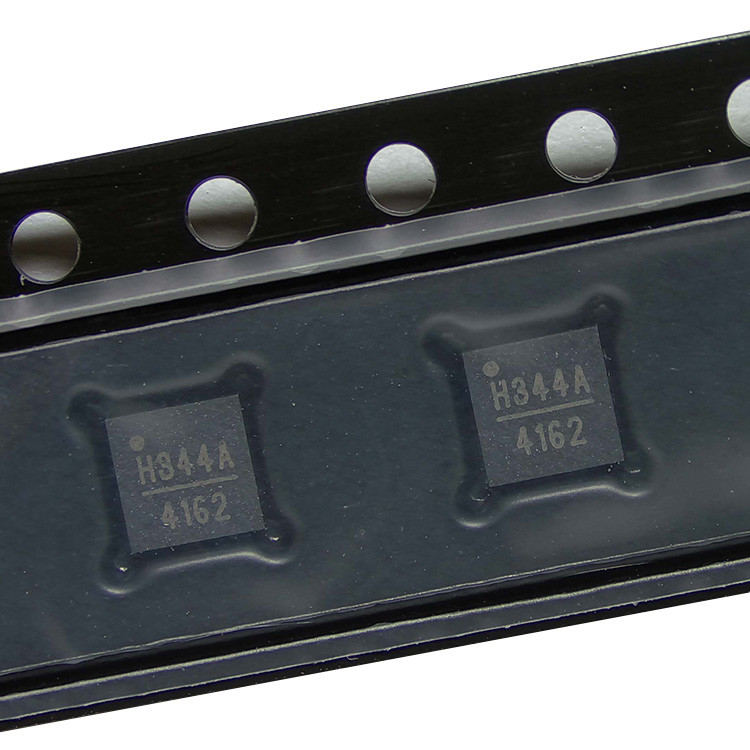

HMC344ALP3E IC RF SWITCH SP4T 8GHZ 16QFN Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | HMC344ALP3E |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | - | RF Type | VSAT |
|---|---|---|---|
| Topology | Absorptive | Circuit | SP4T |
| Frequency Range | 0Hz ~ 8GHz | Isolation | 35dB |
| Insertion Loss | 1.9dB | Test Frequency | 4GHz |
| P1dB | - | IIP3 | 40dBm |
| Impedance | 50Ohm | Voltage - Supply | - |
| Operating Temperature | -55°C ~ 85°C | Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad | Supplier Device Package | 16-QFN (3x3) |
| Highlight | IC RF,RF Integrated Circuit Module,RF IC Chip Module |
||
Product Description
Product Details
General Description
The HMC344ALP3E is a broadband non-reflective GaAs MESFET SP4T switch in a low cost leadless surface mount packages. Covering DC to 8 GHz, this switch offers high isolation and low insertion loss and extends the frequency coverage of Hittite’s SP4T switch product line. This switch also includes an on board binary decoder circuit which reduces the required logic control lines to two. The switch operates using a negative control voltage of 0/-5V, and requires a fixed bias of -5V.
Features
Broadband Performance: DC - 8 GHzHigh Isolation: 36 dB@ 6 GHz
Low Insertion Loss: 1.7 dB@ 6 GHz
Integrated 2:4 TTL Decoder
16 Lead 3x3mm QFN Package: 9 mm²
Typical applications
This switch is suitable for usage in DC - 8.0 GHz50-Ohm or 75-Ohm systems:
• Broadband
• Fiber Optics
• Switched Filter Banks
• Wireless below 8 GHz
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | RF Switches |
| Series | HMC344AG |
| Packaging | Cut Strip |
| Package-Case | Die |
| Impedance | 50 Ohm |
| Operating-Temperature | -55°C ~ 85°C |
| Features | - |
| Voltage-Supply | - |
| Supplier-Device-Package | Die |
| Circuit | SP4T |
| Topology | Absorptive |
| P1dB-Compression-Point | - |
| RF-Type | VSAT |
| Frequency-Lower | 0Hz |
| Frequency-Upper | 8GHz |
| Isolation-Frequency | 35dB @ 4GHz (typ) |
| Insertion-Loss-Frequency | 1.9dB @ 4GHz |
| IIP3 | 40dBm (typ) |
Descriptions
RF Switch IC VSAT SP4T 8GHz 50 Ohm 16-QFN (3x3)
RF Switch ICs DC-8 GHz SP4T -V NonReflective Switch
