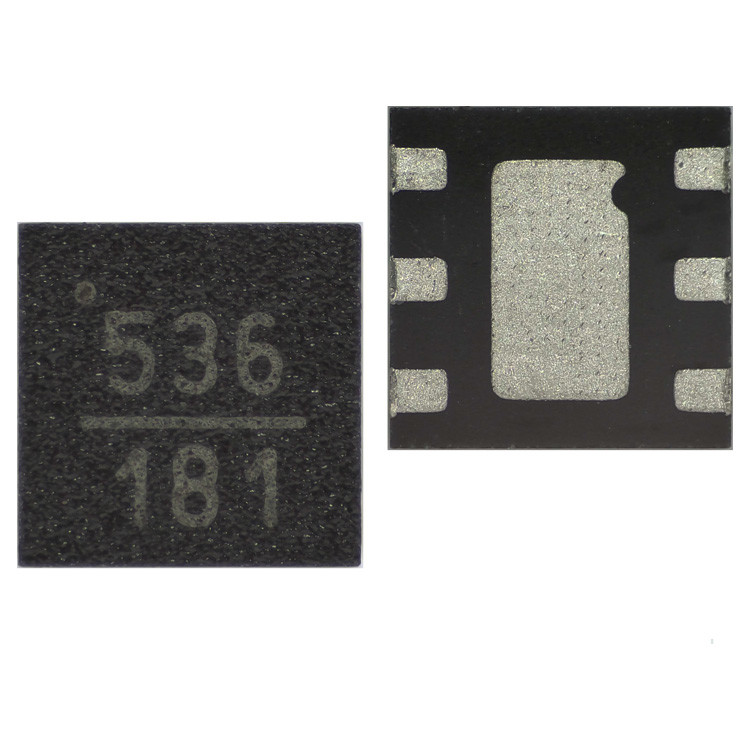

HMC536LP2 IC RF SWITCH SPDT 6GHZ 6DFN Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | HMC536LP2 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | - | RF Type | Cellular |
|---|---|---|---|
| Topology | - | Circuit | SPDT |
| Frequency Range | 0Hz ~ 6GHz | Isolation | 29dB |
| Insertion Loss | 1dB | Test Frequency | 6GHz |
| P1dB | 33dBm | IIP3 | 52dBm |
| Impedance | 50Ohm | Voltage - Supply | 5V |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Package / Case | 6-TDFN Exposed Pad | Supplier Device Package | 6-DFN (2x2) |
| Highlight | IC RF,RF Integrated Circuit Module,RF IC Chip Module |
||
Product Description
Product Details
General Discription
The HMC539LP3 & HMC539LP3E are broadband 5-bit GaAs IC digital attenuators in low cost lead less surface mount packages. This single positive control line per bit digital attenuator utilizes an off chip AC ground capacitor for near DC operation, making it suitable for a wide variety of RF and IF applications. Covering DC to 4 GHz, the insertion loss is less than 0.7 dB typical.
Features
0.25 dB LSB Steps to 7.75 dB± 0.05 dB Typical Step Error
Low Insertion Loss: 0.7 dB
High IP3: +50 dBm
Single Control Line Per Bit
TTL/CMOS Compatible Control
Single +5V Supply
3x3 mm SMT Package
Typical Applications
The HMC539LP3 / HMC539LP3E is ideal for both RF and IF applications:
• Cellular Infrastructure
• ISM, MMDS, WLAN, WiMAX, WiBro
• Microwave Radio & VSAT
• Test Equipment and Sensors
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | RF Switches |
| Series | HMC536 |
| Packaging | Cut Strip Alternate Packaging |
| Unit-Weight | 0.000744 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 6-TDFN Exposed Pad |
| Impedance | 50 Ohm |
| Technology | GaAs |
| Operating-Temperature | -40°C ~ 85°C |
| Features | - |
| Voltage-Supply | 5V |
| Supplier-Device-Package | 6-DFN (2x2) |
| Circuit | SPDT |
| Topology | - |
| Insertion-Loss | 0.6 dB |
| P1dB-Compression-Point | 33dBm |
| RF-Type | Cellular |
| Frequency-Lower | 0Hz |
| Frequency-Upper | 6GHz |
| Isolation-Frequency | 29dB @ 6GHz (typ) |
| Insertion-Loss-Frequency | 1dB @ 6GHz |
| IIP3 | 52dBm (typ) |
| Pd-Power-Dissipation | 0.86 W |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Switch-Configuration | SPDT |
| Operating-Frequency | DC to 6 GHz |
| Package-Case | DFN-6 |
| Ports of Switches | Dual |
| Off-Isolation-Typ | 27 dB |
Descriptions
RF Switch IC Cellular SPDT 6GHz 50 Ohm 6-DFN (2x2)
RF Switch SPDT 0MHz to 6GHz 23dB 6-Pin DFN EP T/R
RF Switch ICs 3W SPDT T/R Switch SMT DC - 6 GHz
