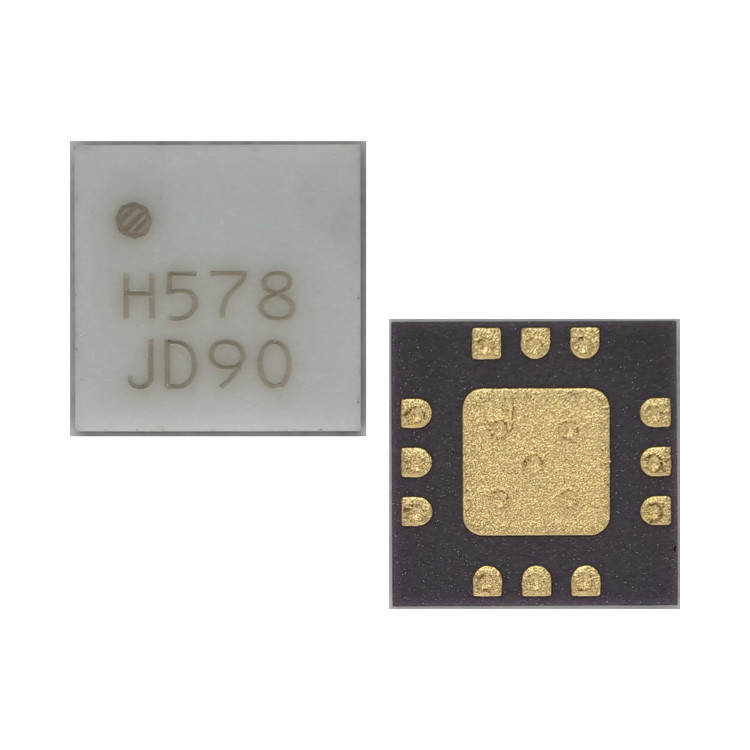

HMC578LC3B IC MULTIPLIER X2 BB 12SMD Analog Devices Inc.



General Description

The HMC578LC3B is a x2 active broadband frequency multiplier utilizing GaAs PHEMT technology in a leadless RoHS compliant SMT package. When driven by a +3 dBm signal, the multiplier provides +15 dBm typical output power from 24 to 33 GHz. The Fo and 3Fo isolations are >20 dBc and >30 dBc respectively at 28 GHz. The HMC578LC3B is ideal for use in LO multiplier chains for Pt to Pt & VSAT Radios yielding reduced parts count vs. traditional approaches. The low additive SSB Phase Noise of -129 dBc/Hz at 100 kHz offset helps maintain good system noise performance. The RoHS packaged HMC578LC3B eliminates the need for wire bonding, and allows the use of surface mount manufacturing techniques.





Features

High Output Power: +15 dBm
Low Input Power Drive: 0 to +6 dBm
Fo Isolation: >20 dBc @ Fout= 28 GHz
100 KHz SSB Phase Noise: -132 dBc/Hz
Single Supply: +5V@ 81 mA
RoHS Compliant 3x3 mm SMT Package





Typical Applications

The HMC578LC3B is suitable for:
• Clock Generation Applications: SONET OC-192 & SDH STM-64
• Point-to-Point & VSAT Radios
• Test Instrumentation
• Military & Space
