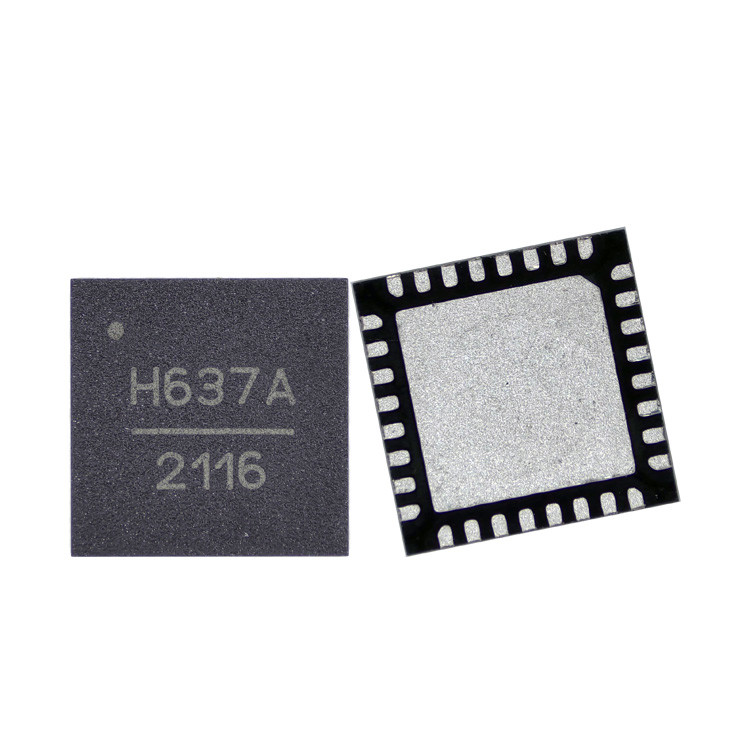

HMC637ALP5E IC RF AMP VSAT 0HZ-6GHZ 32QFN Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | HMC637ALP5E |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 0Hz ~ 6GHz | P1dB | 29dBm |
|---|---|---|---|
| Gain | 13dB | Noise Figure | 5dB |
| RF Type | VSAT | Voltage - Supply | 12V |
| Current - Supply | 400mA | Test Frequency | - |
| Mounting Type | Surface Mount | Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) | ||
| Highlight | IC RF,RF Integrated Circuit Module,RF IC Chip Module |
||
Product Description
Product Details
General Description
HMC981 is an active bias controller that automatically adjusts the gate voltage of an external amplifier to achieve constant bias current. It can be used to bias any enhancement and depletion type amplifiers operating in Class-A regime with Drain voltages from 4V to 12V and drain currents up to 200mA, offering a complete biasing solution.
Features
Automatic Gate voltage adjustment (No Calibration required)Supply Voltage: 4V to 12V
Digital Voltage: 3.3V to 5V
Controls both Enhancement and Depletion type devices
Adjustable Drain Current up to 200mA
Sink/Source Gate Current Capability
Optional Internal negative voltage generation that can be disabled to use external negative rail
Fast Enable/Disable
Trigger-out Output for Daisy Chain Power-Up and Power-Down Sequencing
Typical Applications
• Microwave Radio & VSAT• Military & Space
• Test Instrumentation
• Fiber Optic Modulator Driver Biasing
• CATV Laser Driver Biasing
• Cellular Base Station
• Wireless Infrastructure Equipment
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | RF Amplifiers |
| Series | HMC637AG |
| Type | Power Amplifier |
| Packaging | Tray |
| Unit-Weight | 0.006653 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 32-VFQFN Exposed Pad |
| Frequency | 0Hz ~ 6GHz |
| Technology | GaAs |
| Frequency-Range | DC to 6 GHz |
| Number-of-Channels | 1 Channel |
| Voltage-Supply | 12V |
| Supplier-Device-Package | 32-QFN (5x5) |
| Current-Supply | 400mA |
| Gain | 13dB |
| Test-Frequency | - |
| P1dB-Compression-Point | 29dBm |
| Noise-Figure | 5dB |
| RF-Type | General Purpose |
| Pd-Power-Dissipation | 8.6 W |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Voltage | 12 V |
| Operating-Supply-Current | 400 mA |
| Operating-Frequency | DC to 6 GHz |
| NF-Noise-Figure | 12 dB |
| P1dB-Compression-Point | 29 dBm |
| Package-Case | QFN-32 |
| OIP3-Third-Order-Intercept | 44 dBm |
| Input-Return-Loss | 12 dB |
Descriptions
RF Amplifier IC VSAT 0Hz ~ 6GHz 32-QFN (5x5)
RF Amp Single Power Amp 6GHz 14V 32-Pin QFN EP T/R
RF Amplifier Distributed amp
