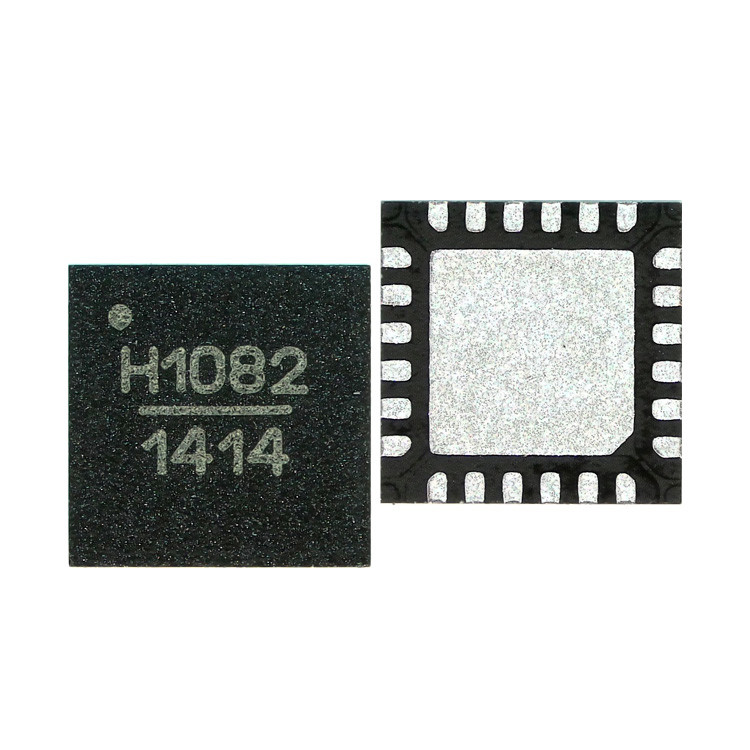

HMC1082LP4E IC RF AMP GPS 5.5GHZ-18GHZ 24QFN Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | HMC1082LP4E |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 5.5GHz ~ 18GHz | P1dB | 24dBm |
|---|---|---|---|
| Gain | 22dB | Noise Figure | - |
| RF Type | General Purpose | Voltage - Supply | 4V ~ 5V |
| Current - Supply | 220mA | Test Frequency | - |
| Mounting Type | Surface Mount | Package / Case | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-QFN (4x4) | ||
| Highlight | IC RF,RF Integrated Circuit Module,RF IC Chip Module |
||
Product Description
Product Details
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | RF Amplifiers |
| Series | HMC1082 |
| Type | RF Amplifier |
| Packaging | Cut Strip Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | 24-VFQFN Exposed Pad |
| Frequency | 5.5GHz ~ 18GHz |
| Technology | GaAs |
| Frequency-Range | 5.5 GHz to 18 GHz |
| Number-of-Channels | 1 Channel |
| Voltage-Supply | 4 V ~ 5 V |
| Supplier-Device-Package | 24-SMT (4x4) |
| Current-Supply | 220mA |
| Gain | 22dB |
| Amplifier-Type | Driver |
| Test-Frequency | - |
| P1dB-Compression-Point | 24dBm |
| Noise-Figure | - |
| RF-Type | General Purpose |
| Pd-Power-Dissipation | 1.81 W |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Voltage | 5 V |
| Operating-Supply-Current | 220 mA |
| Operating-Frequency | 18 GHz |
| P1dB-Compression-Point | 24 dBm |
| Package-Case | SMT-24 |
| OIP3-Third-Order-Intercept | 35 dBm |
| Input-Return-Loss | 22 dB |
Descriptions
RF Amp Single Power Amp 18GHz 5.5V 24-Pin QFN EP T/R
RF Amplifier amp Driver
