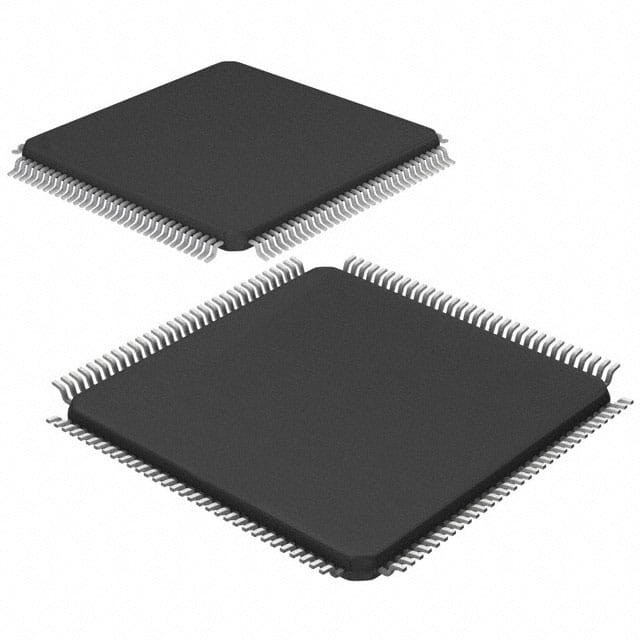

TM4C1294NCPDTI3R IC MCU 32BIT 1MB FLASH 128TQFP Texas Instruments
| Brand Name | Texas Instruments |
|---|---|
| Model Number | TM4C1294NCPDTI3R |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Core Processor | ARM® Cortex®-M4F | Core Size | 32-Bit Single-Core |
|---|---|---|---|
| Speed | 120MHz | Connectivity | CANbus, EBI/EMI, Ethernet, I²C, IrDA, QSSI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, Motion Control PWM, POR, PWM, WDT | Number Of I/O | 90 |
| Program Memory Size | 1MB (1M X 8) | Program Memory Type | FLASH |
| EEPROM Size | 6K X 8 | RAM Size | 256K X 8 |
| Voltage - Supply (Vcc/Vdd) | 2.97V ~ 3.63V | Data Converters | A/D 20x12b |
| Oscillator Type | Internal | Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Package / Case | 128-TQFP |
| Supplier Device Package | 128-TQFP (14x14) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| TM4C1294NCPDTI3R | IC MCU 32BIT 1MB FLASH 128TQFP | |
| MSP432E401YTPDTR | IC MCU 32BIT 1MB FLASH 128TQFP | |
| TM4C129ENCPDTI3R | IC MCU 32BIT 1MB FLASH 128TQFP | |
| TM4C129ENCPDTT3 | IC MCU 32BIT 1MB FLASH 128TQFP | |
| TM4C1294NCPDTT3 | IC MCU 32BIT 1MB FLASH 128TQFP | |
| TM4C129ENCPDTI3 | IC MCU 32BIT 1MB FLASH 128TQFP | |
| TM4C129CNCPDTT3 | IC MCU 32BIT 1MB FLASH 128TQFP | |
| TM4C1294KCPDTI3 | IC MCU 32BIT 512KB FLASH 128TQFP | |
| TM4C1290NCPDTI3R | IC MCU 32BIT 1MB FLASH 128TQFP | |
| TM4C1294KCPDTT3 | IC MCU 32BIT 512KB FLASH 128TQFP | |
| TM4C1290NCPDTT3 | IC MCU 32BIT 1MB FLASH 128TQFP | |
| TM4C1292NCPDTI3 | IC MCU 32BIT 1MB FLASH 128TQFP | |
| TM4C129EKCPDTI3 | IC MCU 32BIT 512KB FLASH 128TQFP | |
| MSP432E401YTPDT | IC MCU 32BIT 1MB FLASH 128TQFP | |
| TM4C1294KCPDTI3R | IC MCU 32BIT 512KB FLASH 128TQFP | |
| TM4C129CNCPDTI3R | IC MCU 32BIT 1MB FLASH 128TQFP | |
| TM4C129EKCPDTI3R | IC MCU 32BIT 512KB FLASH 128TQFP | |
| TM4C1292NCPDTI3R | IC MCU 32BIT 1MB FLASH 128TQFP | |
| TM4C1292NCPDTT3R | IC MCU 32BIT 1MB FLASH 128TQFP | |
| TM4C129DNCPDTI3R | IC MCU 32BIT 1MB FLASH 128TQFP | |
| TM4C1294NCPDTT3R | IC MCU 32BIT 1MB FLASH 128TQFP | |
| TM4C129DNCPDTT3R | IC MCU 32BIT 1MB FLASH 128TQFP | |
| TM4C129ENCPDTT3R | IC MCU 32BIT 1MB FLASH 128TQFP | |
| TM4C129EKCPDTT3 | IC MCU 32BIT 512KB FLASH 128TQFP | |
| TM4C1292NCPDTT3 | IC MCU 32BIT 1MB FLASH 128TQFP | |
| TM4C129DNCPDTT3 | IC MCU 32BIT 1MB FLASH 128TQFP | |
| XM4C129DNCPDTI1 | IC MCU 32BIT 1MB FLASH 128TQFP | |
| XM4C129ENCPDTI1 | IC MCU 32BIT 1MB FLASH 128TQFP | |
| XM4C1292NCPDTI2 | IC MCU 32BIT 1MB FLASH 128TQFP |
Product Description
Product Details
The Texas Instruments TM4C1294NCPDTI3R is an advanced 32-bit microcontroller ideal for complex embedded designs. This device features an ARM Cortex-M4 processor running at 80MHz, 128KB RAM, 1MB of Flash program memory, 12 analog-to-digital converters, and N✖P CAN or CAN with Flexible Data-rate support. The TM4C1294NCPDTI3R is designed to provide reliable, low-profile performance in industrial and embedded applications, and features features such as an integrated crypto engine, QEI support for brushless motors, USB 2.0, and advanced sigma-delta modulation for controlling motor speed. This device comes in a 128-pin Thin Quad Flatpack (TQFP) package, making it well suited for industrial, automotive, and other embedded designs.
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Texas Instruments |
| Product Category | Microcontrollers |
| Series | Tiva™ C |
| Product | MCU |
| Packaging | Tape & Reel (TR) Alternate Packaging |
| Unit-Weight | 0.017760 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 128-TQFP |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Supplier-Device-Package | 128-TQFP (14x14) |
| Number-of-I-O | 90 I/O |
| Speed | 120MHz |
| EEPROM-Size | 6K x 8 |
| Core-Processor | ARMR CortexR-M4F |
| RAM-Size | 256K x 8 |
| Program Memory | FLASH |
| Peripherals | Brown-out Detect/Reset, DMA, Motion Control PWM, POR, PWM, WDT |
| Connectivity | CAN, EBI/EMI, Ethernet, I2C, IrDA, QEI, SPI, SSI, UART/USART, USB OTG |
| Voltage-Supply-Vcc-Vdd | 2.97 V ~ 3.63 V |
| Core-Size | 32-Bit |
| Program-Memory-Size | 1MB (1M x 8) |
| Data-Converters | A/D 20x12b |
| Oscillator-Type | Internal |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Voltage | 3.3 V |
| Interface-Type | CAN Ethernet I2C QSSI UART USB |
| Core | ARM Cortex M4F |
| Processor-Series | Tiva C |
| Data-Bus-Width | 32 bit |
| Supply-Voltage-Max | 3.63 V |
| Supply-Voltage-Min | 2.97 V |
| Package-Case | TQFP-128 |
| Maximum-Clock-Frequency | 120 MHz |
| Number-of-ADC-Channels | 20 Channel |
| Input/output | 90 I/O |
| Data-RAM-Size | 256 kB |
| Data-ROM-Size | 6 kB |
| Number-of-Timers-Counters | 8 x 16/32 bit |
| Watchdog-Timers | Watchdog Timer |
| ADC-Resolution | 12 bit |
| Data-RAM-Type | SRAM |
| Data-ROM-Type | EEPROM |
Descriptions
ARM? Cortex?-M4F Tiva? C Microcontroller IC 32-Bit 120MHz 1MB (1M x 8) FLASH 128-TQFP (14x14)
MCU 32-bit ARM Cortex M4 Harvard 1MB Flash 3.3V Automotive 128-Pin TQFP T/R
ARM Microcontrollers - MCU Tiva C Series Microcontroller
