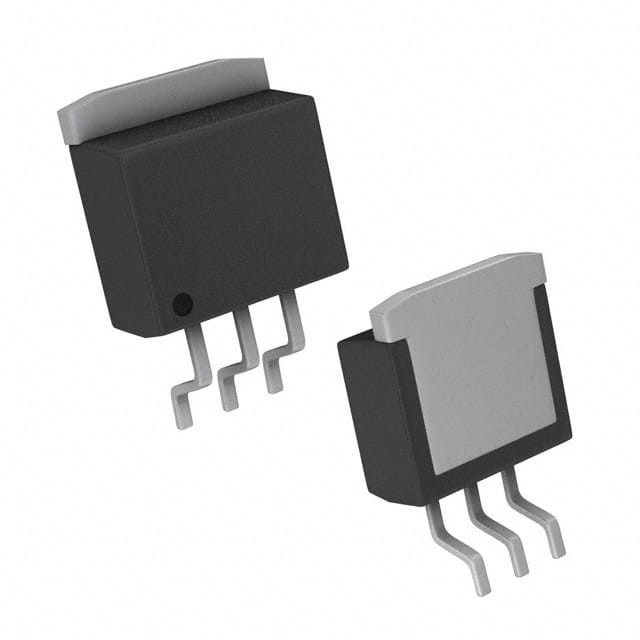

LD1086D2MTR IC REG LINEAR POS ADJ 1.5A D2PAK STMicroelectronics

  • LD1086D2MTR IC REG LINEAR POS ADJ 1.5A D2PAK STMicroelectronics
Brand Name STMicroelectronics
Model Number LD1086D2MTR
Minimum Order Quantity 1
Price Based on current price
Packaging Details anti-static bag & cardboard box
Delivery Time 3-5 work days
Payment Terms T/T
Supply Ability In stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Configuration Positive Output Type Adjustable
Number Of Regulators 1 Voltage - Input (Max) 30V
Voltage - Output (Min/Fixed) 1.25V Voltage - Output (Max) 28.5V
Voltage Dropout (Max) 1.5V @ 1.5A Current - Output 1.5A
Current - Quiescent (Iq) 10 MA Current - Supply (Max) -
PSRR 88dB (120Hz) Control Features -
Protection Features Over Current, Over Temperature Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount Package / Case TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
Supplier Device Package D2PAK
You can tick the products you need and communicate with us in the message board.
Part Number Description
LD1086D2MTR IC REG LINEAR POS ADJ 1.5A D2PAK
