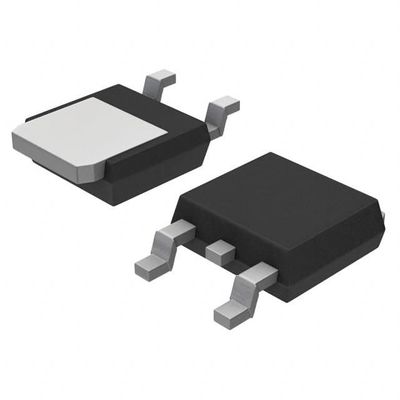

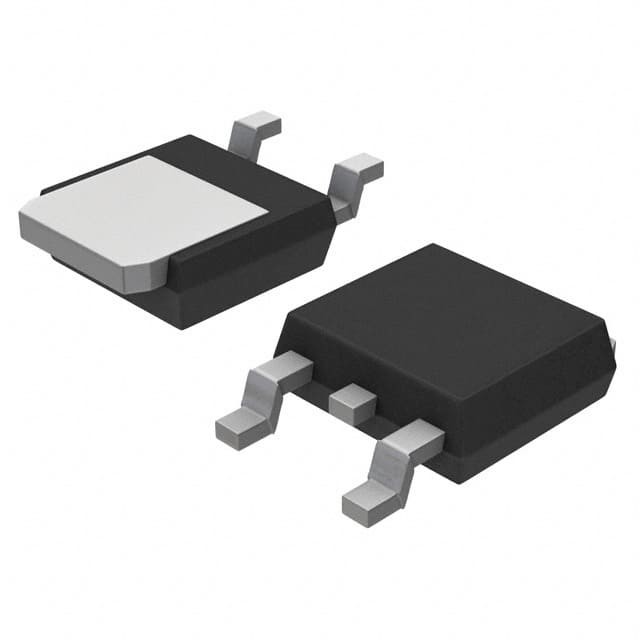

NCP1117DT33T5G IC REG LINEAR 3.3V 1A DPAK onsemi

  • NCP1117DT33T5G IC REG LINEAR 3.3V 1A DPAK onsemi
Brand Name onsemi
Model Number NCP1117DT33T5G
Minimum Order Quantity 1
Price Based on current price
Packaging Details anti-static bag & cardboard box
Delivery Time 3-5 work days
Payment Terms T/T
Supply Ability In stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Configuration Positive Output Type Fixed
Number Of Regulators 1 Voltage - Input (Max) 20V
Voltage - Output (Min/Fixed) 3.3V Voltage - Output (Max) -
Voltage Dropout (Max) 1.2V @ 800mA Current - Output 1A
Current - Quiescent (Iq) 10 MA Current - Supply (Max) -
PSRR 64dB (120Hz) Control Features -
Protection Features Over Current, Over Temperature Operating Temperature 0°C ~ 125°C
Mounting Type Surface Mount Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package DPAK
