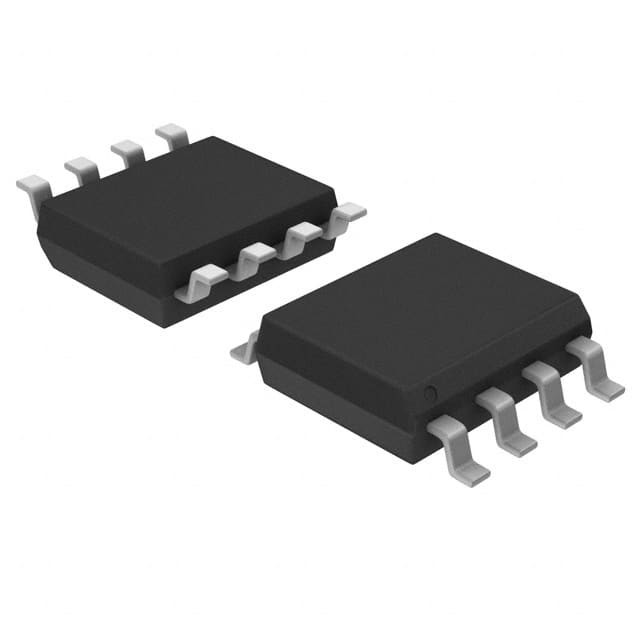

LR645LG-G IC REG LINEAR POS ADJ 3MA 8SOIC Microchip Technology
| Brand Name | Microchip Technology |
|---|---|
| Model Number | LR645LG-G |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Adjustable |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 450V |
| Voltage - Output (Min/Fixed) | 8V | Voltage - Output (Max) | 12V |
| Voltage Dropout (Max) | - | Current - Output | 3mA |
| Current - Quiescent (Iq) | 150 µA | Current - Supply (Max) | - |
| PSRR | 60dB (120Hz) | Control Features | - |
| Protection Features | - | Operating Temperature | -55°C ~ 155°C |
| Mounting Type | Surface Mount | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| LR645LG-G | IC REG LINEAR POS ADJ 3MA 8SOIC | |
