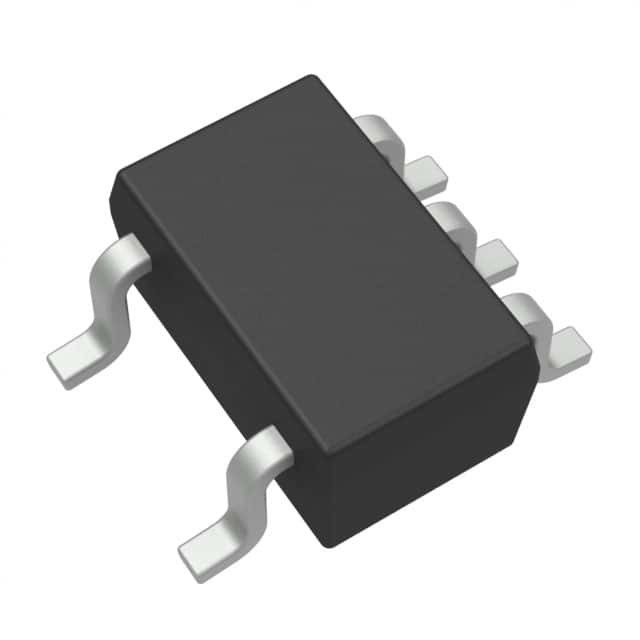

TPS71533DCKR IC REG LINEAR 3.3V 50MA SC70-5 Texas Instruments
| Brand Name | Texas Instruments |
|---|---|
| Model Number | TPS71533DCKR |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 24V |
| Voltage - Output (Min/Fixed) | 3.3V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.75V @ 50mA | Current - Output | 50mA |
| Current - Quiescent (Iq) | 4.2 µA | Current - Supply (Max) | - |
| PSRR | 60dB (100kHz) | Control Features | - |
| Protection Features | Over Current | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
