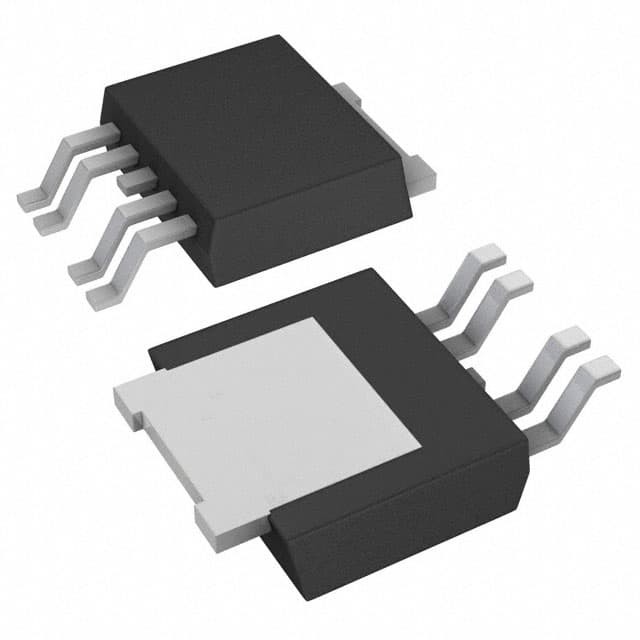

LD39150PT-R IC REG LINEAR POS ADJ 1.5A PPAK STMicroelectronics
| Brand Name | STMicroelectronics |
|---|---|
| Model Number | LD39150PT-R |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Adjustable |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.22V | Voltage - Output (Max) | 5V |
| Voltage Dropout (Max) | 0.4V @ 1.5A | Current - Output | 1.5A |
| Current - Quiescent (Iq) | 2.5 MA | Current - Supply (Max) | - |
| PSRR | 65dB ~ 55dB (120Hz ~ 1kHz) | Control Features | - |
| Protection Features | Over Current, Over Temperature | Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Package / Case | TO-252-5, DPak (4 Leads + Tab), TO-252AD |
| Supplier Device Package | PPAK |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| LD39150PT-R | IC REG LINEAR POS ADJ 1.5A PPAK | |
| LD29150PTR | IC REG LINEAR POS ADJ 1.5A PPAK | |
| LD29150PT50R | IC REG LINEAR 5V 1.5A PPAK | |
| LF50ABPT-TR | IC REG LINEAR 5V 500MA PPAK | |
| LF90CPT-TR | IC REG LINEAR 9V 500MA PPAK | |
| TPS78533QKVURQ1 | AUTOMOTIVE, 1-A, HIGH-ACCURACY, | |
| LF50CPT-TR | IC REG LINEAR 5V 500MA PPAK | |
| TPS7B8750QKVURQ1R2 | AUTOMOTIVE 500-MA, 40-V, LOW DRO | |
| TPS7A6133QKVURQ1 | IC REG LINEAR 3.3V 300MA TO252-5 | |
| LF18ABPT-TR | IC REG LINEAR 1.8V 500MA PPAK | |
| TPS7B8650QKVURQ1 | AUTOMOTIVE 500-MA, 40-V, ULTRA-L | |
| TPS7A6050QKVURQ1 | IC REG LINEAR 5V 300MA TO252-5 | |
| TPS7A6033QKVURQ1 | IC REG LINEAR 3.3V 300MA TO252-5 | |
| TPS78550QKVURQ1 | AUTOMOTIVE, 1-A, HIGH-ACCURACY, | |
| TPS7A6150QKVURQ1 | IC REG LINEAR 5V 300MA TO252-5 | |
| LD39080PT25-R | IC REG LINEAR 2.5V 800MA PPAK | |
| LD39150PT18-R | IC REG LINEAR 1.8V 1.5A PPAK | |
| LD29080PT18R | IC REG LINEAR 1.8V 800MA PPAK | |
| LF85CPT-TR | IC REG LINEAR 8.5V 500MA PPAK | |
| LDF33PT-TR | IC REG LINEAR 3.3V 1A PPAK | |
| TPS7B8633QKVURQ1R2 | AUTOMOTIVE 500-MA, 40-V, ULTRA-L | |
| LD39080PT18-R | IC REG LINEAR 1.8V 800MA PPAK | |
| LF18CPT-TR | IC REG LINEAR 1.8V 500MA PPAK | |
| LD29080PT33R | IC REG LINEAR 3.3V 800MA PPAK | |
| TPS78511QKVURQ1 | AUTOMOTIVE, 1-A, HIGH-ACCURACY, | |
| TPS78518QKVURQ1 | AUTOMOTIVE, 1-A, HIGH-ACCURACY, | |
| LF33CPT-TR | IC REG LINEAR 3.3V 500MA PPAK | |
| TPS78512QKVURQ1 | AUTOMOTIVE, 1-A, HIGH-ACCURACY, | |
| LD39300PT25-R | IC REG LINEAR 2.5V 3A PPAK | |
| LD49150PT12R | IC REG LINEAR 1.2V 1.5A PPAK | |
| TPS7B8633QKVURQ1 | AUTOMOTIVE 500-MA, 40-V, ULTRA-L | |
| TPS7B8601QKVURQ1 | AUTOMOTIVE 500-MA, 40-V, ULTRA-L | |
| TPS7B8650QKVURQ1R2 | AUTOMOTIVE 500-MA, 40-V, ULTRA-L | |
| TPS7B8733QKVURQ1R2 | AUTOMOTIVE 500-MA, 40-V, LOW DRO | |
| TPS7B8733QKVURQ1 | AUTOMOTIVE 500-MA, 40-V, LOW DRO | |
| LDF25PT-TR | IC REG LINEAR 2.5V 1A PPAK | |
| LDF18PT-TR | IC REG LINEAR 1.8V 1A PPAK | |
| LDR2533BPT-R | IC REG LINEAR 2.5V/3.3V PPAK | |
| LDFMPT-TR | IC REG LINEAR POS ADJ 500MA PPAK | |
| TLE4275QKVURQ1 | IC REG LINEAR 5V 450MA TO252-5 | |
| TPS78510QKVURQ1 | AUTOMOTIVE, 1-A, HIGH-ACCURACY, | |
| TPS7B8750QKVURQ1 | AUTOMOTIVE 500-MA, 40-V, LOW DRO | |
| LF25CPT-TR | IC REG LINEAR 2.5V 500MA PPAK | |
| TPS78501QKVURQ1 | IC POWER | |
| L5300EPTTR | IC REG LINEAR 5V 300MA PPAK | |
| L5300RPTTR | IC REG LINEAR 5V 300MA PPAK | |
| LD29080PT15R | IC REG LINEAR 1.5V 800MA PPAK | |
| LD39080PT33-R | IC REG LINEAR 3.3V 800MA PPAK | |
| TPS7B8133QKVURQ1 | IC REG LINEAR 3.3V 150MA TO252-5 | |
| TPS7B8150QKVURQ1 | IC REG LINEAR 5V 150MA TO252-5 | |
| TPS7B8250QKVURQ1 | IC REG LINEAR 5V 300MA TO252-5 | |
| TPS7B8233QKVURQ1 | IC REG LINEAR 3.3V 300MA TO252-5 | |
| TL751M12QKVURQ1 | IC REG LINEAR 12V 750MA TO252-5 | |
| TL751M05QKVURQ1 | IC REG LINEAR 5V 750MA TO252-5 | |
| TL751M08QKVURQ1 | IC REG LINEAR 8V 750MA TO252-5 | |
| LD49300PT10R | IC REG LINEAR 1V 3A PPAK | |
| LD39300PT33-R | IC REG LINEAR 3.3V 3A PPAK | |
| LD49150PT08R | IC REG LINEAR POS ADJ 1.5A PPAK | |
| LD39150PT25-R | IC REG LINEAR 2.5V 1.5A PPAK | |
| LD29080PT50R | IC REG LINEAR 5V 800MA PPAK | |
| LD29080PT25R | IC REG LINEAR 2.5V 800MA PPAK | |
| L4931ABPT120R | IC REG LINEAR 12V 250MA PPAK | |
| L4931ABPT25TR | IC REG LINEAR 2.5V 250MA PPAK | |
| L4931ABPT33-TR | IC REG LINEAR 3.3V 250MA PPAK | |
| L4931ABPT50TR | IC REG LINEAR 5V 250MA PPAK | |
| LD29150PT25R | IC REG LINEAR 2.5V 1.5A PPAK | |
| LD29150PT33R | IC REG LINEAR 3.3V 1.5A PPAK | |
| ST2L05-1500PT | IC REG LIN POS ADJ 1A/1A PPAK | |
| ST2L05-1800PT | IC REG LIN POS ADJ 1A/1A PPAK | |
| ST2L05-1825PT | IC REG LIN 1.8V/2.5V 1A/1A PPAK | |
| ST2L05-2500PT | IC REG LIN POS ADJ 1A/1A PPAK | |
| ST2L05-3300PT | IC REG LIN POS ADJ 1A/1A PPAK | |
| ST2L05-3325PT | IC REG LIN 2.5V/3.3V 1A/1A PPAK | |
| ST2L01PTR | IC REG LIN POS ADJ 1A/1A PPAK | |
| ST2L05R1800PT | IC REG LIN POS ADJ 1A/1A PPAK | |
| ST2L05R1825PT | IC REG LIN 1.8V/2.5V 1A/1A PPAK | |
| ST2L05R2500PT | IC REG LIN POS ADJ 1A/1A PPAK | |
| LD29150PT18R | IC REG LINEAR 1.8V 1.5A PPAK | |
| L4931ABPT120 | IC REG LINEAR 12V 250MA PPAK | |
| L4931ABPT25 | IC REG LINEAR 2.5V 250MA PPAK | |
| L4931ABPT33 | IC REG LINEAR 3.3V 250MA PPAK | |
| L4931ABPT50 | IC REG LINEAR 5V 250MA PPAK | |
| L4931ABPT80 | IC REG LINEAR 8V 250MA PPAK | |
| L4931ABPT80TR | IC REG LINEAR 8V 250MA PPAK | |
| L4931CPT120 | IC REG LINEAR 12V 250MA PPAK | |
| L4931CPT120-TR | IC REG LINEAR 12V 250MA PPAK | |
| L4931CPT25 | IC REG LINEAR 2.5V 250MA PPAK | |
| L4931CPT25-TR | IC REG LINEAR 2.5V 250MA PPAK | |
| L4931CPT33 | IC REG LINEAR 3.3V 250MA PPAK | |
| L4931CPT33-TR | IC REG LINEAR 3.3V 250MA PPAK | |
| L4931CPT50 | IC REG LINEAR 5V 250MA PPAK | |
| L4931CPT50-TR | IC REG LINEAR 5V 250MA PPAK | |
| L4931CPT80-TR | IC REG LINEAR 8V 250MA PPAK | |
| L4987CPT120 | IC REG LINEAR 12V 200MA PPAK | |
| L4987CPT33 | IC REG LINEAR 3.3V 200MA PPAK | |
| L4987CPT33TR | IC REG LINEAR 3.3V 200MA PPAK | |
| L4987CPT50 | IC REG LINEAR 5V 200MA PPAK | |
| L4987CPT50TR | IC REG LINEAR 5V 200MA PPAK | |
| LD29080PT90R | IC REG LINEAR 9V 800MA PPAK | |
| LD29150PT | IC REG LINEAR POS ADJ 1.5A PPAK | |
| LD29150PT15 | IC REG LINEAR 1.5V 1.5A PPAK | |
| LD29150PT15R | IC REG LINEAR 1.5V 1.5A PPAK | |
| LD29150PT18 | IC REG LINEAR 1.8V 1.5A PPAK | |
| LD29150PT25 | IC REG LINEAR 2.5V 1.5A PPAK | |
| LD29150PT33 | IC REG LINEAR 3.3V 1.5A PPAK | |
| LD29150PT50 | IC REG LINEAR 5V 1.5A PPAK | |
| LD29150PT80 | IC REG LINEAR 8V 1.5A PPAK | |
| LD29150PT80R | IC REG LINEAR 8V 1.5A PPAK | |
| LDR1833PT | IC REG LINEAR 1.8V/3.3V PPAK | |
| LDR1833PT-R | IC REG LINEAR 1.8V/3.3V PPAK | |
| LDR2533PT-R | IC REG LINEAR 2.5V/3.3V PPAK | |
| LF120ABPT-TR | IC REG LINEAR 12V 500MA PPAK | |
| LF120CPT | IC REG LINEAR 12V 500MA PPAK | |
| LF120CPT-TR | IC REG LINEAR 12V 500MA PPAK | |
| LF18ABPT | IC REG LINEAR 1.8V 500MA PPAK | |
| LF18CPT | IC REG LINEAR 1.8V 500MA PPAK | |
| LF25ABPT-TR | IC REG LINEAR 2.5V 500MA PPAK | |
| LF25CPT | IC REG LINEAR 2.5V 500MA PPAK | |
| LF27CPT | IC REG LINEAR 2.7V 500MA PPAK | |
| LF30ABPT | IC REG LINEAR 3V 500MA PPAK | |
| LF30CPT | IC REG LINEAR 3V 500MA PPAK | |
| LF33ABPT | IC REG LINEAR 3.3V 500MA PPAK | |
| LF33ABPT-TR | IC REG LINEAR 3.3V 500MA PPAK | |
| LF33CPT | IC REG LINEAR 3.3V 500MA PPAK | |
| LF40CPT | IC REG LINEAR 4V 500MA PPAK | |
| LF50ABPT | IC REG LINEAR 5V 500MA PPAK | |
| LF50CPT | IC REG LINEAR 5V 500MA PPAK | |
| LF60CPT | IC REG LINEAR 6V 500MA PPAK | |
| LF80ABPT | IC REG LINEAR 8V 500MA PPAK | |
| LF80ABPT-TR | IC REG LINEAR 8V 500MA PPAK | |
| LF80CPT | IC REG LINEAR 8V 500MA PPAK | |
| LF80CPT-TR | IC REG LINEAR 8V 500MA PPAK | |
| LF85ABPT-TR | IC REG LINEAR 8.5V 500MA PPAK | |
| LF85CPT | IC REG LINEAR 8.5V 500MA PPAK | |
| LF90ABPT | IC REG LINEAR 9V 500MA PPAK | |
| LF90ABPT-TR | IC REG LINEAR 9V 500MA PPAK | |
| LF90CPT | IC REG LINEAR 9V 500MA PPAK | |
| ST1L04PT | IC REG LINEAR POS ADJ 1A PPAK | |
| LD39300PT-R | IC REG LINEAR POS ADJ 3A PPAK | |
| LD39080PT-R | IC REG LINEAR POS ADJ 800MA PPAK | |
| LD39150PT33-R | IC REG LINEAR 3.3V 1.5A PPAK | |
| LD39300PT18-R | IC REG LINEAR 1.8V 3A PPAK | |
| LD49300PT08R | IC REG LINEAR POS ADJ 3A PPAK | |
| ST1L04PT-R | IC REG LINEAR POS ADJ 1A PPAK | |
| LD49300PT12R | IC REG LINEAR 1.2V 3A PPAK | |
| LF33CPT-TRY | IC REG LINEAR 3.3V 500MA PPAK | |
| LF50CPT-TRY | IC REG LINEAR 5V 500MA PPAK | |
| LF85CPT-TRY | IC REG LINEAR 8.5V 500MA PPAK | |
| LDFM50PT-TR | IC REG LINEAR 5V 500MA PPAK | |
| LDFPT-TR | IC REG LINEAR POS ADJ 1A PPAK |
Product Description
Product Details
Description
The LD39150 is a fast ultra low drop linear regulator which operates from 2.5 V to 6 V input supply.A wide range of output options are available. The low drop voltage, low noise, and ultra low quiescent current make it suitable for low voltage microprocessor and memory applications. The device is developed on a BiCMOS process which allows low quiescent current operation independently of output load current.
Features
• 1.5 A guaranteed output current• Ultra low dropout voltage (200 mV typ. @ 1.5 A load, 40 mV typ. @ 300 mA load)
• Very low quiescent current (1 mA typ. @ 1.5 A load, 1 µA max @ 25 °C in off mode)
• Logic-controlled electronic shutdown
• Current and thermal internal limit
• ±1.5% output voltage tolerance @ 25 °C
• Fixed and ADJ output voltages: 1.8 V, 2.5 V, 3.3 V, ADJ
• Temperature range: -40 to 125 °C
• Fast dynamic response to line and load changes
• Stable with ceramic capacitor
• Available in PPAK, DPAK and DFN6 (3x3 mm)
Applications
• Microprocessor power supply• DSPs power supply
• Post regulators for switching suppliers
• High efficiency linear regulator
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Linear Voltage Regulators |
| Series | LD39150 |
| Packaging | Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | TO-252-5, DPak (4 Leads + Tab), TO-252AD |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Surface Mount |
| Output-Type | Adjustable |
| Supplier-Device-Package | PPAK |
| Voltage-Input | 2.5 V ~ 6 V |
| Number-of-Outputs | 1 Output |
| Current-Output | 1.5A |
| Voltage-Output | 1.22 V ~ 5 V |
| Regulator-Topology | Positive Adjustable |
| Voltage-Dropout-Typical | 0.2V @ 1.5A |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 1.22 V to 5 V |
| Input-Voltage-MAX | 6 V |
| Output-Current | 1.5 A |
| Input-Voltage-MIN | + 2.5 V |
| Load-Regulation | 0.06 % / A |
| Voltage-Regulation-Accuracy | 1.5 % |
| Package-Case | PPAK-5 |
| Ib-Input-Bias-Current | 1 mA |
| Quiescent-Current | 2.5 mA |
| Reference-Voltage | 1.22 V |
| Dropout-Voltage | 0.04 V at 300 mA |
| Dropout-Voltage-Max | 80 mV at 300 mA |
| Line-Regulation | 0.04 % |
Descriptions
Linear Voltage Regulator IC Positive Adjustable 1 Output 1.22 V ~ 5 V 1.5A PPAK
LDO Regulator Pos 1.22V to 5V 1.5A 5-Pin(4+Tab) PPAK T/R
LDO Voltage Regulators Bicmos Vltg Regulatr Ultra Lo Drop
