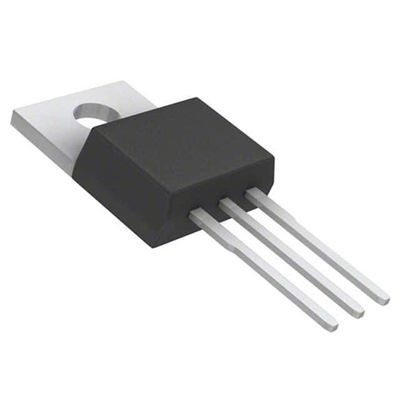

AS7805AT-E1 IC REG LINEAR 5V 1A TO220-3 Diodes Incorporated

  • AS7805AT-E1 IC REG LINEAR 5V 1A TO220-3 Diodes Incorporated
Brand Name Diodes Incorporated
Model Number AS7805AT-E1
Minimum Order Quantity 1
Price Based on current price
Packaging Details anti-static bag & cardboard box
Delivery Time 3-5 work days
Payment Terms T/T
Supply Ability In stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Configuration Positive Output Type Fixed
Number Of Regulators 1 Voltage - Input (Max) 25V
Voltage - Output (Min/Fixed) 5V Voltage - Output (Max) -
Voltage Dropout (Max) 2V @ 1A (Typ) Current - Output 1A
Current - Quiescent (Iq) 6 MA Current - Supply (Max) -
PSRR 70dB (120Hz) Control Features -
Protection Features Over Temperature, Short Circuit Operating Temperature -40°C ~ 125°C
Mounting Type Through Hole Package / Case TO-220-3
Supplier Device Package TO-220-3
