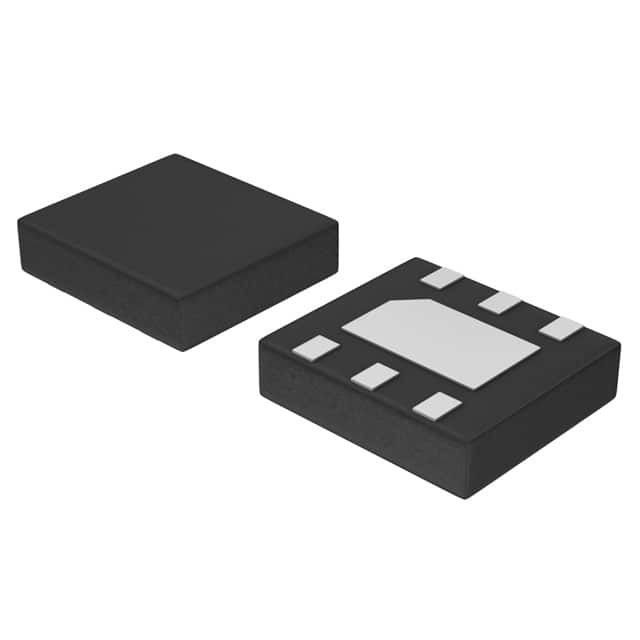

NCP692MN33T2G IC REG LINEAR 3.3V 1A 6DFN onsemi
| Brand Name | onsemi |
|---|---|
| Model Number | NCP692MN33T2G |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3.3V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.25V @ 1A | Current - Output | 1A |
| Current - Quiescent (Iq) | 200 µA | Current - Supply (Max) | 240 µA |
| PSRR | - | Control Features | Enable |
| Protection Features | Over Temperature, Short Circuit | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Package / Case | 6-VDFN Exposed Pad |
| Supplier Device Package | 6-DFN (3x3) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| NCP692MN33T2G | IC REG LINEAR 3.3V 1A 6DFN | |
| NCV8187AML180TAG | IC REG LINEAR 1.8V 1.2A 6DFNW | |
| NCP606MNADJT2G | IC REG LINEAR POS ADJ 500MA 6DFN | |
| NCP690MNADJT2G | IC REG LINEAR POS ADJ 1A 6DFN | |
| NCV8570BMN330R2G | IC REG LINEAR 3.3V 200MA 6DFN | |
| NCV8605MN33T2G | IC REG LINEAR 3.3V 500MA 6DFN | |
| NCV8560MN330R2G | IC REG LINEAR 3.3V 150MA 6DFN | |
| NCV5661MN15T2G | IC REG LINEAR 1.5V 1A 6DFN | |
| NCV8605MN18T2G | IC REG LINEAR 1.8V 500MA 6DFN | |
| NCV8187AMN180TAG | IC REG LINEAR 1.8V 1.2A 6DFN | |
| NCP605MN15T2G | IC REG LINEAR 1.5V 500MA 6DFN | |
| NCP605MN50T2G | IC REG LINEAR 5V 500MA 6DFN | |
| NCP692MN25T2G | IC REG LINEAR 2.5V 1A 6DFN | |
| NCV8187AML120TAG | IC REG LINEAR 1.2V 1.2A 6DFNW | |
| NCV8570BMN300R2G | IC REG LINEAR 3V 200MA 6DFN | |
| NCV8570BMN180R2G | IC REG LINEAR 1.8V 200MA 6DFN | |
| NCP605MN28T2G | IC REG LINEAR 2.8V 500MA 6DFN | |
| NCP606MN33T2G | IC REG LINEAR 3.3V 500MA 6DFN | |
| NCP606MN30T2G | IC REG LINEAR 3V 500MA 6DFN | |
| NCP691MN33T2G | IC REG LINEAR 3.3V 1A 6DFN | |
| NCV5661MN33T2G | IC REG LINEAR 3.3V 1A 6DFN | |
| NCV5661MN12T2G | IC REG LINEAR 1.2V 1A 6DFN | |
| NCP5661MN25T2G | IC REG LINEAR 2.5V 1A 6DFN | |
| NCV8605MNADJT2G | IC REG LINEAR POS ADJ 500MA 6DFN | |
| NCP623MN-50R2G | IC REG LINEAR 5V 150MA 6DFN | |
| NCP605MN18T2G | IC REG LINEAR 1.8V 500MA 6DFN | |
| NCP571MN12TBG | IC REG LINEAR 1.2V 150MA 6DFN | |
| NCP690MN33T2G | IC REG LINEAR 3.3V 1A 6DFN | |
| NCP606MN50T2G | IC REG LINEAR 5V 500MA 6DFN | |
| NCV5661MNADJT2G | IC REG LINEAR POS ADJ 1A 6DFN | |
| NCV8187AMN120TAG | IC REG LINEAR 1.2V 1.2A 6DFN | |
| NCV8623MN-50R2G | IC REG LINEAR 5V 150MA 6DFN | |
| NCP690MN15T2G | IC REG LINEAR 1.5V 1A 6DFN | |
| NCV5661MN18T2G | IC REG LINEAR 1.8V 1A 6DFN | |
| NCV571MN09TBG | IC REG LINEAR 0.9V 150MA 6DFN | |
| NCV571MN10TBG | IC REG LINEAR 1V 150MA 6DFN | |
| NCV571MN12TBG | IC REG LINEAR 1.2V 150MA 6DFN | |
| NCP571MN08TBG | IC REG LINEAR 0.8V 150MA 6DFN | |
| NCP623MN-28R2G | IC REG LINEAR 2.8V 150MA 6DFN | |
| NCP623MN-25R2G | IC REG LINEAR 2.5V 150MA 6DFN | |
| NCV8623MN-33R2G | IC REG LINEAR 3.3V 150MA 6DFN | |
| NCV8623MN-28R2G | IC REG LINEAR 2.8V 150MA 6DFN | |
| NCP606MN28T2G | IC REG LINEAR 2.8V 500MA 6DFN | |
| NCP692MN15T2G | IC REG LINEAR 1.5V 1A 6DFN | |
| NCP691MN25T2G | IC REG LINEAR 2.5V 1A 6DFN | |
| NCV8570BMN280R2G | IC REG LINEAR 2.8V 200MA 6DFN | |
| NCV8570BMN250R2G | IC REG LINEAR 2.5V 200MA 6DFN | |
| NCV8690MN33T2G | IC REG LINEAR 3.3V 1A 6DFN | |
| NCV8560MN500R2G | IC REG LINEAR 5V 150MA 6DFN | |
| NCV8560MN150R2G | IC REG LINEAR 1.5V 150MA 6DFN | |
| NCV5661MN28T2G | IC REG LINEAR 2.8V 1A 6DFN | |
| NCV5661MN30T2G | IC REG LINEAR 3V 1A 6DFN | |
| NCP5661MN15T2G | IC REG LINEAR 1.5V 1A 6DFN | |
| NCP5661MN28T2G | IC REG LINEAR 2.8V 1A 6DFN | |
| NCP5661MN30T2G | IC REG LINEAR 3V 1A 6DFN | |
| NCV8605MN25T2G | IC REG LINEAR 2.5V 500MA 6DFN | |
| NCV8605MN28T2G | IC REG LINEAR 2.8V 500MA 6DFN | |
| NCV8605MN30T2G | IC REG LINEAR 3V 500MA 6DFN | |
| NCV8606MN15T2G | IC REG LINEAR 1.5V 500MA 6DFN | |
| NCV8606MN25T2G | IC REG LINEAR 2.5V 500MA 6DFN | |
| NCV8606MN30T2G | IC REG LINEAR 3V 500MA 6DFN | |
| NCV8606MN50T2G | IC REG LINEAR 5V 500MA 6DFN | |
| NCP692MN50T2G | IC REG LINEAR 5V 1A 6DFN | |
| NCP5661MNADJT2G | IC REG LINEAR POS ADJ 1A 6DFN | |
| NCV8606MN33T2G | IC REG LINEAR 3.3V 500MA 6DFN | |
| NCV8606MNADJT2G | IC REG LINEAR POS ADJ 500MA 6DFN | |
| NCP500SQL25T1 | IC REG LINEAR 2.5V 150MA 6DFN | |
| NCP500SQL18T1 | IC REG LINEAR 1.8V 150MA 6DFN | |
| NCP500SQL27T1 | IC REG LINEAR 2.7V 150MA 6DFN | |
| NCP500SQL33T1 | IC REG LINEAR 3.3V 150MA 6DFN | |
| NCP500SQL50T1 | IC REG LINEAR 5V 150MA 6DFN | |
| NCP500SQL28T1 | IC REG LINEAR 2.8V 150MA 6DFN | |
| NCP500SQL30T1 | IC REG LINEAR 3V 150MA 6DFN | |
| NCP500SQL18T1G | IC REG LINEAR 1.8V 150MA 6DFN | |
| NCP500SQL25T1G | IC REG LINEAR 2.5V 150MA 6DFN | |
| NCP500SQL27T1G | IC REG LINEAR 2.7V 150MA 6DFN | |
| NCP500SQL28T1G | IC REG LINEAR 2.8V 150MA 6DFN | |
| NCP500SQL30T1G | IC REG LINEAR 3V 150MA 6DFN | |
| NCP500SQL50T1G | IC REG LINEAR 5V 150MA 6DFN | |
| NCP623MN-33R2 | IC REG LINEAR 3.3V 150MA 6DFN | |
| NCP623MN-50R2 | IC REG LINEAR 5V 150MA 6DFN | |
| NCP700MN180R2G | IC REG LINEAR 1.8V 200MA 6DFN | |
| NCP700MN280R2G | IC REG LINEAR 2.8V 200MA 6DFN | |
| NCP565MN30T2G | IC REG LINEAR 3V 1.5A 6DFN | |
| NCP600MN130R2G | IC REG LINEAR 1.3V 150MA 6DFN | |
| NCP605MN25T2G | IC REG LINEAR 2.5V 500MA 6DFN | |
| NCP605MN30T2G | IC REG LINEAR 3V 500MA 6DFN | |
| NCP623MN-30R2G | IC REG LINEAR 3V 150MA 6DFN | |
| NCP700MN250R2G | IC REG LINEAR 2.5V 200MA 6DFN | |
| NCP700MN275R2G | IC REG LINEAR 2.75V 200MA 6DFN | |
| NCP700MN330R2G | IC REG LINEAR 3.3V 200MA 6DFN | |
| NCV8560MN180R2G | IC REG LINEAR 1.8V 150MA 6DFN | |
| NCV8560MN250R2G | IC REG LINEAR 2.5V 150MA 6DFN | |
| NCV8560MN280R2G | IC REG LINEAR 2.8V 150MA 6DFN | |
| NCV8560MN300R2G | IC REG LINEAR 3V 150MA 6DFN | |
| NCV8560MN350R2G | IC REG LINEAR 3.5V 150MA 6DFN | |
| NCP606MN15T2G | IC REG LINEAR 1.5V 500MA 6DFN | |
| NCV5661MN25T2G | IC REG LINEAR 2.5V 1A 6DFN | |
| NCV8570MN180R2G | IC REG LINEAR 1.8V 200MA 6DFN | |
| NCV8570MN250R2G | IC REG LINEAR 2.5V 200MA 6DFN | |
| NCV8570MN275R2G | IC REG LINEAR 2.75V 200MA 6DFN | |
| NCV8570MN280R2G | IC REG LINEAR 2.8V 200MA 6DFN | |
| NCV8570MN300R2G | IC REG LINEAR 3V 200MA 6DFN | |
| NCV8570MN330R2G | IC REG LINEAR 3.3V 200MA 6DFN | |
| NCP565MN12T2G | IC REG LINEAR 1.2V 1.5A 6DFN | |
| NCP565MN15T2G | IC REG LINEAR 1.5V 1.5A 6DFN | |
| NCP565MN28T2G | IC REG LINEAR 2.8V 1.5A 6DFN | |
| NCP565MN33T2G | IC REG LINEAR 3.3V 1.5A 6DFN | |
| NCP565MNADJT2G | IC REG LINEAR POS ADJ 1.5A 6DFN | |
| NCP5661MN12T2G | IC REG LINEAR 1.2V 1A 6DFN | |
| NCP5661MN18T2G | IC REG LINEAR 1.8V 1A 6DFN | |
| NCP5661MN33T2G | IC REG LINEAR 3.3V 1A 6DFN | |
| NCP700MN300R2G | IC REG LINEAR 3V 200MA 6DFN | |
| NCP690MN25T2G | IC REG LINEAR 2.5V 1A 6DFN | |
| NCP690MN18T2G | IC REG LINEAR 1.8V 1A 6DFN | |
| NCP691MN50T2G | IC REG LINEAR 5V 1A 6DFN | |
| NCP690MN50T2G | IC REG LINEAR 5V 1A 6DFN | |
| NCP691MN15T2G | IC REG LINEAR 1.5V 1A 6DFN | |
| NCP691MN18T2G | IC REG LINEAR 1.8V 1A 6DFN | |
| NCP571MN09TBG | IC REG LINEAR 0.9V 150MA 6DFN | |
| NCP571MN10TBG | IC REG LINEAR 1V 150MA 6DFN | |
| NCV571MN08TBG | IC REG LINEAR 0.8V 150MA 6DFN | |
| NCV8605MN15T2G | IC REG LINEAR 1.5V 500MA 6DFN | |
| NCV8605MN50T2G | IC REG LINEAR 5V 500MA 6DFN | |
| NCV8606MN18T2G | IC REG LINEAR 1.8V 500MA 6DFN | |
| NCV8606MN28T2G | IC REG LINEAR 2.8V 500MA 6DFN | |
| NCP692MNADJT2G | IC REG LINEAR POS ADJ 1A 6DFN | |
| NCP623MN-33R2G | IC REG LINEAR 3.3V 150MA 6DFN | |
| NCP606MN18T2G | IC REG LINEAR 1.8V 500MA 6DFN | |
| NCV8623MN-25R2G | IC REG LINEAR 2.5V 150MA 6DFN | |
| NCV8623MN-30R2G | IC REG LINEAR 3V 150MA 6DFN | |
| NCV8623MN-40R2G | IC REG LINEAR 4V 150MA 6DFN | |
| NCP500SQL33T1G | IC REG LINEAR 3.3V 150MA 6DFN | |
| NCP605MN33T2G | IC REG LINEAR 3.3V 500MA 6DFN | |
| NCP605MNADJT2G | IC REG LINEAR POS ADJ 500MA 6DFN | |
| NCP606MN25T2G | IC REG LINEAR 2.5V 500MA 6DFN | |
| NCP691MNADJT2G | IC REG LINEAR POS ADJ 1A 6DFN | |
| NCP692MN18T2G | IC REG LINEAR 1.8V 1A 6DFN | |
| NCV8560MNADJR2G | IC REG LINEAR POS ADJ 150MA 6DFN |
Product Description
Product Details
1 A, Low IGND, Very Low Dropout Regulator (VLDO) with/without Enable
The NCP690, NCP691, NCP692 CMOS LDO family provides 1 A of output current with enhanced ESD in either fixed voltage options or an adjustable output voltage from 5.0 V down to 1.25 V. This device is designed for space constrained and portable battery powered applications and offer additional features such as high PSRR, low Quiescent and Ground current consumption, low noise operation, short circuit and thermal protection. The device is designed to be used with low cost ceramic capacitors and is packaged in the 6−Lead DFN3x3 package.
Features
• Output Voltage Options: Adjustable, 1.5 V, 1.8 V, 2.5 V, 3.3 V, 5.0 V– Other Options Possible
• Adjustable Output by External Resistors from 5.0 V down to 1.25 V
• Guaranteed 1 A Output Current
• ±1.5% Output Voltage Tolerance over All Operating Conditions (Adjustable)
• ±2% Output Voltage Tolerance over All Operating Conditions (Fixed)
• Typical Noise Voltage of 50 Vrms without a Bypass Capacitor
• Typical Dropout Voltage of 190 mV at 1 A (Vout = 2.5 V, TJ = 25°C)
• Active Output Discharge
• Active Low Enable Pin (NCP691 Device)
• Active High Enable Pin (NCP692 device)
• Enhanced ESD: 4 kV and 400 V
Applications
• Laptops and PCI Cards• Modem Banks and Telecom Boards
• DSP, FPGA, Microprocessor Boards
• Portable, Battery−Power Applications
• Hard Disk Drives
• These are Pb−Free Devices
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | onsemi |
| Product Category | Linear Voltage Regulators |
| Series | NCP692 |
| Product | LDO Regulators |
| Type | Very Low Drop Voltage Regulator |
| Packaging | Tape & Reel (TR) |
| Unit-Weight | 0.000744 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 6-VDFN Exposed Pad |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Output-Type | Fixed |
| Supplier-Device-Package | 6-DFN (3x3) |
| Voltage-Input | Up to 6V |
| Number-of-Outputs | 1 Output |
| Current-Output | 1A |
| Voltage-Output | 3.3V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 0.18V @ 1A |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | 1.1A |
| Maximum Operating Temperature | + 150 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 3.3 V |
| Input-Voltage-MAX | 6 V |
| Output-Current | 1 A |
| Input-Voltage-MIN | 1.5 V |
| Load-Regulation | 35 mV |
| Package-Case | DFN-6 |
| Dropout-Voltage | 250 mV |
| Dropout-Voltage-Max | 250 mV |
| Line-Regulation | 8 mV |
| Power Supply Ripple Rejection (PSRR) | 62 dB |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 1A 6-DFN (3x3)
LDO Regulator Pos 3.3V 1A 6-Pin DFN EP T/R
