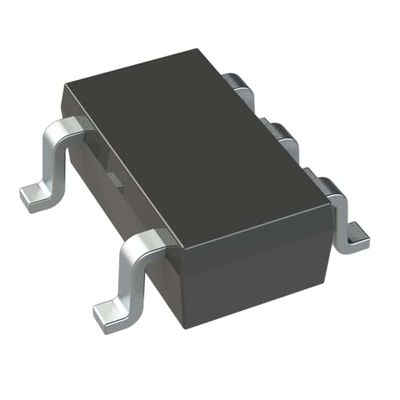

AP2127K-1.8TRG1 IC REG LINEAR 1.8V 300MA SOT23-5 Diodes Incorporated
| Brand Name | Diodes Incorporated |
|---|---|
| Model Number | AP2127K-1.8TRG1 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.8V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.7V @ 300mA | Current - Output | 300mA |
| Current - Quiescent (Iq) | 90 µA | Current - Supply (Max) | - |
| PSRR | 68dB ~ 54dB (100Hz ~ 10kHz) | Control Features | - |
| Protection Features | Over Current, Over Temperature | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| AP2127K-1.8TRG1 | IC REG LINEAR 1.8V 300MA SOT23-5 | |
| AP2127K-ADJTRG1 | IC REG LIN POS ADJ 300MA SOT23-5 | |
| AP2210K-3.3TRG1 | IC REG LINEAR 3.3V 300MA SOT23-5 | |
| AP2139AK-3.3TRG1 | IC REG LINEAR 3.3V 250MA SOT23-5 | |
| AP2204K-3.3TRG1 | IC REG LINEAR 3.3V 150MA SOT23-5 | |
| AP2204K-ADJTRG1 | IC REG LIN POS ADJ 150MA SOT23-5 | |
| ZXCL330E5TA | IC REG LINEAR 3.3V 150MA SOT23-5 | |
| AP2127K-2.8TRG1 | IC REG LINEAR 2.8V 300MA SOT23-5 | |
| AP2128K-3.3TRG1 | IC REG LINEAR 3.3V 300MA SOT23-5 | |
| AP2121AK-3.3TRG1 | IC REG LINEAR 3.3V 200MA SOT23-5 | |
| AP2127K-3.3TRG1 | IC REG LINEAR 3.3V 300MA SOT23-5 | |
| AP2125K-3.3TRG1 | IC REG LINEAR 3.3V 300MA SOT23-5 | |
| AP2127K-1.2TRG1 | IC REG LINEAR 1.2V 300MA SOT23-5 | |
| AP2202K-3.3TRG1 | IC REG LINEAR 3.3V 150MA SOT23-5 | |
| AP2202K-ADJTRG1 | IC REG LIN POS ADJ 150MA SOT23-5 | |
| AP2139AK-3.0TRG1 | IC REG LINEAR 3V 250MA SOT23-5 | |
| AP2210K-5.0TRG1 | IC REG LINEAR 5V 300MA SOT23-5 | |
| AP2204K-3.0TRG1 | IC REG LINEAR 3V 150MA SOT23-5 | |
| AP2210K-ADJTRG1 | IC REG LIN POS ADJ 300MA SOT23-5 | |
| AP2121AK-3.3TRE1 | IC REG LINEAR 3.3V 200MA SOT23-5 | |
| AP2125K-2.8TRG1 | IC REG LINEAR 2.8V 300MA SOT23-5 | |
| AP2125K-3.0TRG1 | IC REG LINEAR 3V 300MA SOT23-5 | |
| AP2210K-3.0TRG1 | IC REG LINEAR 3V 300MA SOT23-5 | |
| AP2126K-ADJTRG1 | IC REG LIN POS ADJ 300MA SOT23-5 | |
| AP2127K-3.0TRG1 | IC REG LINEAR 3V 300MA SOT23-5 | |
| AP2121AK-3.0TRG1 | IC REG LINEAR 3V 200MA SOT23-5 | |
| AP2127K-4.75TRG1 | IC REG LIN 4.75V 300MA SOT23-5 | |
| AP2127K-1.5TRG1 | IC REG LINEAR 1.5V 300MA SOT23-5 | |
| AP2204K-5.0TRG1 | IC REG LINEAR 5V 150MA SOT23-5 | |
| AP2210K-3.3TRE1 | IC REG LINEAR 3.3V 300MA SOT23-5 | |
| ZXCL260E5 | IC REG LINEAR 2.6V 150MA SOT23-5 | |
| AP2121AK-2.5TRG1 | IC REG LINEAR 2.5V 200MA SOT23-5 | |
| AP2139AK-1.5TRG1 | IC REG LINEAR 1.5V 250MA SOT23-5 | |
| AP2121AK-1.8TRG1 | IC REG LINEAR 1.8V 200MA SOT23-5 | |
| AP2204K-1.8TRG1 | IC REG LINEAR 1.8V 150MA SOT23-5 | |
| AP2125K-2.5TRG1 | IC REG LINEAR 2.5V 300MA SOT23-5 | |
| AP2121AK-2.5TRE1 | IC REG LINEAR 2.5V 200MA SOT23-5 | |
| AP2139AK-2.5TRG1 | IC REG LINEAR 2.5V 250MA SOT23-5 | |
| AP2210K-2.5TRE1 | IC REG LINEAR 2.5V 300MA SOT23-5 | |
| AP2125K-1.8TRG1 | IC REG LINEAR 1.8V 300MA SOT23-5 | |
| AP2121AK-1.2TRG1 | IC REG LINEAR 1.2V 200MA SOT23-5 | |
| AP2121AK-1.5TRG1 | IC REG LINEAR 1.5V 200MA SOT23-5 | |
| AP2121AK-2.8TRG1 | IC REG LINEAR 2.8V 200MA SOT23-5 | |
| AP2139AK-1.2TRG1 | IC REG LINEAR 1.2V 250MA SOT23-5 | |
| AP2139AK-1.4TRG1 | IC REG LINEAR 1.4V 250MA SOT23-5 | |
| AP2139AK-1.8TRG1 | IC REG LINEAR 1.8V 250MA SOT23-5 | |
| AP2139AK-2.8TRG1 | IC REG LINEAR 2.8V 250MA SOT23-5 | |
| AP2127K-1.0TRG1 | IC REG LINEAR 1V 300MA SOT23-5 | |
| AP2121AK-1.3TRE1 | IC REG LINEAR 1.3V 200MA SOT23-5 | |
| AP2121AK-1.3TRG1 | IC REG LINEAR 1.3V 200MA SOT23-5 | |
| AP2121AK-3.2TRE1 | IC REG LINEAR 3.2V 200MA SOT23-5 | |
| AP2121AK-3.2TRG1 | IC REG LINEAR 3.2V 200MA SOT23-5 | |
| AP2125K-4.2TRG1 | IC REG LINEAR 4.2V 300MA SOT23-5 | |
| AP2127K-4.2TRG1 | IC REG LINEAR 4.2V 300MA SOT23-5 | |
| AP2128K-1.0TRG1 | IC REG LINEAR 1V 300MA SOT23-5 | |
| AP2128K-1.2TRG1 | IC REG LINEAR 1.2V 300MA SOT23-5 | |
| AP2128K-1.5TRG1 | IC REG LINEAR 1.5V 300MA SOT23-5 | |
| AP2128K-1.8TRG1 | IC REG LINEAR 1.8V 300MA SOT23-5 | |
| AP2128K-2.5TRG1 | IC REG LINEAR 2.5V 300MA SOT23-5 | |
| AP2128K-2.8TRG1 | IC REG LINEAR 2.8V 300MA SOT23-5 | |
| AP2128K-3.0TRG1 | IC REG LINEAR 3V 300MA SOT23-5 | |
| AP2128K-3.9TRG1 | IC REG LINEAR 3.9V 300MA SOT23-5 | |
| AP2128K-4.2TRG1 | IC REG LINEAR 4.2V 300MA SOT23-5 | |
| AP2128K-4.75TRG1 | IC REG LIN 4.75V 300MA SOT23-5 | |
| AP2128K-5.2TRG1 | IC REG LINEAR 5.2V 300MA SOT23-5 | |
| AP2127K-2.5TRG1 | IC REG LINEAR 2.5V 300MA SOT23-5 | |
| AP2129K-1.0TRG1 | IC REG LINEAR 1V 300MA SOT23-5 | |
| AP2129K-1.2TRG1 | IC REG LINEAR 1.2V 300MA SOT23-5 | |
| AP2129K-3.3TRG1 | IC REG LINEAR 3.3V 300MA SOT23-5 | |
| AP2129K-ADJTRG1 | IC REG LIN POS ADJ 300MA SOT23-5 | |
| AP2202K-2.5TRE1 | IC REG LINEAR 2.5V 150MA SOT23-5 | |
| AP2202K-2.5TRG1 | IC REG LINEAR 2.5V 150MA SOT23-5 | |
| AP2202K-2.6TRE1 | IC REG LINEAR 2.6V 150MA SOT23-5 | |
| AP2202K-2.8TRE1 | IC REG LINEAR 2.8V 150MA SOT23-5 | |
| AP2202K-3.0TRE1 | IC REG LINEAR 3V 150MA SOT23-5 | |
| AP2202K-3.3TRE1 | IC REG LINEAR 3.3V 150MA SOT23-5 | |
| AP2202K-5.0TRG1 | IC REG LINEAR 5V 150MA SOT23-5 | |
| AP2210K-2.5TRG1 | IC REG LINEAR 2.5V 300MA SOT23-5 | |
| AP2210K-2.8TRE1 | IC REG LINEAR 2.8V 300MA SOT23-5 | |
| AP2210K-2.8TRG1 | IC REG LINEAR 2.8V 300MA SOT23-5 | |
| AP2210K-3.0TRE1 | IC REG LINEAR 3V 300MA SOT23-5 | |
| AP2122AK-1.5TRE1 | IC REG LINEAR 1.5V 150MA SOT23-5 | |
| AP2122AK-1.8TRE1 | IC REG LINEAR 1.8V 150MA SOT23-5 | |
| AP2122AK-2.5TRE1 | IC REG LINEAR 2.5V 150MA SOT23-5 | |
| AP2122AK-2.8TRE1 | IC REG LINEAR 2.8V 150MA SOT23-5 | |
| AP2122AK-3.0TRE1 | IC REG LINEAR 3V 150MA SOT23-5 | |
| AP2122AK-3.0TRG1 | IC REG LINEAR 3V 150MA SOT23-5 | |
| AP2122AK-3.2TRE1 | IC REG LINEAR 3.2V 150MA SOT23-5 | |
| AP2122AK-3.3TRE1 | IC REG LINEAR 3.3V 150MA SOT23-5 | |
| AP2122AK-3.3TRG1 | IC REG LINEAR 3.3V 150MA SOT23-5 | |
| AP2204K-2.5TRG1 | IC REG LINEAR 2.5V 150MA SOT23-5 | |
| AP2204K-1.5TRG1 | IC REG LINEAR 1.5V 150MA SOT23-5 | |
| AP2204K-2.8TRG1 | IC REG LINEAR 2.8V 150MA SOT23-5 | |
| AP2121AK-1.5TRE1 | IC REG LINEAR 1.5V 200MA SOT23-5 | |
| AP2121AK-1.8TRE1 | IC REG LINEAR 1.8V 200MA SOT23-5 | |
| AP2121AK-2.8TRE1 | IC REG LINEAR 2.8V 200MA SOT23-5 | |
| AP2121AK-3.0TRE1 | IC REG LINEAR 3V 200MA SOT23-5 | |
| AP2121AK-1.2TRE1 | IC REG LINEAR 1.2V 200MA SOT23-5 | |
| AP2202K-ADJTRE1 | IC REG LIN POS ADJ 150MA SOT23-5 | |
| ZXCL280E5TA | IC REG LINEAR 2.8V 150MA SOT23-5 | |
| ZXCL300E5TA | IC REG LINEAR 3V 150MA SOT23-5 | |
| ZXCL400E5TA | IC REG LINEAR 4V 150MA SOT23-5 | |
| PAM3101DAB250 | IC REG LINEAR 2.5V 300MA SOT23-5 | |
| PAM3101DAB330 | IC REG LINEAR 3.3V 300MA SOT23-5 | |
| PAM3103AABADJ | IC REG LIN POS ADJ 300MA SOT23-5 | |
| LX8213-00ISE-TR | IC REG LIN POS ADJ 300MA SOT23-5 | |
| ZXCL260E5TA | IC REG LINEAR 2.6V 150MA SOT23-5 | |
| PAM3101DAB280 | IC REG LINEAR 2.8V 300MA SOT23-5 | |
| AP2121AK-3.3TRG1-1 | IC REG LINEAR 3.3V 200MA SOT23-5 | |
| AP2125K-1.8TRE1 | IC REG LINEAR 1.8V 300MA SOT23-5 | |
| AP2125K-2.5TRE1 | IC REG LINEAR 2.5V 300MA SOT23-5 | |
| AP2125K-2.8TRE1 | IC REG LINEAR 2.8V 300MA SOT23-5 | |
| AP2125K-3.0TRE1 | IC REG LINEAR 3V 300MA SOT23-5 | |
| AP2125K-3.3TRE1 | IC REG LINEAR 3.3V 300MA SOT23-5 | |
| AP2125K-4.2TRE1 | IC REG LINEAR 4.2V 300MA SOT23-5 | |
| LX8213-33ISE-TR | IC REG LINEAR 3.3V 300MA SOT23-5 | |
| SP6260BEK-L/TR | IC REG LINEAR 1.8V 200MA SOT23-5 | |
| SP6260CEK-L/TR | IC REG LINEAR 2.5V 200MA SOT23-5 | |
| SP6260EEK-L/TR | IC REG LINEAR 3V 200MA SOT23-5 | |
| SP6260GEK-L/TR | IC REG LINEAR 3.3V 200MA SOT23-5 | |
| PT7M8202B12TA5EX | IC REG LINEAR 1.2V 300MA SOT23-5 | |
| PT7M8202B30TA5EX | IC REG LINEAR 3V 300MA SOT23-5 | |
| PT7M8202B12TA5E | IC REG LINEAR 1.2V 300MA SOT23-5 | |
| PT7M8202B30TA5E | IC REG LINEAR 3V 300MA SOT23-5 | |
| ZXCL250E5TA | IC REG LINEAR 2.5V 100MA SOT23-5 | |
| PAM3101BAB180 | IC REG LINEAR 1.8V 300MA SOT23-5 | |
| PAM3101BAB200 | IC REG LINEAR 2V 300MA SOT23-5 | |
| PAM3101BAB250 | IC REG LINEAR 2.5V 300MA SOT23-5 | |
| PAM3101BAB300 | IC REG LINEAR 3V 300MA SOT23-5 | |
| PAM3101BAB330 | IC REG LINEAR 3.3V 300MA SOT23-5 | |
| PAM3101DAB150 | IC REG LINEAR 1.5V 300MA SOT23-5 | |
| PAM3101DAB180 | IC REG LINEAR 1.8V 300MA SOT23-5 | |
| PAM3101DAB285 | IC REG LIN 2.85V 300MA SOT23-5 | |
| PAM3101DAB290 | IC REG LINEAR 2.9V 300MA SOT23-5 | |
| PAM3101DAB300 | IC REG LINEAR 3V 300MA SOT23-5 | |
| PAM3101DAB310 | IC REG LINEAR 3.1V 300MA SOT23-5 | |
| PAM3101DAB400 | IC REG LINEAR 4V 300MA SOT23-5 | |
| PAM3101DAB475 | IC REG LIN 4.75V 300MA SOT23-5 |
Product Description
Product Details
General Description
The AP2127 Series are positive voltage regulator ICs fabricated by CMOS process.The AP2127 Series have features of low dropout voltage, low noise, high output voltage accuracy, and low current consumption which make them ideal for use in various battery-powered devices.
AP2127 has 1.0V, 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 4.2V, 4.75V, 5.2V fixed voltage versions and 0.8V to 5.5V adjustable voltage versions.
AP2127 series are available in SOT-23-5 Package.
Features
· Wide Operating Voltage: 2.5V to 6V· High Output Voltage Accuracy: ±2%
· High Ripple Rejection:
68dB@ f=1kHz, 54dB@ f=10kHz
· Low Standby Current: 0.1µA
· Low Dropout Voltage: 170mV@300mA for
VOUT=3.3V, 140mV@300mA for VOUT=5.2V
· Low Quiescent Current: 60µA Typical
· Low Output Noise: 60µVrms@VOUT=0.8V
· Short Current Limit: 50mA
· Over Temperature Protection
· Compatible with Low ESR Ceramic Capacitor:
1µF for CIN and COUT
· Excellent Line/Load Regulation
· Soft Start Time: 50µs
· Auto Discharge Resistance: RDS(ON)=60Ω
Applications
· Datacom· Notebook Computers
· Mother Board
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | Linear Voltage Regulators |
| Series | AP2127K |
| Product | Positive LDO Voltage Regulator |
| Type | Positive LDO Voltage Regulator |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.001058 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | SC-74A, SOT-753 |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Output-Type | Fixed |
| Supplier-Device-Package | SOT-23-5 |
| Voltage-Input | 2.5 V ~ 6 V |
| Number-of-Outputs | 1 Output |
| Current-Output | 300mA |
| Voltage-Output | 1.8V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 0.6V @ 300mA |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 1.8 V |
| Input-Voltage-MAX | 6.5 V |
| Output-Current | 400 mA |
| Input-Voltage-MIN | 2.5 V |
| Load-Regulation | 4 mV |
| Voltage-Regulation-Accuracy | 2 % |
| Package-Case | SOT-23-5 |
| Reference-Voltage | 0.8 V |
| Dropout-Voltage-Max | 700 mV |
| Line-Regulation | 0.5 mV |
| Power Supply Ripple Rejection (PSRR) | 68 dB |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| PAM3101DAB180 Power Circuits |
Fixed Positive LDO Regulator, 1.8V, CMOS, PDSO5, | Diodes Incorporated | AP2127K-1.8TRG1 vs PAM3101DAB180 |
| AP2127K-1.8TRG1 Power Circuits |
Fixed Positive LDO Regulator, 1.8V, 0.7V Dropout, CMOS, PDSO5, SOT-23, 5 PIN | Diodes Incorporated | AP2127K-1.8TRG1 vs AP2127K-1.8TRG1 |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 1.8V 300mA SOT-23-5
LDO Regulator Pos 1.8V 0.4A 5-Pin SOT-23 T/R
LDO Voltage Regulators 300mA CMOS LDO 2.5V to 6V
Recommended Products
