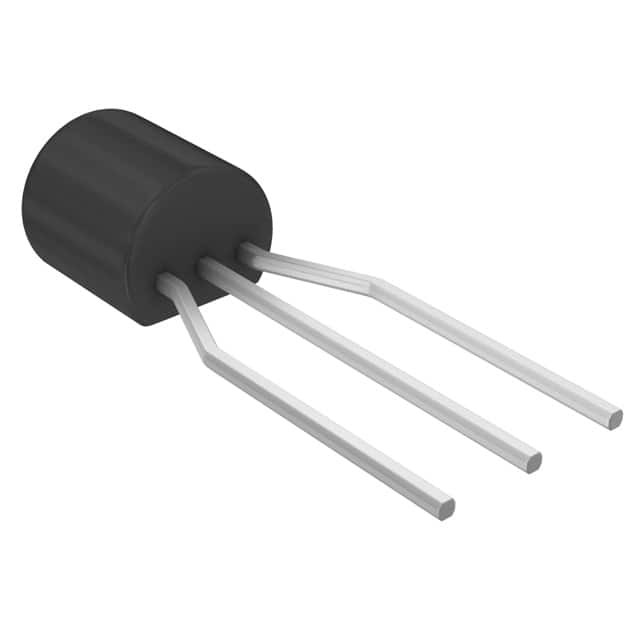

L78L05ACZ-AP IC REG LINEAR 5V 100MA TO92-3 STMicroelectronics
| Brand Name | STMicroelectronics |
|---|---|
| Model Number | L78L05ACZ-AP |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 5V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - | Current - Output | 100mA |
| Current - Quiescent (Iq) | 5.5 MA | Current - Supply (Max) | 6 MA |
| PSRR | 49dB (120Hz) | Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit | Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Through Hole | Package / Case | TO-226-3, TO-92-3 (TO-226AA) Formed Leads |
| Supplier Device Package | TO-92-3 |
You can tick the products you need and communicate with us in the message board.
