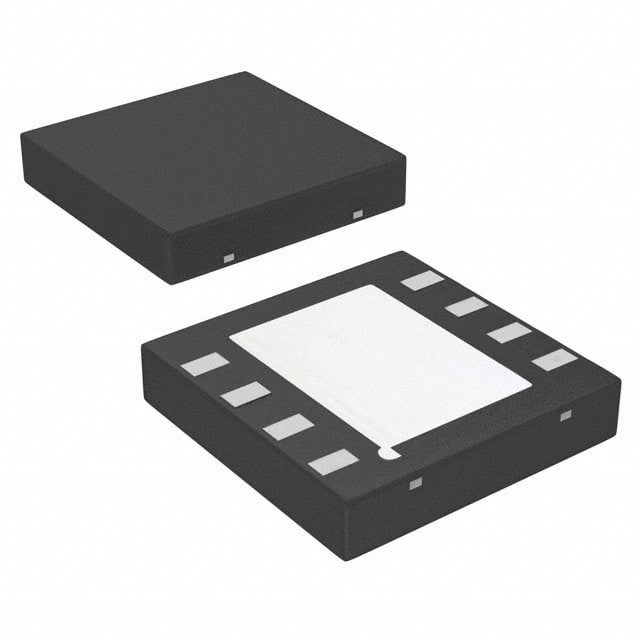

LM1117LD-3.3/NOPB IC REG LINEAR 3.3V 800MA 8WSON Texas Instruments
| Brand Name | Texas Instruments |
|---|---|
| Model Number | LM1117LD-3.3/NOPB |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | 3.3V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.2V @ 800mA | Current - Output | 800mA |
| Current - Quiescent (Iq) | 5 MA | Current - Supply (Max) | 10 MA |
| PSRR | 75dB (120Hz) | Control Features | - |
| Protection Features | Over Current, Over Temperature | Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-WSON (4x4) |
