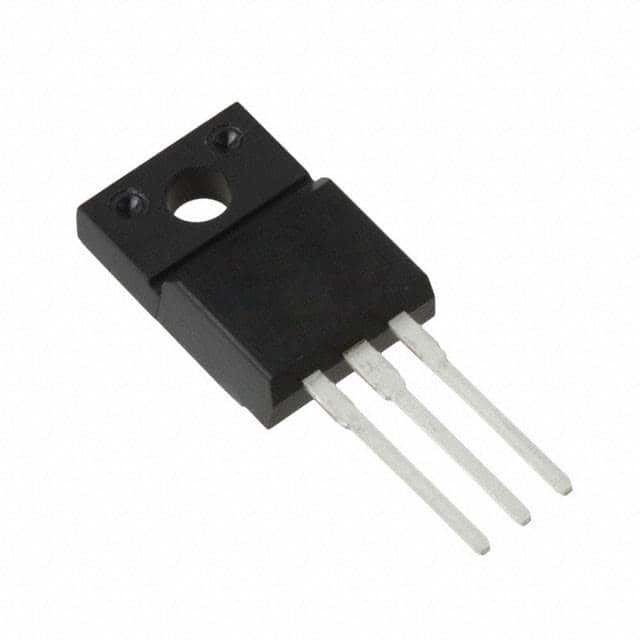

NJM7805FA IC REG LINEAR 5V 1.5A TO220F Nisshinbo Micro Devices Inc.
| Brand Name | Nisshinbo Micro Devices Inc. |
|---|---|
| Model Number | NJM7805FA |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 5V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - | Current - Output | 1.5A |
| Current - Quiescent (Iq) | 6 MA | Current - Supply (Max) | - |
| PSRR | 78dB (120Hz) | Control Features | - |
| Protection Features | Over Temperature, Short Circuit | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole | Package / Case | TO-220-3 Full Pack |
| Supplier Device Package | TO-220F |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| NJM7805FA | IC REG LINEAR 5V 1.5A TO220F | |
| NJM78M12FA | IC REG LINEAR 12V 500MA TO220F | |
| NJM7815FA | IC REG LINEAR 15V 1.5A TO220F | |
| NJM7824FA | IC REG LINEAR 24V 1.5A TO220F | |
| NJM7806FA | IC REG LINEAR 6V 1.5A TO220F | |
| NJM7808FA | IC REG LINEAR 8V 1.5A TO220F | |
| NJM78M05FA | IC REG LINEAR 5V 500MA TO220F | |
| NJM7820FA | IC REG LINEAR 20V 1.5A TO220F | |
| NJM7812FA | IC REG LINEAR 12V 1.5A TO220F | |
| L78M05CP | IC REG LINEAR 5V 500MA TO220FP | |
| BA178M24T | IC REG LINEAR 24V 500MA TO220FP | |
| BA09T | IC REG LINEAR 9V 1A TO220FP | |
| NJM78M06FA | IC REG LINEAR 6V 500MA TO220F | |
| NJM78M08FA | IC REG LINEAR 8V 500MA TO220F | |
| NJM78M09FA | IC REG LINEAR 9V 500MA TO220F | |
| NJM78M15FA | IC REG LINEAR 15V 500MA TO220F | |
| NJM78M18FA | IC REG LINEAR 18V 500MA TO220F | |
| NJM78M20FA | IC REG LINEAR 20V 500MA TO220F | |
| NJM78M24FA | IC REG LINEAR 24V 500MA TO220F | |
| NJM7818FA | IC REG LINEAR 18V 1.5A TO220F | |
| NJM7924FA | IC REG LINEAR -24V 1.5A TO220F | |
| NJU7223F18# | IC REG LINEAR 1.8V 500MA TO220F | |
| NJU7223F50 | IC REG LINEAR 5V 500MA TO220F | |
| NJM79M08FA | IC REG LINEAR -8V 500MA TO220F | |
| NJM79M18FA | IC REG LINEAR -18V 500MA TO220F | |
| NJM79M24FA | IC REG LINEAR -24V 500MA TO220F | |
| NJU7223F18 | IC REG LINEAR 1.8V 500MA TO220F | |
| NJM2930F85 | IC REG LINEAR 8.5V 150MA TO220F | |
| NJM2930F05 | IC REG LINEAR 5V 150MA TO220 | |
| NJM2930F85# | IC REG LINEAR 8.5V 150MA TO220F | |
| NJM317F | IC REG LIN POS ADJ 1.5A TO220F | |
| NJM7905FA | IC REG LINEAR -5V 1.5A TO220F | |
| NJM7906FA | IC REG LINEAR -6V 1.5A TO220F | |
| NJM7908FA | IC REG LINEAR -8V 1.5A TO220F | |
| NJM7909FA | IC REG LINEAR -9V 1.5A TO220F | |
| NJM7912FA | IC REG LINEAR -12V 1.5A TO220F | |
| NJM7915FA | IC REG LINEAR -15V 1.5A TO220F | |
| NJM7918FA | IC REG LINEAR -18V 1.5A TO220F | |
| NJM79M05FA | IC REG LINEAR -5V 500MA TO220F | |
| NJM79M06FA | IC REG LINEAR -6V 500MA TO220F | |
| NJM79M08FA# | IC REG LINEAR -8V 500MA TO220F | |
| NJM79M09FA | IC REG LINEAR -9V 500MA TO220F | |
| NJM79M12FA | IC REG LINEAR -12V 500MA TO220F | |
| NJM79M15FA | IC REG LINEAR -15V 500MA TO220F | |
| NJM79M18FA# | IC REG LINEAR -18V 500MA TO220F | |
| NJM79M24FA# | IC REG LINEAR -24V 500MA TO220F | |
| L7809CP | IC REG LINEAR 9V 1.5A TO220FP | |
| TA58L05S(FJTN,AQ) | IC REG LINEAR 5V 250MA TO220NIS | |
| TA58L05S(FJTN,QM) | IC REG LINEAR 5V 250MA TO220NIS | |
| TA58L05S(LS2DNS,AQ | IC REG LINEAR 5V 250MA TO220NIS | |
| TA58L05S(LS2PEV,AQ | IC REG LINEAR 5V 250MA TO220NIS | |
| TA58L05S(LS2YAZ,AQ | IC REG LINEAR 5V 250MA TO220NIS | |
| TA58L05S(SUMIS,AQ) | IC REG LINEAR 5V 250MA TO220NIS | |
| TA58L05S,ALPSAQ(J | IC REG LINEAR 5V 250MA TO220NIS | |
| TA58L05S,ALPSAQ(M | IC REG LINEAR 5V 250MA TO220NIS | |
| TA58L05S,APNQ(M | IC REG LINEAR 5V 250MA TO220NIS | |
| TA58L05S,ASHIQ(M | IC REG LINEAR 5V 250MA TO220NIS | |
| TA58L05S,COMTQ(M | IC REG LINEAR 5V 250MA TO220NIS | |
| TA58L05S,HY-ATQ(M | IC REG LINEAR 5V 250MA TO220NIS | |
| TA58L05S,L2SUMIQ(M | IC REG LINEAR 5V 250MA TO220NIS | |
| TA58L05S,LS2MTDQ(J | IC REG LINEAR 5V 250MA TO220NIS | |
| TA58L05S,LS2TOKQ(J | IC REG LINEAR 5V 250MA TO220NIS | |
| TA58L05S,LS4NSAQ(J | IC REG LINEAR 5V 250MA TO220NIS | |
| TA58L05S,Q(J | IC REG LINEAR 5V 250MA TO220NIS | |
| TA58L05S,SUMISQ(M | IC REG LINEAR 5V 250MA TO220NIS | |
| TA58L06S,HY-ATQ(M | IC REG LINEAR 6V 250MA TO220NIS | |
| TA58L06S,Q(J | IC REG LINEAR 6V 250MA TO220NIS | |
| TA58L06S,SUMISQ(M | IC REG LINEAR 6V 250MA TO220NIS | |
| TA58L08S(FJTN,AQ) | IC REG LINEAR 8V 250MA TO220NIS | |
| TA58L08S(FJTN,QM) | IC REG LINEAR 8V 250MA TO220NIS | |
| TA58L08S,Q(J | IC REG LINEAR 8V 250MA TO220NIS | |
| TA58L08S,SUMISQ(M | IC REG LINEAR 8V 250MA TO220NIS | |
| TA58L09S,LS2PAIQ(J | IC REG LINEAR 9V 250MA TO220NIS | |
| TA58L09S,LS2PAIQ(M | IC REG LINEAR 9V 250MA TO220NIS | |
| TA58L09S,Q(J | IC REG LINEAR 9V 250MA TO220NIS | |
| TA58L09S,Q(M | IC REG LINEAR 9V 250MA TO220NIS | |
| TA58L10S,Q(J | IC REG LINEAR 10V 250MA TO220NIS | |
| TA58L12S(FJTN,AQ) | IC REG LINEAR 12V 250MA TO220NIS | |
| TA58L12S(FJTN,QM) | IC REG LINEAR 12V 250MA TO220NIS | |
| TA58L12S,ASHIQ(J | IC REG LINEAR 12V 250MA TO220NIS | |
| TA58L12S,LS1TOKQ(J | IC REG LINEAR 12V 250MA TO220NIS | |
| TA58L12S,Q(J | IC REG LINEAR 12V 250MA TO220NIS | |
| TA58L12S,WNLQ(J | IC REG LINEAR 12V 250MA TO220NIS | |
| TA58L15S,Q(J | IC REG LINEAR 15V 250MA TO220NIS | |
| TA58M05S(AFT,LB180 | IC REG LINEAR 5V 500UA TO220NIS | |
| TA58M05S(BEF,LB180 | IC REG LINEAR 5V 500UA TO220NIS | |
| TA58M05S(LBS2PP,AQ | IC REG LINEAR 5V 500UA TO220NIS | |
| TA58M05S(YAZK,AQ) | IC REG LINEAR 5V 500UA TO220NIS | |
| TA58M05S(YNS,AQ) | IC REG LINEAR 5V 500UA TO220NIS | |
| TA58M05S,HOTIKIQ(M | IC REG LINEAR 5V 500UA TO220NIS | |
| TA58M05S,KDQ(M | IC REG LINEAR 5V 500UA TO220NIS | |
| TA58M05S,Q(J | IC REG LINEAR 5V 500UA TO220NIS | |
| TA58M05S,SUMISQ(M | IC REG LINEAR 5V 500UA TO220NIS | |
| TA58M06S,MTDQ(J | IC REG LINEAR 6V 500MA TO220NIS | |
| TA58M06S,MTDQ(M | IC REG LINEAR 6V 500MA TO220NIS | |
| TA58M06S,Q(J | IC REG LINEAR 6V 500MA TO220NIS | |
| TA58M06S,SUMISQ(M | IC REG LINEAR 6V 500MA TO220NIS | |
| TA58M08S(FJTN,AQ) | IC REG LINEAR 8V 500MA TO220NIS | |
| TA58M08S(FJTN,QM) | IC REG LINEAR 8V 500MA TO220NIS | |
| TA58M08S(LS2FJT,AQ | IC REG LINEAR 8V 500MA TO220NIS | |
| TA58M12S,Q(J | IC REG LINEAR 12V 500MA TO220NIS | |
| TA58M15S,Q(J | IC REG LINEAR 15V 500MA TO220NIS |
Product Description
Product Details
■ GENERAL DESCRIPTION
The NJM7800 series of monolithic 3-Terminal Positive Voltage Regulators is constructed using the New JRC Planar epitaxial process. These regulators employ internal current-limiting, thermal-shutdown and safe-area compensation making them essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. They are intended as fixed voltage regulators in a wide range of applications including local (on card) regulation for elimination of distribution problems associated with single point regulation. In addition to use as fixed voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents.
■ FEATURES
• Operating Voltage• Internal Short Circuit Current Limit
• Internal Thermal Overload Protection
• Excellent Ripple Rejection
• Guaranteed 1.5A Output Current
• Package Outline TO-220F, TO-252
• Bipolar Technology
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | New Japan Radio |
| Product Category | Linear Voltage Regulators |
| Series | NJM78 |
| Packaging | Bulk |
| Unit-Weight | 2300 g |
| Mounting-Style | Through Hole |
| Tradename | NJM7805 |
| Package-Case | TO-220-3 Full Pack |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Through Hole |
| Output-Type | Fixed |
| Supplier-Device-Package | TO-220F |
| Voltage-Input | Up to 35V |
| Number-of-Outputs | 1 Output |
| Current-Output | 1.5A |
| Voltage-Output | 5V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | - |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
| Pd-Power-Dissipation | 16000 mW |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Polarity | Positive |
| Output-Voltage | 5 V |
| Input-Voltage-MAX | 35 V |
| Output-Current | 1.5 A |
| Input-Voltage-MIN | 7 V |
| Load-Regulation | 50 mV |
| Line-Regulation | 50 mV |
| Power Supply Ripple Rejection (PSRR) | 78 dB |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| L7805 Power Circuits |
5V FIXED POSITIVE REGULATOR, MBFM2 | STMicroelectronics | NJM7805FA vs L7805 |
| LM340T-5.0/NOPB Power Circuits |
1.5A, Fixed Output Linear Regulator 3-TO-220 0 to 125 | Texas Instruments | NJM7805FA vs LM340T-5.0/NOPB |
| MC78M05ABDTRKG Power Circuits |
Linear Voltage Regulator, 500 mA, 5 to 24 V, High PSRR, Positive Vout: 5.0 V; TJ = -40? to +125?C, DPAK (SINGLE GAUGE) TO-252, 2500-REEL | ON Semiconductor | NJM7805FA vs MC78M05ABDTRKG |
| MC7805CD2TR4G Power Circuits |
Linear Voltage Regulator, 1 A, 5 to 24 V, Positive Vout: 5.0 V; TJ = 0°C to +125°C, 3 LEAD D2PAK, 800-REEL | ON Semiconductor | NJM7805FA vs MC7805CD2TR4G |
| L7808CV Power Circuits |
Positive voltage regulator ICs | STMicroelectronics | NJM7805FA vs L7808CV |
| MC78M12CDTG Power Circuits |
Linear Voltage Regulator, 500 mA, 5 to 24 V, High PSRR, Positive Vout: 12 V; TJ = 0° to +125°C, DPAK (SINGLE GAUGE) TO-252, 75-TUBE | ON Semiconductor | NJM7805FA vs MC78M12CDTG |
| MC78M05BDTRKG Power Circuits |
Linear Voltage Regulator, 500 mA, 5 to 24 V, High PSRR, Positive Vout: 5.0 V; TJ = -40? to +125?C, DPAK (SINGLE GAUGE) TO-252, 2500-REEL | ON Semiconductor | NJM7805FA vs MC78M05BDTRKG |
| LM7805CT/NOPB Power Circuits |
1.5-A, Wide VIN Fixed Voltage Regulators 3-TO-220 0 to 125 | Texas Instruments | NJM7805FA vs LM7805CT/NOPB |
| UA7805CKCS Power Circuits |
1.5-A, 40-V fixed positive linear regulator 3-TO-220 0 to 125 | Texas Instruments | NJM7805FA vs UA7805CKCS |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 5V 1.5A TO-220F
Linear Voltage Regulators 5V 1.5A 3 Terminal
