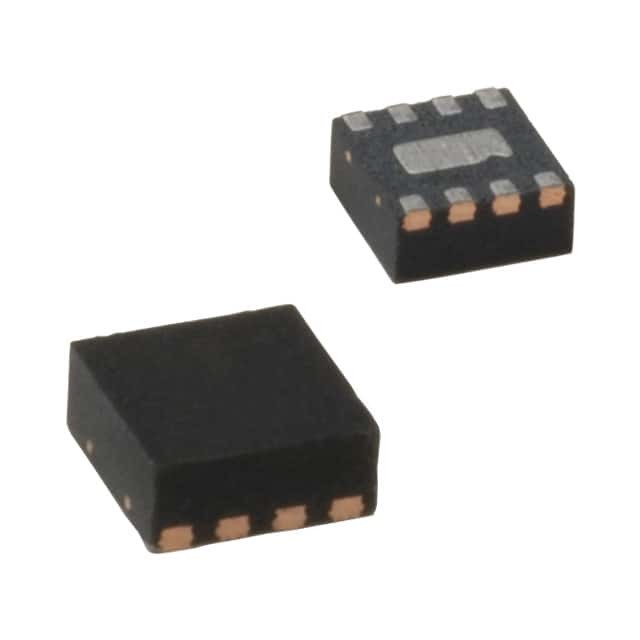

MIC5330-SSYML-TR IC REG LINEAR 3.3V/3.3V 8MLF Microchip Technology

  • MIC5330-SSYML-TR IC REG LINEAR 3.3V/3.3V 8MLF Microchip Technology
Brand Name Microchip Technology
Model Number MIC5330-SSYML-TR
Minimum Order Quantity 1
Price Based on current price
Packaging Details anti-static bag & cardboard box
Delivery Time 3-5 work days
Payment Terms T/T
Supply Ability In stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Configuration Positive Output Type Fixed
Number Of Regulators 2 Voltage - Input (Max) 5.5V
Voltage - Output (Min/Fixed) 3.3V, 3.3V Voltage - Output (Max) -
Voltage Dropout (Max) 0.2V @ 300mA, 0.2V @ 300mA Current - Output 300mA, 300mA
Current - Quiescent (Iq) 120 µA Current - Supply (Max) 200 µA
PSRR 70dB ~ 65dB (1kHz ~ 20kHz) Control Features Enable
Protection Features Over Current, Over Temperature Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount Package / Case 8-VFDFN Exposed Pad, 8-MLF®
Supplier Device Package 8-MLF® (2x2)
You can tick the products you need and communicate with us in the message board.
Part Number Description
MIC5330-SSYML-TR IC REG LINEAR 3.3V/3.3V 8MLF
MIC5283-5.0YML-TR IC REG LINEAR 5V 150MA 8MLF
MIC5283YML-TR IC REG LINEAR POS ADJ 150MA 8MLF
MIC5378YMT-TR IC REG LIN POS ADJ 150MA 8TMLF
MIC5310-GFYML-TR IC REG LINEAR 1.5V/1.8V 8MLF
MIC5310-PGYML-TR IC REG LINEAR 1.8V/3V 8MLF
MIC5332-J4YMT-TR IC REG LINEAR 1.2V/2.5V 8MLF
MIC5332-G4YMT-TR IC REG LINEAR 1.2V/1.8V 8MLF
MIC5330-SFYML-TR IC REG LINEAR 1.5V/3.3V 8MLF
MIC47100-1.0YML-TR IC REG LINEAR 1V 1A 8MLF
MIC5331-G4YMT-TR IC REG LINEAR 1.2V/1.8V 8MLF
MIC5331-J4YMT-TR IC REG LINEAR 1.2V/2.5V 8MLF
MIC5330-PGYML-TR IC REG LINEAR 1.8V/3V 8MLF
MIC47100YML-TR IC REG LINEAR POS ADJ 1A 8MLF
MIC5331-PPYMT-TR IC REG LINEAR 3V/3V 8MLF
MIC5377YMT-TR IC REG LIN POS ADJ 150MA 8TMLF
MIC5356-MGYML-TR IC REG LINEAR 1.8V/2.8V 8MLF
MIC5356-MMYML-TR IC REG LINEAR 2.8V/2.8V 8MLF
MIC5331-MMYMT-TR IC REG LINEAR 2.8V/2.8V 8MLF
MIC5331-MNYMT-TR IC REG LINEAR 2.8V/2.85V 8MLF
MIC5331-NNYMT-TR IC REG LINEAR 2.85V/2.85V 8MLF
MIC5331-PMYMT-TR IC REG LINEAR 2.8V/3V 8MLF
MIC5331-PNYMT-TR IC REG LINEAR 2.85V/3V 8MLF
MIC5332-MMYMT-TR IC REG LINEAR 2.8V/2.8V 8MLF
MIC5332-MNYMT-TR IC REG LINEAR 2.8V/2.85V 8MLF
MIC5332-NNYMT-TR IC REG LINEAR 2.85V/2.85V 8MLF
MIC5332-PMYMT-TR IC REG LINEAR 2.8V/3V 8MLF
MIC5332-PNYMT-TR IC REG LINEAR 2.85V/3V 8MLF
MIC5332-PPYMT-TR IC REG LINEAR 3V/3V 8MLF
MIC5310-MGYML-TR IC REG LINEAR 1.8V/2.8V 8MLF
MIC5310-GWYML-TR IC REG LINEAR 1.6V/1.8V 8MLF
MIC5310-JGYML-TR IC REG LINEAR 1.8V/2.5V 8MLF
MIC5310-JJYML-TR IC REG LINEAR 2.5V/2.5V 8MLF
MIC5310-LLYML-TR IC REG LINEAR 2.7V/2.7V 8MLF
MIC5310-PJYML-TR IC REG LINEAR 2.5V/3V 8MLF
MIC5310-PMYML-TR IC REG LINEAR 2.8V/3V 8MLF
MIC5310-SFYML-TR IC REG LINEAR 1.5V/3.3V 8MLF
MIC5310-SJYML-TR IC REG LINEAR 2.5V/3.3V 8MLF
MIC5310-SNYML-TR IC REG LINEAR 2.85V/3.3V 8MLF
MIC5310-SOYML-TR IC REG LINEAR 2.9V/3.3V 8MLF
MIC5310-SPYML-TR IC REG LINEAR 3V/3.3V 8MLF
MIC5310-KDYML-TR IC REG LINEAR 1.85V/2.6V 8MLF
MIC5310-KGYML-TR IC REG LINEAR 1.8V/2.6V 8MLF
MIC5310-MKYML-TR IC REG LINEAR 2.6V/2.8V 8MLF
MIC5310-MMYML-TR IC REG LINEAR 2.8V/2.8V 8MLF
MIC5310-NDYML-TR IC REG LINEAR 1.85V/2.85V 8MLF
MIC5310-NKYML-TR IC REG LINEAR 2.6V/2.85V 8MLF
MIC5310-NNYML-TR IC REG LINEAR 2.85V/2.85V 8MLF
MIC5310-OFYML-TR IC REG LINEAR 1.5V/2.9V 8MLF
MIC5310-OGYML-TR IC REG LINEAR 1.8V/2.9V 8MLF
MIC5310-OOYML-TR IC REG LINEAR 2.9V/2.9V 8MLF
MIC5310-PKYML-TR IC REG LINEAR 2.6V/3V 8MLF
MIC5310-PPYML-TR IC REG LINEAR 3V/3V 8MLF
MIC5310-SGYML-TR IC REG LINEAR 1.8V/3.3V 8MLF
MIC5310-SKYML-TR IC REG LINEAR 2.6V/3.3V 8MLF
MIC5310-SMYML-TR IC REG LINEAR 2.8V/3.3V 8MLF
MIC5310-SRYML-TR IC REG LINEAR 3.2V/3.3V 8MLF
MIC5310-SSYML-TR IC REG LINEAR 3.3V/3.3V 8MLF
MIC5310-MFYML-TR IC REG LINEAR 1.5V/2.8V 8MLF
MIC5310-PNYML-TR IC REG LINEAR 2.85V/3V 8MLF
MIC5310-MGYMT-TR IC REG LINEAR 1.8V/2.8V 8MLF
MIC5310-GGYML-TR IC REG LINEAR 1.8V/1.8V 8MLF
MIC5330-PKYML-TR IC REG LINEAR 2.6V/3V 8MLF
MIC5330-SKYML-TR IC REG LINEAR 2.6V/3.3V 8MLF
MIC5330-GFYML-TR IC REG LINEAR 1.5V/1.8V 8MLF
MIC5330-GWYML-TR IC REG LINEAR 1.6V/1.8V 8MLF
MIC5330-JGYML-TR IC REG LINEAR 1.8V/2.5V 8MLF
MIC5330-JJYML-TR IC REG LINEAR 2.5V/2.5V 8MLF
MIC5330-KDYML-TR IC REG LINEAR 1.85V/2.6V 8MLF
MIC5330-KGYML-TR IC REG LINEAR 1.8V/2.6V 8MLF
MIC5330-LLYML-TR IC REG LINEAR 2.7V/2.7V 8MLF
MIC5330-NDYML-TR IC REG LINEAR 1.85V/2.85V 8MLF
MIC5330-NKYML-TR IC REG LINEAR 2.6V/2.85V 8MLF
MIC5330-OFYML-TR IC REG LINEAR 1.5V/2.9V 8MLF
MIC5330-OOYML-TR IC REG LINEAR 2.9V/2.9V 8MLF
MIC5330-SJYML-TR IC REG LINEAR 2.5V/3.3V 8MLF
MIC5330-SMYML-TR IC REG LINEAR 2.8V/3.3V 8MLF
MIC5330-SOYML-TR IC REG LINEAR 2.9V/3.3V 8MLF
MIC5330-MFYML-TR IC REG LINEAR 1.5V/2.8V 8MLF
MIC5330-MGYML-TR IC REG LINEAR 1.8V/2.8V 8MLF
MIC5330-MKYML-TR IC REG LINEAR 2.6V/2.8V 8MLF
MIC5330-MMYML-TR IC REG LINEAR 2.8V/2.8V 8MLF
MIC5330-OGYML-TR IC REG LINEAR 1.8V/2.9V 8MLF
MIC5330-PJYML-TR IC REG LINEAR 2.5V/3V 8MLF
MIC5330-PNYML-TR IC REG LINEAR 2.85V/3V 8MLF
MIC5330-PPYML-TR IC REG LINEAR 3V/3V 8MLF
MIC5330-SPYML-TR IC REG LINEAR 3V/3.3V 8MLF
MIC5330-SRYML-TR IC REG LINEAR 3.2V/3.3V 8MLF
MIC5330-NNYML-TR IC REG LINEAR 2.85V/2.85V 8MLF
MIC5330-PMYML-TR IC REG LINEAR 2.8V/3V 8MLF
MIC5330-SGYML-TR IC REG LINEAR 1.8V/3.3V 8MLF
MIC5330-SNYML-TR IC REG LINEAR 2.85V/3.3V 8MLF
MIC5330-GGYML-TR IC REG LINEAR 1.8V/1.8V 8MLF
MIC47100-0.8YML-TR IC REG LINEAR 0.8V 1A 8MLF
MIC47100-1.2YML-TR IC REG LINEAR 1.2V 1A 8MLF
MIC5356-MGYML-T5 IC REG LINEAR 1.8V/2.8V 8MLF
MIC5356-MMYML-T5 IC REG LINEAR 2.8V/2.8V 8MLF
MIC5283YML-T5 IC REG LINEAR POS ADJ 150MA 8MLF
Leave a Message
Part Number Description
Product Description

Product Details



General Description

The MIC5330 is a tiny Dual Ultra Low-Dropout (ULDO™) linear regulator ideally suited for portable electronics due to its high power supply ripple rejection (PSRR) and ultra low output noise. The MIC5330 integrates two high-performance; 300mA ULDOs into a tiny 2mm x 2mm leadless MLF® package, which provides exceptional thermal package characteristics.





Features

• 2.3V to 5.5V input voltage range
• Ultra-low dropout voltage ULDO™ 75mV @ 300mA
• High PSRR - >70dB @ 1KHz
• Ultra-low output noise: 30µVRMS
• ±2% initial output accuracy
• Tiny 8-pin 2mm x 2mm MLF® leadless package
• Excellent Load/Line transient response
• Fast start-up time: 30µs
• 300mA output current per LDO
• Thermal shutdown protection
• Low quiescent current: 75µA per output
• Current limit protection





Applications

• Mobile phones
• PDAs
• GPS receivers
• Portable electronics
• Portable media players
• Digital still and video cameras



Specifications

Attribute Attribute Value
Manufacturer Microchip Technology
Product Category Linear Voltage Regulators
Mfr Microchip Technology
Series -
Package Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
Product-Status Active
Output-Configuration Positive
Output-Type Fixed
Number-of-Regulators 2
Voltage-Input-Max 5．5V
Voltage-Output-Min-Fixed 3．3V 3．3V
Voltage-Output-Max -
Voltage-Dropout-Max 0．2V @ 300mA 0．2V @ 300mA
Current-Output 300mA 300mA
Current-Quiescent-Iq 120 µA
Current-Supply-Max 200 µA
PSRR 70dB ~ 65dB (1kHz ~ 20kHz)
Control-Features Enable
Protection-Features Over Current Over Temperature
Operating-Temperature -40°C ~ 125°C
Mounting-Type Surface Mount
Package-Case 8-VFDFN Exposed Pad 8-MLF®
Supplier-Device-Package 8-MLF® (2x2)
Base-Product-Number MIC5330

Descriptions

Linear Voltage Regulator IC Positive Fixed 2 Output 3.3V 300mA, 300mA 8-MLF? (2x2)
LDO Regulator Pos 3.3V3.3V 0.3A/0.3A 8-Pin DFN EP T/R
LDO Voltage Regulators
