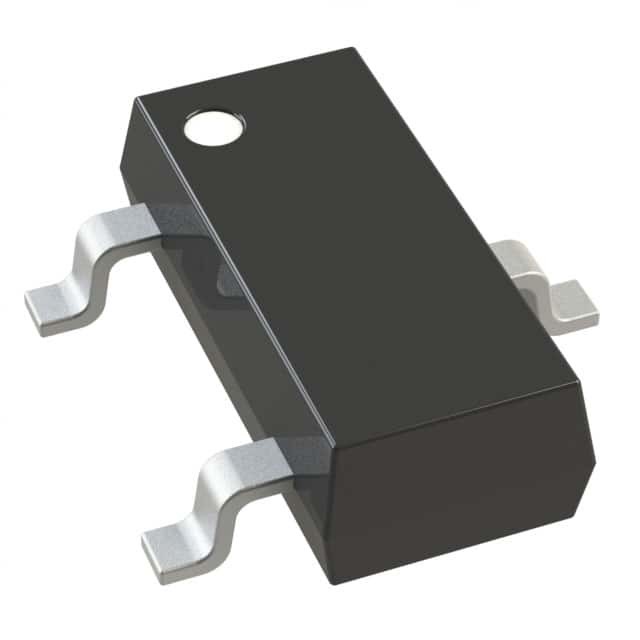

MCP1700T-3302E/TT IC REG LINEAR 3.3V 250MA SOT23-3 Microchip Technology
| Brand Name | Microchip Technology |
|---|---|
| Model Number | MCP1700T-3302E/TT |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3.3V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.35V @ 250mA | Current - Output | 250mA |
| Current - Quiescent (Iq) | 4 µA | Current - Supply (Max) | - |
| PSRR | 44dB (100Hz) | Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| MCP1700T-3302E/TT | IC REG LINEAR 3.3V 250MA SOT23-3 | |
| MCP1700T-3002E/TT | IC REG LINEAR 3V 250MA SOT23-3 | |
| MCP1700T-2802E/TT | IC REG LINEAR 2.8V 250MA SOT23-3 | |
| MCP1700T-1802E/TT | IC REG LINEAR 1.8V 200MA SOT23-3 | |
| MCP1700T-1202E/TT | IC REG LINEAR 1.2V 200MA SOT23-3 | |
| MCP1700T-3602E/TT | IC REG LINEAR 3.6V 250MA SOT23-3 | |
| MCP1700T-2002E/TT | IC REG LINEAR 2V 200MA SOT23-3 | |
| TC595002ECBTR | IC REG LINEAR -5V 100MA SOT23-3 | |
| MCP1700T-1502E/TT | IC REG LINEAR 1.5V 200MA SOT23-3 | |
| MCP1700T-3102E/TT | IC REG LINEAR 3.1V 250MA SOT23-3 | |
| MCP1700T-3502E/TT | IC REG LINEAR 3.5V 250MA SOT23-3 | |
| MCP1700T-2302E/TT | IC REG LINEAR 2.3V 200MA SOT23-3 | |
| TC593002ECBTR | IC REG LINEAR -3V 80MA SOT23-3 | |
| MCP1811AT-012/TT | IC REG LINEAR 1.2V 150MA SOT23-3 | |
| MCP1700T-2502E/TT | IC REG LINEAR 2.5V 250MA SOT23-3 | |
| MCP1812AT-012/TT | IC REG LINEAR 1.2V 300MA SOT23-3 | |
| MCP1700T-5002E/TT | IC REG LINEAR 5V 250MA SOT23-3 | |
| MCP1799T-5002H/TT | IC REG LINEAR 5V 80MA SOT23-3 | |
| MCP1799T-3302H/TT | IC REG LINEAR 3.3V 80MA SOT23-3 | |
| MCP1700T-2202E/TT | IC REG LINEAR 2.2V 200MA SOT23-3 | |
| MCP1700T-2702E/TT | IC REG LINEAR 2.7V 250MA SOT23-3 | |
| MCP1700T-2102E/TT | IC REG LINEAR 2.1V 200MA SOT23-3 | |
| MCP1700T-2402E/TT | IC REG LINEAR 2.4V 200MA SOT23-3 | |
| MCP1700T-2602E/TT | IC REG LINEAR 2.6V 250MA SOT23-3 | |
| MCP1700T-2902E/TT | IC REG LINEAR 2.9V 250MA SOT23-3 | |
| MCP1700T-4002E/TT | IC REG LINEAR 4V 250MA SOT23-3 | |
| MCP1700T-2301E/TT | IC REG LINEAR 2.3V 200MA SOT23-3 | |
| MCP1700T-1802E/TTVAO | IC REG LINEAR 1.8V 200MA SOT23-3 | |
| MCP1700T-3302E/TTVAO | IC REG LINEAR 3.3V 250MA SOT23-3 | |
| MCP1799T-5002H/TTVAO | IC REG LINEAR 5V 80MA SOT23-3 | |
| MCP1799T-3302H/TTVAO | IC REG LINEAR 3.3V 80MA SOT23-3 | |
| MCP1810T-12I/TT | IC REG LINEAR 1.2V 150MA SOT23-3 | |
| MCP1810T-15I/TT | IC REG LINEAR 1.5V 150MA SOT23-3 | |
| MCP1810T-18I/TT | IC REG LINEAR 1.8V 150MA SOT23-3 | |
| MCP1810T-20I/TT | IC REG LINEAR 2V 150MA SOT23-3 | |
| MCP1810T-25I/TT | IC REG LINEAR 2.5V 150MA SOT23-3 | |
| MCP1810T-30I/TT | IC REG LINEAR 3V 150MA SOT23-3 | |
| MCP1810T-33I/TT | IC REG LINEAR 3.3V 150MA SOT23-3 | |
| MCP1810T-35I/TT | IC REG LINEAR 3.5V 150MA SOT23-3 | |
| MCP1811AT-010/TT | IC REG LINEAR 1V 150MA SOT23-3 | |
| MCP1811AT-018/TT | IC REG LINEAR 1.8V 150MA SOT23-3 | |
| MCP1811AT-020/TT | IC REG LINEAR 2V 150MA SOT23-3 | |
| MCP1811AT-025/TT | IC REG LINEAR 2.5V 150MA SOT23-3 | |
| MCP1811AT-028/TT | IC REG LINEAR 2.8V 150MA SOT23-3 | |
| MCP1811AT-030/TT | IC REG LINEAR 3V 150MA SOT23-3 | |
| MCP1811AT-033/TT | IC REG LINEAR 3.3V 150MA SOT23-3 | |
| MCP1811AT-040/TT | IC REG LINEAR 4V 150MA SOT23-3 | |
| MCP1811BT-010/TT | IC REG LINEAR 1V 150MA SOT23-3 | |
| MCP1811BT-012/TT | IC REG LINEAR 1.2V 150MA SOT23-3 | |
| MCP1811BT-018/TT | IC REG LINEAR 1.8V 150MA SOT23-3 | |
| MCP1811BT-020/TT | IC REG LINEAR 2V 150MA SOT23-3 | |
| MCP1811BT-025/TT | IC REG LINEAR 2.5V 150MA SOT23-3 | |
| MCP1811BT-028/TT | IC REG LINEAR 2.8V 150MA SOT23-3 | |
| MCP1811BT-030/TT | IC REG LINEAR 3V 150MA SOT23-3 | |
| MCP1811BT-033/TT | IC REG LINEAR 3.3V 150MA SOT23-3 | |
| MCP1811BT-040/TT | IC REG LINEAR 4V 150MA SOT23-3 | |
| MCP1812AT-010/TT | IC REG LINEAR 1V 300MA SOT23-3 | |
| MCP1812AT-018/TT | IC REG LINEAR 1.8V 300MA SOT23-3 | |
| MCP1812AT-020/TT | IC REG LINEAR 2V 300MA SOT23-3 | |
| MCP1812AT-025/TT | IC REG LINEAR 2.5V 300MA SOT23-3 | |
| MCP1812AT-028/TT | IC REG LINEAR 2.8V 300MA SOT23-3 | |
| MCP1812AT-030/TT | IC REG LINEAR 3V 300MA SOT23-3 | |
| MCP1812AT-033/TT | IC REG LINEAR 3.3V 300MA SOT23-3 | |
| MCP1812AT-040/TT | IC REG LINEAR 4V 300MA SOT23-3 | |
| MCP1812BT-010/TT | IC REG LINEAR 1V 300MA SOT23-3 | |
| MCP1812BT-012/TT | IC REG LINEAR 1.2V 300MA SOT23-3 | |
| MCP1812BT-018/TT | IC REG LINEAR 1.8V 300MA SOT23-3 | |
| MCP1812BT-020/TT | IC REG LINEAR 2V 300MA SOT23-3 | |
| MCP1812BT-025/TT | IC REG LINEAR 2.5V 300MA SOT23-3 | |
| MCP1812BT-028/TT | IC REG LINEAR 2.8V 300MA SOT23-3 | |
| MCP1812BT-030/TT | IC REG LINEAR 3V 300MA SOT23-3 | |
| MCP1812BT-033/TT | IC REG LINEAR 3.3V 300MA SOT23-3 | |
| MCP1812BT-040/TT | IC REG LINEAR 4V 300MA SOT23-3 | |
| MCP1810T-36I/TT | IC REG LINEAR 150MA SOT23 |
Product Description
Product Details
General Description
The MCP1700 is a family of CMOS low dropout (LDO) voltage regulators that can deliver up to 250 mA of current while consuming only 1.6 µA of quiescent current (typical). The input operating range is specified from 2.3V to 6.0V, making it an ideal choice for two and three primary cell battery-powered applications, as well as single cell Li-Ion-powered applications.
Features
• 1.6 µA Typical Quiescent Current• Input Operating Voltage Range: 2.3V to 6.0V
• Output Voltage Range: 1.2V to 5.0V
• 250 mA Output Current for output voltages ≥ 2.5V
• 200 mA Output Current for output voltages < 2.5V
• Low Dropout (LDO) voltage
- 178 mV typical @ 250 mA for VOUT = 2.8V
• 0.4% Typical Output Voltage Tolerance
• Standard Output Voltage Options:
- 1.2V, 1.8V, 2.5V, 3.0V, 3.3V, 5.0V
• Stable with 1.0 µF Ceramic Output capacitor
• Short Circuit Protection
• Overtemperature Protection
Applications
• Battery-powered Devices• Battery-powered Alarm Circuits
• Smoke Detectors
• CO2 Detectors
• Pagers and Cellular Phones
• Smart Battery Packs
• Low Quiescent Current Voltage Reference
• PDAs
• Digital Cameras
• Microcontroller Power
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Microchip Technology |
| Product Category | Linear Voltage Regulators |
| Series | - |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.050717 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | TO-236-3, SC-59, SOT-23-3 |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Surface Mount |
| Output-Type | Fixed |
| Supplier-Device-Package | SOT-23-3 |
| Voltage-Input | Up to 6V |
| Number-of-Outputs | 1 Output |
| Current-Output | 250mA |
| Voltage-Output | 3.3V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 0.178V @ 250mA |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
| Pd-Power-Dissipation | 0.3696 W |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 3.3 V |
| Input-Voltage-MAX | 6 V |
| Output-Current | 250 mA |
| Input-Voltage-MIN | + 2.3 V |
| Load-Regulation | 1 % |
| Voltage-Regulation-Accuracy | 3 % |
| Package-Case | SOT-23-3 |
| Ib-Input-Bias-Current | 1.6 uA |
| Quiescent-Current | 4 uA |
| Dropout-Voltage | 0.178 V at 250 mA |
| Dropout-Voltage-Max | 350 mV |
| Line-Regulation | 0.75 % / V |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 250mA SOT-23-3
LDO Regulator Pos 3.3V 0.25A Automotive 3-Pin SOT-23 T/R
LDO Voltage Regulators 250mA Adj LDO 2%
