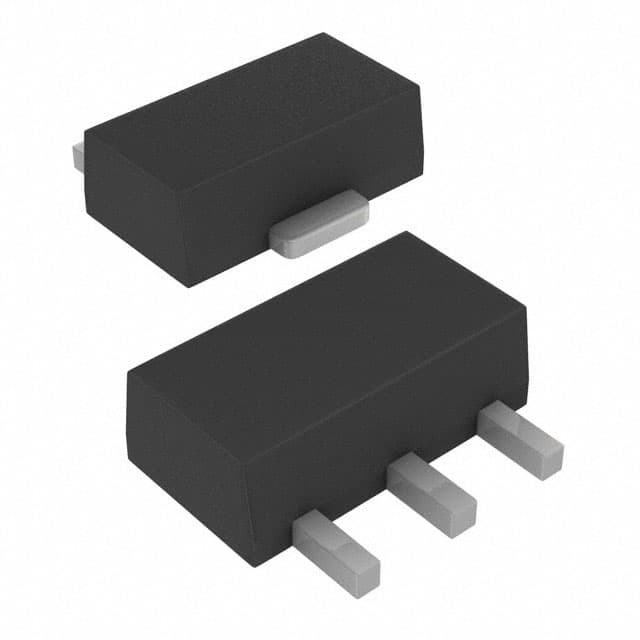

MCP1702T-3302E/MB IC REG LINEAR 3.3V 250MA SOT89-3 Microchip Technology
| Brand Name | Microchip Technology |
|---|---|
| Model Number | MCP1702T-3302E/MB |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 13.2V |
| Voltage - Output (Min/Fixed) | 3.3V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.725V @ 250mA | Current - Output | 250mA |
| Current - Quiescent (Iq) | 5 µA | Current - Supply (Max) | - |
| PSRR | 44dB (100Hz) | Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | TO-243AA |
| Supplier Device Package | SOT-89-3 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| MCP1702T-3302E/MB | IC REG LINEAR 3.3V 250MA SOT89-3 | |
| MCP1703T-3302E/MB | IC REG LINEAR 3.3V 250MA SOT89-3 | |
| MCP1703T-5002E/MB | IC REG LINEAR 5V 250MA SOT89-3 | |
| MCP1754ST-5002E/MB | IC REG LINEAR 5V 150MA SOT89-3 | |
| MCP1804T-5002I/MB | IC REG LINEAR 5V 150MA SOT89-3 | |
| MCP1700T-1802E/MB | IC REG LINEAR 1.8V 200MA SOT89-3 | |
| MCP1754ST-3302E/MB | IC REG LINEAR 3.3V 150MA SOT89-3 | |
| MCP1700T-5002E/MB | IC REG LINEAR 5V 250MA SOT89-3 | |
| MCP1703T-4002E/MB | IC REG LINEAR 4V 250MA SOT89-3 | |
| MCP1700T-1202E/MB | IC REG LINEAR 1.2V 200MA SOT89-3 | |
| MCP1700T-3002E/MB | IC REG LINEAR 3V 250MA SOT89-3 | |
| MCP1700T-1502E/MB | IC REG LINEAR 1.5V 200MA SOT89-3 | |
| MCP1700T-4002E/MB | IC REG LINEAR 4V 250MA SOT89-3 | |
| MCP1702T-3602E/MB | IC REG LINEAR 3.6V 250MA SOT89-3 | |
| MCP1702T-4002E/MB | IC REG LINEAR 4V 250MA SOT89-3 | |
| MCP1804T-2502I/MB | IC REG LINEAR 2.5V 100MA SOT89-3 | |
| MCP1804T-C002I/MB | IC REG LINEAR 12V 150MA SOT89-3 | |
| MCP1701AT-5002I/MB | IC REG LINEAR 5V 250MA SOT89-3 | |
| MCP1702T-5002E/MB | IC REG LINEAR 5V 250MA SOT89-3 | |
| MCP1702T-1202E/MB | IC REG LINEAR 1.2V 200MA SOT89-3 | |
| MCP1754ST-1802E/MB | IC REG LINEAR 1.8V 150MA SOT89-3 | |
| MCP1703AT-5002E/MB | IC REG LINEAR 5V 250MA SOT89-3 | |
| MCP1703AT-1802E/MB | IC REG LINEAR 1.8V 200MA SOT89-3 | |
| MCP1703AT-1202E/MB | IC REG LINEAR 1.2V 200MA SOT89-3 | |
| MCP1703T-3002E/MB | IC REG LINEAR 3V 250MA SOT89-3 | |
| MCP1703T-1502E/MB | IC REG LINEAR 1.5V 200MA SOT89-3 | |
| MCP1804T-A002I/MB | IC REG LINEAR 10V 150MA SOT89-3 | |
| MCP1701AT-1802I/MB | IC REG LINEAR 1.8V 110MA SOT89-3 | |
| MCP1700T-3302E/MB | IC REG LINEAR 3.3V 250MA SOT89-3 | |
| MCP1703AT-3302E/MB | IC REG LINEAR 3.3V 250MA SOT89-3 | |
| LR645N8-G | IC REG LINEAR 10V 3MA TO243AA | |
| LR8N8-G | IC REG LIN POS ADJ 10MA TO243AA | |
| MCP1804T-3302I/MB | IC REG LINEAR 3.3V 150MA SOT89-3 | |
| MCP1700T-2502E/MB | IC REG LINEAR 2.5V 250MA SOT89-3 | |
| MCP1702T-3002E/MB | IC REG LINEAR 3V 250MA SOT89-3 | |
| MCP1701AT-3302I/MB | IC REG LINEAR 3.3V 150MA SOT89-3 | |
| MCP1700T-3602E/MB | IC REG LINEAR 3.6V 250MA SOT89-3 | |
| MCP1700T-3502E/MB | IC REG LINEAR 3.5V 250MA SOT89-3 | |
| MCP1702T-2802E/MB | IC REG LINEAR 2.8V 250MA SOT89-3 | |
| MCP1702T-1502E/MB | IC REG LINEAR 1.5V 200MA SOT89-3 | |
| MCP1702T-2502E/MB | IC REG LINEAR 2.5V 250MA SOT89-3 | |
| MCP1702T-1802E/MB | IC REG LINEAR 1.8V 200MA SOT89-3 | |
| MCP1703T-1202E/MB | IC REG LINEAR 1.2V 200MA SOT89-3 | |
| MCP1703T-2502E/MB | IC REG LINEAR 2.5V 250MA SOT89-3 | |
| MCP1703AT-3002E/MB | IC REG LINEAR 3V 250MA SOT89-3 | |
| MCP1804T-3002I/MB | IC REG LINEAR 3V 150MA SOT89-3 | |
| MCP1701AT-3002I/MB | IC REG LINEAR 3V 150MA SOT89-3 | |
| MCP1701AT-2502I/MB | IC REG LINEAR 2.5V 125MA SOT89-3 | |
| MCP1700T-2802E/MB | IC REG LINEAR 2.8V 250MA SOT89-3 | |
| MCP1700T-2202E/MB | IC REG LINEAR 2.2V 200MA SOT89-3 | |
| MCP1700T-2302E/MB | IC REG LINEAR 2.3V 200MA SOT89-3 | |
| MCP1700T-2402E/MB | IC REG LINEAR 2.4V 200MA SOT89-3 | |
| MCP1700T-2602E/MB | IC REG LINEAR 2.6V 250MA SOT89-3 | |
| MCP1700T-2702E/MB | IC REG LINEAR 2.7V 250MA SOT89-3 | |
| MCP1700T-2902E/MB | IC REG LINEAR 2.9V 250MA SOT89-3 | |
| MCP1700T-3102E/MB | IC REG LINEAR 3.1V 250MA SOT89-3 | |
| MCP1700T-4602E/MB | IC REG LINEAR 4.6V 250MA SOT89-3 | |
| MCP1700T-4502E/MB | IC REG LINEAR 4.5V 250MA SOT89-3 | |
| MCP1703T-2802E/MB | IC REG LINEAR 2.8V 250MA SOT89-3 | |
| MCP1703AT-2502E/MB | IC REG LINEAR 2.5V 250MA SOT89-3 | |
| MCP1703AT-2802E/MB | IC REG LINEAR 2.8V 250MA SOT89-3 | |
| MCP1703AT-4002E/MB | IC REG LINEAR 4V 250MA SOT89-3 | |
| MCP1703AT-1502E/MB | IC REG LINEAR 1.5V 200MA SOT89-3 | |
| MCP1703T-1802E/MB | IC REG LINEAR 1.8V 200MA SOT89-3 | |
| MCP1804T-1802I/MB | IC REG LINEAR 1.8V 100MA SOT89-3 | |
| MCP1703RT-5002E/MB | IC REG LINEAR 5V 250MA SOT89-3 | |
| MCP1701AT-4602I/MB | IC REG LINEAR 4.6V SOT89-3 | |
| MCP1701T-2502I/MB | IC REG LINEAR 2.5V 125MA SOT89-3 | |
| MCP1701T-3002I/MB | IC REG LINEAR 3V 150MA SOT89-3 | |
| MCP1701T-3302I/MB | IC REG LINEAR 3.3V 150MA SOT89-3 | |
| MCP1701T-5002I/MB | IC REG LINEAR 5V 250MA SOT89-3 | |
| MCP1701T-1802I/MB | IC REG LINEAR 1.8V 110MA SOT89-3 |
Product Description
Product Details
Description:
The MCP1702 is a family of CMOS low dropout (LDO) voltage regulators that can deliver up to 250 mA of current while consuming only 2.0 µA of quiescent current (typical). The input operating range is specified from 2.7V to 13.2V, making it an ideal choice for two to six primary cell battery-powered applications, 9V alkaline and one or two cell Li-Ion-powered applications.
Features:
• 2.0 µA Quiescent Current (typical)• Input Operating Voltage Range: 2.7V to 13.2V
• 250 mA Output Current for Output Voltages 2.5V
• 200 mA Output Current for Output Voltages < 2.5V
• Low Dropout (LDO) Voltage
- 625 mV typical @ 250 mA (VOUT= 2.8V)
• 0.4% Typical Output Voltage Tolerance
• Standard Output Voltage Options:
- 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 4.0V, 5.0V
• Output Voltage Range 1.2V to 5.5V in 0.1V
Increments (50 mV increments available upon request)
• Stable with 1.0 µF to 22 µF Output Capacitor
• Short-Circuit Protection
• Overtemperature Protection
Applications:
• Battery-powered Devices• Battery-powered Alarm Circuits
• Smoke Detectors
•CO2
Detectors
• Pagers and Cellular Phones
• Smart Battery Packs
• Low Quiescent Current Voltage Reference
•PDAs
•Digital Cameras
• Microcontroller Power
• Solar-Powered Instruments
• Consumer Products
• Battery Powered Data Loggers
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Microchip Technology |
| Product Category | Linear Voltage Regulators |
| Series | - |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.004603 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | TO-243AA |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Surface Mount |
| Output-Type | Fixed |
| Supplier-Device-Package | SOT-89-3 |
| Voltage-Input | Up to 13.2V |
| Number-of-Outputs | 1 Output |
| Current-Output | 250mA |
| Voltage-Output | 3.3V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 0.525V @ 250mA |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 3.3 V |
| Input-Voltage-MAX | 13.2 V |
| Output-Current | 250 mA |
| Input-Voltage-MIN | + 2.7 V |
| Load-Regulation | 1 % |
| Voltage-Regulation-Accuracy | 0.4 % |
| Package-Case | SOT-89-3 |
| Ib-Input-Bias-Current | 2 uA |
| Quiescent-Current | 5 uA |
| Dropout-Voltage | 0.525 V at 250 mA |
| Dropout-Voltage-Max | 725 mV at 250 mA |
| Line-Regulation | 0.1 % / V |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 250mA SOT-89-3
LDO Regulator Pos 3.3V 0.25A Automotive 4-Pin(3+Tab) SOT-89 T/R
LDO Voltage Regulators LDO w/ Low Quiescent
