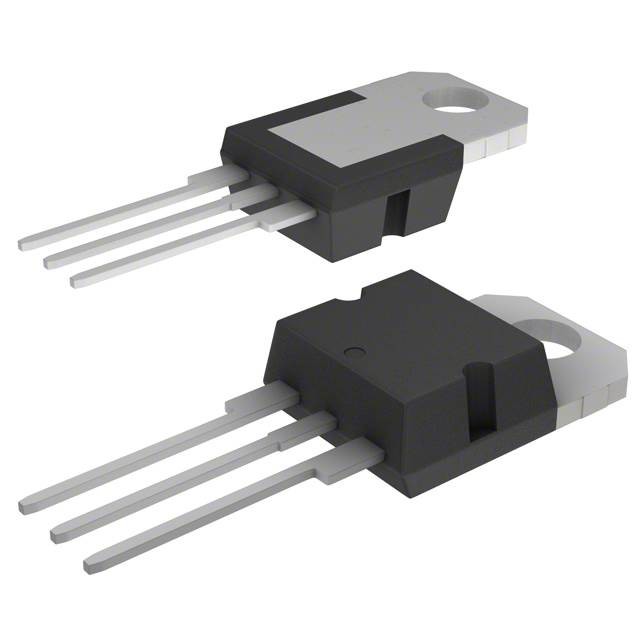

MIC29300-12WT IC REG LINEAR 12V 3A TO220-3 Microchip Technology
| Brand Name | Microchip Technology |
|---|---|
| Model Number | MIC29300-12WT |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 26V |
| Voltage - Output (Min/Fixed) | 12V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.6V @ 3A | Current - Output | 3A |
| Current - Quiescent (Iq) | - | Current - Supply (Max) | - |
| PSRR | - | Control Features | - |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole | Package / Case | TO-220-3 |
| Supplier Device Package | TO-220-3 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| MIC29300-12WT | IC REG LINEAR 12V 3A TO220-3 | |
| MIC2940A-3.3WT | IC REG LINEAR 3.3V 1.25A TO220-3 | |
| MIC2937A-5.0WT | IC REG LINEAR 5V 750MA TO220-3 | |
| MIC29300-3.3WT | IC REG LINEAR 3.3V 3A TO220-3 | |
| MIC29150-5.0WT | IC REG LINEAR 5V 1.5A TO220-3 | |
| MIC29150-3.3WT | IC REG LINEAR 3.3V 1.5A TO220-3 | |
| MIC2937A-12WT | IC REG LINEAR 12V 750MA TO220-3 | |
| MIC29310-3.3WT | IC REG LINEAR 3.3V 3A TO220-3 | |
| MIC2920A-4.8WT | IC REG LIN 4.85V 400MA TO220-3 | |
| LR645N5-G | IC REG LINEAR 10V 3MA TO220 | |
| MIC2937A-3.3WT | IC REG LINEAR 3.3V 750MA TO220-3 | |
| MIC29310-5.0WT | IC REG LINEAR 5V 3A TO220-3 | |
| MIC29500-5.0WT | IC REG LINEAR 5V 5A TO220-3 | |
| MIC2920A-3.3WT | IC REG LINEAR 3.3V 400MA TO220-3 | |
| MIC39300-2.5WT | IC REG LINEAR 2.5V 3A TO220-3 | |
| MIC39500-1.8WT | IC REG LINEAR 1.8V 5A TO220-3 | |
| MIC29300-5.0WT | IC REG LINEAR 5V 3A TO220-3 | |
| MIC29150-12WT | IC REG LINEAR 12V 1.5A TO220-3 | |
| MIC29500-3.3WT | IC REG LINEAR 3.3V 5A TO220-3 | |
| MIC2954-03WT | IC REG LINEAR 5V 250MA TO220-3 | |
| MIC2940A-5.0WT | IC REG LINEAR 5V 1.25A TO220-3 | |
| MIC2940A-12WT | IC REG LINEAR 12V 1.25A TO220-3 | |
| MIC2954-02WT | IC REG LINEAR 5V 250MA TO220-3 | |
| MIC2920A-5.0WT | IC REG LINEAR 5V 400MA TO220-3 | |
| MIC39300-1.8WT | IC REG LINEAR 1.8V 3A TO220-3 | |
| MIC39150-1.8WT | IC REG LINEAR 1.8V 1.5A TO220-3 | |
| MIC39150-2.5WT | IC REG LINEAR 2.5V 1.5A TO220-3 | |
| MIC5237-5.0YT | IC REG LINEAR 5V 500MA TO220-3 | |
| MIC39150-1.65WT | IC REG LINEAR 1.65V 1.5A TO220-3 | |
| MIC2920A-12WT | IC REG LINEAR 12V 400MA TO220-3 | |
| MIC39500-2.5WT | IC REG LINEAR 2.5V 5A TO220-3 | |
| MIC29150-3.3BT | IC REG LINEAR 3.3V 1.5A TO220-3 | |
| MIC29150-5.0BT | IC REG LINEAR 5V 1.5A TO220-3 | |
| MIC29300-12BT | IC REG LINEAR 12V 3A TO220-3 | |
| MIC29300-3.3BT | IC REG LINEAR 3.3V 3A TO220-3 | |
| MIC29300-5.0BT | IC REG LINEAR 5V 3A TO220-3 | |
| MIC2937A-5.0BT | IC REG LINEAR 5V 750MA TO220-3 | |
| MIC2940A-3.3BT | IC REG LINEAR 3.3V 1.25A TO220-3 | |
| MIC2940A-5.0BT | IC REG LINEAR 5V 1.25A TO220-3 | |
| MIC29500-3.3BT | IC REG LINEAR 3.3V 5A TO220-3 | |
| MIC29500-5.0BT | IC REG LINEAR 5V 5A TO220-3 | |
| MIC29150-12BT | IC REG LINEAR 12V 1.5A TO220-3 | |
| MIC29150-4.2BT | IC REG LINEAR 4.2V 1.5A TO220-3 | |
| MIC2920A-12BT | IC REG LINEAR 12V 400MA TO220-3 | |
| MIC2920A-3.3BT | IC REG LINEAR 3.3V 400MA TO220-3 | |
| MIC2920A-4.8BT | IC REG LIN 4.85V 400MA TO220-3 | |
| MIC2920A-5.0BT | IC REG LINEAR 5V 400MA TO220-3 | |
| MIC29310-3.3BT | IC REG LINEAR 3.3V 3A TO220-3 | |
| MIC29310-5.0BT | IC REG LINEAR 5V 3A TO220-3 | |
| MIC2937A-12BT | IC REG LINEAR 12V 750MA TO220-3 | |
| MIC2937A-3.3BT | IC REG LINEAR 3.3V 750MA TO220-3 | |
| MIC2940A-12BT | IC REG LINEAR 12V 1.25A TO220-3 | |
| MIC2954-02BT | IC REG LINEAR 5V 250MA TO220-3 | |
| MIC2954-03BT | IC REG LINEAR 5V 250MA TO220-3 | |
| MIC39100-1.65BT | IC REG LINEAR 1.65V 1A TO220-3 | |
| MIC39150-1.65BT | IC REG LINEAR 1.65V 1.5A TO220-3 | |
| MIC39150-1.8BT | IC REG LINEAR 1.8V 1.5A TO220-3 | |
| MIC39150-2.5BT | IC REG LINEAR 2.5V 1.5A TO220-3 | |
| MIC39300-1.65BT | IC REG LINEAR 1.65V 3A TO220-3 | |
| MIC39300-1.8BT | IC REG LINEAR 1.8V 3A TO220-3 | |
| MIC39300-2.5BT | IC REG LINEAR 2.5V 3A TO220-3 | |
| MIC39500-1.8BT | IC REG LINEAR 1.8V 5A TO220-3 | |
| MIC39500-2.5BT | IC REG LINEAR 2.5V 5A TO220-3 | |
| MIC5237-5.0BT | IC REG LINEAR 5V 500MA TO220-3 |
Product Description
Product Details
General Description
The MIC29150/29300/29500/29750 are high current, high accuracy, low-dropout voltage regulators. Using Micrels proprietary Super βeta PNP® process with a PNP pass element, these regulators feature 350mV to 425mV (full load) typical dropout voltages and very low ground current. Designed for high current loads, these devices also find applications in lower current, extremely low dropout-critical systems, where their tiny dropout voltage and ground current values are important attributes.
Features
• High current capabilityMIC29150/29151/29152/29153.................................1.5A
MIC29300/29301/29302/29303....................................3A
MIC29500/29501/29502/29503....................................5A
MIC29750/29751/29752............................................7.5A
• Low-dropout voltage
• Low ground current
• Accurate 1% guaranteed tolerance
• Extremely fast transient response
• Reverse-battery and “Load Dump” protection
• Zero-current shutdown mode (5-pin versions)
• Error flag signals output out-of-regulation (5-pin versions)
• Also characterized for smaller loads with industryleading performance specifications
• Fixed voltage and adjustable versions
Applications
• Battery powered equipment• High-efficiency “Green” computer systems
• Automotive electronics
• High-efficiency linear lower supplies
• High-efficiency lost-regulator for switching supply
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Microchip Technology |
| Product Category | IC Chips |
| Series | MIC29300 |
| Packaging | Tube |
| Unit-Weight | 0.211644 oz |
| Mounting-Style | Through Hole |
| Package-Case | TO-220-3 |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Through Hole |
| Output-Type | Fixed |
| Supplier-Device-Package | TO-220-3 |
| Tolerance | 1 % |
| Voltage-Input | Up to 26V |
| Number-of-Outputs | 1 Output |
| Current-Output | 3A |
| Voltage-Output | 12V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 0.37V @ 3A |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 12 V |
| Input-Voltage-MAX | 26 V |
| Output-Current | 3 A |
| Load-Regulation | 0.2 % |
| Package-Case | TO-220-3 |
| Dropout-Voltage-Max | 600 mV |
| Line-Regulation | 0.06 % |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 12V 3A TO-220-3
LDO Regulator Pos 12V 3A Automotive 3-Pin(3+Tab) TO-220 Tube
LDO Voltage Regulators 3.0A LDO Fixed Voltage
