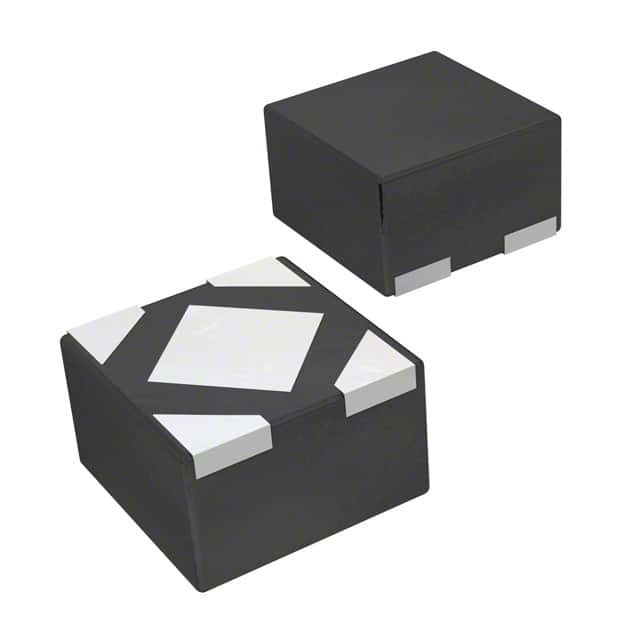

MIC5317-1.2YMT-TZ IC REG LINEAR 1.2V 150MA 4DFN Microchip Technology

  • MIC5317-1.2YMT-TZ IC REG LINEAR 1.2V 150MA 4DFN Microchip Technology
Brand Name Microchip Technology
Model Number MIC5317-1.2YMT-TZ
Minimum Order Quantity 1
Price Based on current price
Packaging Details anti-static bag & cardboard box
Delivery Time 3-5 work days
Payment Terms T/T
Supply Ability In stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Configuration Positive Output Type Fixed
Number Of Regulators 1 Voltage - Input (Max) 6V
Voltage - Output (Min/Fixed) 1.2V Voltage - Output (Max) -
Voltage Dropout (Max) 0.38V @ 150mA Current - Output 150mA
Current - Quiescent (Iq) 39 µA Current - Supply (Max) -
PSRR 80dB ~ 65dB (1kHz ~ 10kHz) Control Features Enable
Protection Features Over Current, Over Temperature Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount Package / Case 4-UDFN Exposed Pad
Supplier Device Package 4-DFN (1x1)
You can tick the products you need and communicate with us in the message board.
Part Number Description
MIC5317-1.2YMT-TZ IC REG LINEAR 1.2V 150MA 4DFN
MIC5317-1.5YMT-TZ IC REG LINEAR 1.5V 150MA 4DFN
MIC5317-2.5YMT-TZ IC REG LINEAR 2.5V 150MA 4DFN
MIC5504-2.5YMT-TR IC REG LINEAR 2.5V 300MA 4DFN
MIC5317-3.3YMT-TZ IC REG LINEAR 3.3V 150MA 4DFN
MIC5317-1.8YMT-TZ IC REG LINEAR 1.8V 150MA 4DFN
MIC5317-2.8YMT-TZ IC REG LINEAR 2.8V 150MA 4DFN
MIC5504-2.5YMT-TZ IC REG LINEAR 2.5V 300MA 4DFN
MIC5317-1.0YMT-TZ IC REG LINEAR 1V 150MA 4TDFN
MIC5317-3.0YMT-TZ IC REG LINEAR 3V 150MA 4DFN
NCP4586DMU12TCG IC REG LINEAR 1.2V 150MA 4UDFN
NCP4586DMU18TCG IC REG LINEAR 1.8V 150MA 4UDFN
NCP4586DMU28TCG IC REG LINEAR 2.8V 150MA 4UDFN
NCP4586DMU30TCG IC REG LINEAR 3V 150MA 4UDFN
NCP4586DMU50TCG IC REG LINEAR 5V 150MA 4UDFN
NCP4586DMU14TCG IC REG LINEAR 1.4V 150MA 4UDFN
NCP4586DMU15TCG IC REG LINEAR 1.5V 150MA 4UDFN
NCP4682DMU12TCG IC REG LINEAR 1.2V 150MA 4UDFN
NCP4682DMU15TCG IC REG LINEAR 1.5V 150MA 4UDFN
NCP4682DMU18TCG IC REG LINEAR 1.8V 150MA 4UDFN
NCP4682DMU25TCG IC REG LINEAR 2.5V 150MA 4UDFN
NCP4682DMU28TCG IC REG LINEAR 2.8V 150MA 4UDFN
NCP4682DMU30TCG IC REG LINEAR 3V 150MA 4UDFN
NCP4682DMU33TCG IC REG LINEAR 3.3V 150MA 4UDFN
NCP4682HMU18TCG IC REG LINEAR 1.8V 150MA 4UDFN
NCP4682HMU33TCG IC REG LINEAR 3.3V 150MA 4UDFN
NCP4685EMU30TCG IC REG LINEAR 3V 150MA 4UDFN
NCP4683DMU12TCG IC REG LINEAR 1.2V 300MA 4UDFN
NCP4683DMU185TCG IC REG LINEAR 1.85V 300MA 4UDFN
NCP4683DMU285TCG IC REG LINEAR 2.85V 300MA 4UDFN
NCP4683HMU185TCG IC REG LINEAR 1.85V 300MA 4UDFN
NCP4624DMU33TCG IC REG LINEAR 3.3V 150MA 4UDFN
NCP4624DMU12TCG IC REG LINEAR 1.2V 150MA 4UDFN
NCP4624DMU30TCG IC REG LINEAR 3V 150MA 4UDFN
NCP4624DMU50TCG IC REG LINEAR 5V 150MA 4UDFN
NCP4688DMU18TCG IC REG LINEAR 1.8V 150MA 4UDFN
NCP4688DMU25TCG IC REG LINEAR 2.5V 150MA 4UDFN
NCP4688DMU28TCG IC REG LINEAR 2.8V 150MA 4UDFN
NCP4688DMU30TCG IC REG LINEAR 3V 150MA 4UDFN
NCP4688DMU33TCG IC REG LINEAR 3.3V 150MA 4UDFN
NCP4682DMU19TCG IC REG LINEAR 1.9V 150MA 4UDFN
NCP4683DMU31TCG IC REG LINEAR 3.1V 300MA 4UDFN
MIC5317-1.2YMT-T5 IC REG LINEAR 1.2V 150MA 4DFN
MIC5317-1.5YMT-T5 IC REG LINEAR 1.5V 150MA 4DFN
MIC5317-1.8YMT-T5 IC REG LINEAR 1.8V 150MA 4DFN
MIC5317-2.5YMT-T5 IC REG LINEAR 2.5V 150MA 4DFN
MIC5317-2.8YMT-T5 IC REG LINEAR 2.8V 150MA 4DFN
MIC5317-3.0YMT-T5 IC REG LINEAR 3V 150MA 4DFN
MIC5317-3.3YMT-T5 IC REG LINEAR 3.3V 150MA 4DFN
MIC5504-2.5YMT-T5 IC REG LINEAR 2.5V 300MA 4DFN
NCP4683DMU09TCG IC REG LINEAR 0.9V 300MA 4UDFN
NCP4586DMU33TCG IC REG LINEAR 3.3V 150MA 4UDFN
NCP4683HMU12TCG IC REG LINEAR 1.2V 300MA 4UDFN
NCP4688DMU15TCG IC REG LINEAR 1.5V 150MA 4UDFN
NCP4586DMU25TCG IC REG LINEAR 2.5V 150MA 4UDFN
NCP4682HMU28TCG IC REG LINEAR 2.8V 150MA 4UDFN
NCP4688DMU12TCG IC REG LINEAR 1.2V 150MA 4UDFN
Leave a Message
Part Number Description
Product Description

Product Details



General Description

The MIC5317 is a high performance 150mA low dropout regulator offering high power supply rejection (PSRR) in an ultra-small 1mm × 1mm package for stringent space requirements and demanding performance. The MIC5317 operates from an input voltage from 2.5V to 6.0V and is capable of providing the output voltages of 1.0V to 3.6V making it ideal for USB port or 6V AC adaptor applications.





Features

• Tiny 1mm × 1mm Thin DFN, SOT23-5 and TSOT23-5 packages
• Wide 2.5V to 6V operating range
• 150mA guaranteed output current
• Stable with 1µF ceramic output capacitors
• Low dropout voltage: 155mV @ 150mA
• Excellent load/line transient response
• Low quiescent current: 29µA
• High PSRR: 70dB
• Thermal-shutdown and current-limit protection





Applications

• USB dongles
• Wireless LANs
• PC Desktops, laptops, and tablets
• Battery-powered equipment
• Digital still and video cameras
• 5V general purpose



Specifications

Attribute Attribute Value
Manufacturer Microchip Technology
Product Category Linear Voltage Regulators
Series -
Packaging Alternate Packaging
Package-Case 4-UDFN Exposed Pad
Operating-Temperature -40°C ~ 125°C
Mounting-Type Surface Mount
Supplier-Device-Package 4-DFN (1x1)
Voltage-Input 2.5 V ~ 6 V
Current-Output 150mA
Voltage-Output 1.2V
Regulator-Topology Positive Fixed
Voltage-Dropout-Typical 0.18V @ 150mA
Number-of-Regulators 1 Regulator
Current-Limit-Min 200mA

Descriptions

Linear Voltage Regulator IC Positive Fixed 1 Output 1.2V 150mA 4-DFN (1x1)
LDO Regulator Pos 1.2V 0.15A 4-Pin TDFN EP T/R
LDO Voltage Regulators Single LDO, Hi-Perf. 150mA, 1.2 Vout
