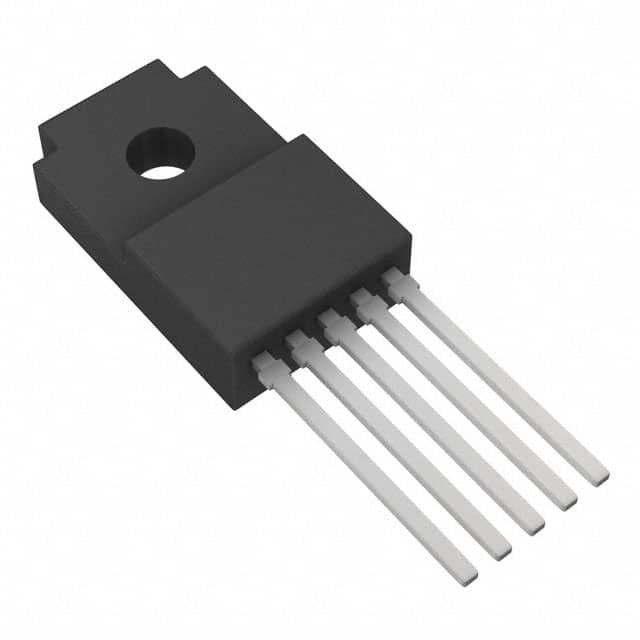

BA50DD0WT IC REG LINEAR 5V 2A TO220FP-5 Rohm Semiconductor
| Brand Name | Rohm Semiconductor |
|---|---|
| Model Number | BA50DD0WT |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 25V |
| Voltage - Output (Min/Fixed) | 5V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.7V @ 2A | Current - Output | 2A |
| Current - Quiescent (Iq) | 120 µA | Current - Supply (Max) | - |
| PSRR | 55dB (120Hz) | Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Over Voltage | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole | Package / Case | TO-220-5 Full Pack |
| Supplier Device Package | TO-220FP-5 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| BA50DD0WT | IC REG LINEAR 5V 2A TO220FP-5 | |
| BA90DD0WT | IC REG LINEAR 9V 2A TO220-5 | |
| BAJ2DD0WT | IC REG LINEAR 12V 2A TO220-5 | |
| BAJ2CC0WT | IC REG LINEAR 12V 1A TO220-5 | |
| BA30DD0WT | IC REG LINEAR 3V 2A TO220FP-5 | |
| BA33DD0WT | IC REG LINEAR 3.3V 2A TO220FP | |
| BA00JC5WT | IC REG LIN POS ADJ 1.5A TO220FP | |
| BA05CC0WT | IC REG LINEAR 5V 1A TO220-5 | |
| BA50BC0WT | IC REG LINEAR 5V 1A TO220-5 | |
| BA033CC0WT | IC REG LINEAR 3.3V 1A TO220-5 | |
| BA00CC0WT | IC REG LINEAR POS ADJ 1A TO220-5 | |
| BA00BC0WT | IC REG LINEAR POS ADJ 1A TO220-5 | |
| BA90BC0WT | IC REG LINEAR 9V 1A TO220-5 | |
| BA00CC0WT-V5 | IC REG LINEAR POS ADJ 1A TO220FP | |
| BA05ST | IC REG LINEAR 5V 1A TO220FP-5 | |
| BA033ST | IC REG LINEAR 3.3V 1A TO220FP-5 | |
| BA09CC0WT | IC REG LINEAR 9V 1A TO220-5 | |
| BA00AST | IC REG LIN POS ADJ 1A TO220-5 FP | |
| BA00JC5WT-V5 | IC REG LIN POS ADJ 1.5A TO220FP | |
| BA33BC0WT | IC REG LINEAR 3.3V 1A TO220-5 | |
| BA00BC0WT-V5 | IC REG LINEAR POS ADJ 1A TO220-5 | |
| BA50BC0WT-V5 | IC REG LINEAR 5V 1A TO220FP-5 | |
| BA25BC0WT-V5 | IC REG LINEAR 2.5V 1A TO220FP-5 | |
| BA90BC0WT-V5 | IC REG LINEAR 9V 1A TO220-5 | |
| BA15BC0WT | IC REG LINEAR 1.5V 1A TO220-5 | |
| BA25BC0WT | IC REG LINEAR 2.5V 1A TO220-5 | |
| BA30BC0WT | IC REG LINEAR 3V 1A TO220-5 | |
| BA60BC0WT | IC REG LINEAR 6V 1A TO220-5 | |
| BA70BC0WT | IC REG LINEAR 7V 1A TO220-5 | |
| BA80BC0WT | IC REG LINEAR 8V 1A TO220-5 | |
| BAJ0BC0WT | IC REG LINEAR 10V 1A TO220-5 | |
| BA03CC0WT | IC REG LINEAR 3V 1A TO220-5 | |
| BA07CC0WT | IC REG LINEAR 7V 1A TO220-5 | |
| BA08CC0WT | IC REG LINEAR 8V 1A TO220-5 | |
| BAJ0CC0WT-F | IC REG LINEAR 10V 1A TO220-5 | |
| BA05CC0WT-V5 | IC REG LINEAR 5V 1A TO220-5 | |
| BAJ2CC0WT-V5 | IC REG LINEAR 12V 1A TO220-5 | |
| BA18BC0WT | IC REG LINEAR 1.8V 1A TO220-5 | |
| BA18BC0WT-V5 | IC REG LINEAR 1.8V 1A TO220FP-5 | |
| BA15DD0WT | IC REG LINEAR 1.5V 2A TO220FP-5 | |
| BA18DD0WT | IC REG LINEAR 1.8V 2A TO220FP-5 | |
| BAJ6DD0WT | IC REG LINEAR 16V 2A TO220-5 | |
| BA07ST | IC REG LINEAR 7V 1A TO220FP | |
| BA09ST | IC REG LINEAR 9V 1A TO220FP-5 | |
| BA12ST | IC REG LINEAR 12V 1A TO220FP-5 | |
| BA06CC0WT | IC REG LINEAR 6V 1A TO220-5 | |
| BA25DD0WT | IC REG LINEAR 2.5V 2A TO220FP-5 | |
| BA33BC0WT-V5 | IC REG LINEAR 3.3V 1A TO220-5 |
Product Description
Product Details
Description
Standard Fixed Output LDO Regulators are low-saturation regulators, available for output s up to 2A / 1A. ROHM has a wide output voltage range and package lineup with and without shutdown switches. This IC has a built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits, a thermal shut-down circuit that protects the IC from damage due to overloading and an over-voltage protection circuit that protects the IC from surges generated in the power supply line of the IC.
Features
1) Maximum output current : 2A (BA□□ DD0),1A(BA□□ CC0)2) ± 1% highly accurate output voltage (BA□□ DD0)
3) Low saturation with PNP output
4) Built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits
5) Built-in thermal shutdown circuit for protecting the IC from damage due to overloading
6) Built-in over- voltage protection circuit that prevents the destruction of the IC due to power supply surges
7) TO220FP and HRP5 packaging (BA□□ DD0) ,TO220FP and TO252 packaging(BA□□ CC0)
Applications
Used in DSP power supplies for DVD and CD players, FPDs, televisions, personal computers or any other consumer device
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | ROHM |
| Product Category | Linear Voltage Regulators |
| Series | BA50DD0WT |
| Packaging | Tape & Reel (TR) |
| Unit-Weight | 0.105822 oz |
| Mounting-Style | Through Hole |
| Package-Case | TO-220-5 Full Pack |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Through Hole |
| Output-Type | Fixed |
| Supplier-Device-Package | TO-220FP-5 |
| Voltage-Input | Up to 25V |
| Number-of-Outputs | 1 Output |
| Current-Output | 2A |
| Voltage-Output | 5V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 0.45V @ 2A |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
| Pd-Power-Dissipation | 2 W |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 5 V |
| Input-Voltage-MAX | 25 V |
| Output-Current | 2 A |
| Input-Voltage-MIN | 3 V |
| Load-Regulation | 200 mV |
| Voltage-Regulation-Accuracy | 1 % |
| Package-Case | TO-220-5 |
| Dropout-Voltage | 0.3 V at 1 A |
| Dropout-Voltage-Max | 700 mV |
| Line-Regulation | 50 mV |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 5V 2A TO-220FP-5
