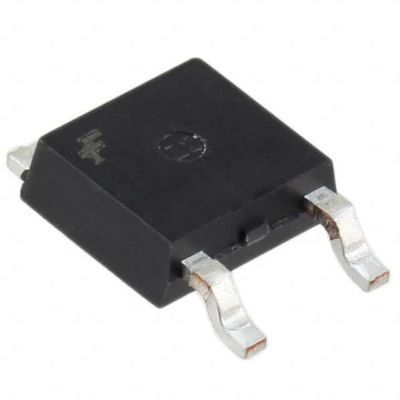

FAN1581DX IC REG LINEAR POS ADJ 5A TO252-5 onsemi
| Brand Name | onsemi |
|---|---|
| Model Number | FAN1581DX |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Adjustable |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 7V |
| Voltage - Output (Min/Fixed) | 1.25V | Voltage - Output (Max) | 5.7V |
| Voltage Dropout (Max) | 1.18V @ 5A | Current - Output | 5A |
| Current - Quiescent (Iq) | 6 MA | Current - Supply (Max) | - |
| PSRR | 80dB (120Hz) | Control Features | - |
| Protection Features | Over Current, Over Temperature | Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | TO-252-5, DPak (4 Leads + Tab), TO-252AD |
| Supplier Device Package | TO-252-5 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| FAN1581DX | IC REG LINEAR POS ADJ 5A TO252-5 | |
| FAN1581D15X | IC REG LINEAR 1.5V 5A TO252-5 | |
| FAN1581D25X | IC REG LINEAR 2.5V 5A TO252-5 | |
| MC7805ECDTXM | IC REG LINEAR 5V 1A TO252 | |
| MC7809ECDTX | IC REG LINEAR 9V 1A TO252 | |
| KA7806ERTM | IC REG LINEAR 6V 1A DPAK | |
| MC7806ECDTX | IC REG LINEAR 6V 1A TO252 | |
| MC7810ECDTXM | IC REG LINEAR 10V 1A TO252 | |
| MC7808ECDTXM | IC REG LINEAR 8V 1A TO252 | |
| KA7809ERTF | IC REG LINEAR 9V 1A DPAK | |
| MC7812ECDTXM | IC REG LINEAR 12V 1A TO252 | |
| MC7809ECDTXM | IC REG LINEAR 9V 1A TO252 | |
| MC7806ECDTXM | IC REG LINEAR 6V 1A TO252 | |
| MC7808ECDTX | IC REG LINEAR 8V 1A TO252 | |
| MC7810ECDTX | IC REG LINEAR 10V 1A TO252 | |
| KA78M08RTM | IC REG LINEAR 8V 500MA DPAK | |
| KA78M08RTF | IC REG LINEAR 8V 500MA DPAK | |
| KA78M06RTF | IC REG LINEAR 6V 500MA DPAK | |
| KA79M08RTF | IC REG LINEAR -8V 500MA DPAK | |
| KA78M05RTF | IC REG LINEAR 5V 500MA DPAK | |
| MC78M12CDTXM | IC REG LINEAR 12V 500MA DPAK | |
| MC78M12CDTX | IC REG LINEAR 12V 500MA DPAK | |
| MC78M08CDTX | IC REG LINEAR 8V 500MA DPAK | |
| KA78M12RTM | IC REG LINEAR 12V 500MA DPAK | |
| KA78M12RTF | IC REG LINEAR 12V 500MA DPAK | |
| MC78M08CDTXM | IC REG LINEAR 8V 500MA DPAK | |
| LM317MDTX | IC REG LINEAR POS ADJ 500MA DPAK | |
| MC78M05CDTX | IC REG LINEAR 5V 500MA DPAK | |
| KA7805ERTM | IC REG LINEAR 5V 1A DPAK | |
| KA7812ERTM | IC REG LINEAR 12V 1A DPAK | |
| KA78M05RTM | IC REG LINEAR 5V 500MA DPAK | |
| KA78RM33RTF | IC REG LINEAR 3.3V 500MA DPAK | |
| KA79M05RTF | IC REG LINEAR -5V 500MA DPAK | |
| LM317MDTXM | IC REG LINEAR POS ADJ 500MA DPAK | |
| KA7805ERTF | IC REG LINEAR 5V 1A DPAK | |
| KA317MRTM | IC REG LINEAR POS ADJ 500MA DPAK | |
| KA79M12RTF | IC REG LINEAR -12V 500MA DPAK | |
| MC7812ECDTX | IC REG LINEAR 12V 1A TO252 | |
| KA7809ERTM | IC REG LINEAR 9V 1A DPAK | |
| KA78RM33RTM | IC REG LINEAR 3.3V 500MA DPAK | |
| MC7805ECDTX | IC REG LINEAR 5V 1A TO252 | |
| KA78RH33RTF | IC REG LINEAR 3.3V 800MA TO252-3 | |
| KA78RH33RTM | IC REG LINEAR 3.3V 800MA TO252-3 | |
| KA79M05RTM | IC REG LINEAR -5V 500MA DPAK | |
| KA7808ERTM | IC REG LINEAR 8V 1A DPAK | |
| KA79M12RTM | IC REG LINEAR -12V 500MA DPAK | |
| LM317MDTX_G | IC REG LINEAR POS ADJ 500MA DPAK |
Product Description
Product Details
Description
The FAN1581, FAN1581-1.2, FAN1581-1.5, and FAN1581- 2.5 are ultra-low dropout regulators with 5A output current capability. These devices have been optimized for low voltage applications including VTT bus termination, where transient response and minimum input voltage are critical. The FAN1581 is ideal for low voltage microprocessor applications requiring a regulated output from 1.3V to 5.7V with a power input supply of 1.75V to 6.5V. The FAN1581-1.5 offers fixed 1.5V with 5A current capabilities for GTL+ bus VTT termination. Additionally, the FAN1581-1.2 offers fixed 1.2V output for CPU Bus termination. The FAN1581-2.5 offers fixed 2.5V with 5A current capability for logic IC operation and processors while minimizing the overall power dissipation.
Features
• Ultra Low dropout voltage, 0.4V typical at 5A• 1.2V Versions available for GTL termination
• Remote sense operation
• Fast transient response
• Load regulation: 0.05% typical
• 0.5% typical initial accuracy
• On-chip thermal limiting
• TO-263, TO-252 and TO-220 packages
Applications
• Support of GTL+ bus supply• Low voltage logic supply
• Embedded Processor supplies
• Split plane regulator
• 2.5V, and 1.8V Logic Families
• DDR Termination Supply
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | onsemi |
| Product Category | Linear Voltage Regulators |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Package-Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Operating-Temperature | 0°C ~ 125°C |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | TO-252-3 |
| Voltage-Input | Up to 7V |
| Current-Output | 5A |
| Voltage-Output | 1.25 V ~ 5.7 V |
| Regulator-Topology | Positive Adjustable |
| Voltage-Dropout-Typical | 0.4V @ 5A |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | 5.2A |
Descriptions
Linear Voltage Regulator IC Positive Adjustable 1 Output 1.25 V ~ 5.7 V 5A TO-252-5
