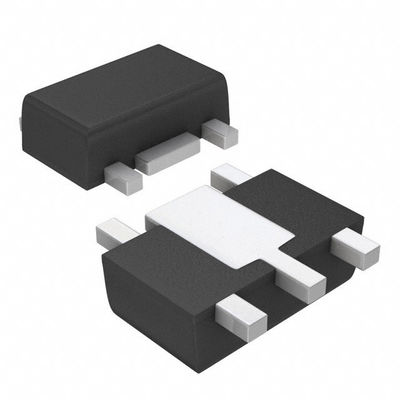

AP7361C-Y5-13 IC REG LINEAR POS ADJ 1A SOT89-5 Diodes Incorporated
| Brand Name | Diodes Incorporated |
|---|---|
| Model Number | AP7361C-Y5-13 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Adjustable |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 0.8V | Voltage - Output (Max) | 5V |
| Voltage Dropout (Max) | 0.36V @ 1A (Typ) | Current - Output | 1A |
| Current - Quiescent (Iq) | 80 µA | Current - Supply (Max) | - |
| PSRR | 75dB ~ 55dB (1kHz ~ 10kHz) | Control Features | Enable |
| Protection Features | Over Current, Over Temperature | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Package / Case | SOT-89-5/6 |
| Supplier Device Package | SOT-89-5 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| AP7361C-Y5-13 | IC REG LINEAR POS ADJ 1A SOT89-5 | |
| AP7361C-33Y5-13 | IC REG LINEAR 3.3V 1A SOT89-5 | |
| AP7361C-12Y5-13 | IC REG LINEAR 1.2V 1A SOT89-5 | |
| AP7361C-25Y5-13 | IC REG LINEAR 2.5V 1A SOT89-5 | |
| AP2115R5-1.2TRG1 | IC REG LINEAR 1.2V 1A SOT89-5 | |
| AP2115R5-1.8TRG1 | IC REG LINEAR 1.8V 1A SOT89-5 | |
| AP2115R5-2.5TRG1 | IC REG LINEAR 2.5V 1A SOT89-5 | |
| AP2112R5-2.5TRG1 | IC REG LINEAR 2.5V 600MA SOT89-5 | |
| AP2112R5-1.8TRG1 | IC REG LINEAR 1.8V 600MA SOT89-5 | |
| AP2112R5-3.3TRG1 | IC REG LINEAR 3.3V 600MA SOT89-5 | |
| AP2115R5-3.3TRG1 | IC REG LINEAR 3.3V 1A SOT89-5 | |
| AP7361C-10Y5-13 | IC REG LINEAR 1V 1A SOT89-5 | |
| AP7361C-15Y5-13 | IC REG LINEAR 1.5V 1A SOT89-5 | |
| AP7361C-18Y5-13 | IC REG LINEAR 1.8V 1A SOT89-5 | |
| AP7361C-28Y5-13 | IC REG LINEAR 2.8V 1A SOT89-5 | |
| AP2112R5-1.2TRG1 | IC REG LINEAR 1.2V 600MA SOT89-5 | |
| AP2112R5-2.6TRG1 | IC REG LINEAR 2.6V 600MA SOT89-5 | |
| AP2112R5A-1.2TRG1 | IC REG LINEAR 1.2V 600MA SOT89-5 | |
| AP2112R5A-1.8TRG1 | IC REG LINEAR 1.8V 600MA SOT89-5 | |
| AP2112R5A-2.5TRG1 | IC REG LINEAR 2.5V 600MA SOT89-5 | |
| AP2112R5A-2.6TRG1 | IC REG LINEAR 2.6V 600MA SOT89-5 | |
| AP2112R5A-3.3TRG1 | IC REG LINEAR 3.3V 600MA SOT89-5 | |
| AP2115R5A-1.2TRG1 | IC REG LINEAR 1.2V 1A SOT89-5 | |
| AP2115R5A-1.8TRG1 | IC REG LINEAR 1.8V 1A SOT89-5 | |
| AP2115R5A-2.5TRG1 | IC REG LINEAR 2.5V 1A SOT89-5 | |
| AP2115R5A-3.3TRG1 | IC REG LINEAR 3.3V 1A SOT89-5 | |
| AP1119Y12L-13 | IC REG LINEAR 12V 500MA SOT89-5 | |
| AP1119Y15L-13 | IC REG LINEAR 1.5V 500MA SOT89-5 | |
| AP1119Y18L-13 | IC REG LINEAR 1.8V 500MA SOT89-5 | |
| AP1119Y25L-13 | IC REG LINEAR 2.5V 500MA SOT89-5 | |
| AP1119Y33L-13 | IC REG LINEAR 3.3V 500MA SOT89-5 | |
| AP1119Y50L-13 | IC REG LINEAR 5V 500MA SOT89-5 | |
| AP1119Y90L-13 | IC REG LINEAR 9V 500MA SOT89-5 | |
| AP131-15YL-13 | IC REG LINEAR 1.5V 300MA SOT89-5 | |
| AP131-18YL-13 | IC REG LINEAR 1.8V 300MA SOT89-5 | |
| AP131-20YL-13 | IC REG LINEAR 2V 300MA SOT89-5 | |
| AP131-25YL-13 | IC REG LINEAR 2.5V 300MA SOT89-5 | |
| AP131-28YL-13 | IC REG LINEAR 2.8V 300MA SOT89-5 | |
| AP131-30YL-13 | IC REG LINEAR 3V 300MA SOT89-5 | |
| AP131-33YL-13 | IC REG LINEAR 3.3V 300MA SOT89-5 | |
| AP131-35YL-13 | IC REG LINEAR 3.5V 300MA SOT89-5 |
Product Description
Product Details
Description
The AP7361C is a 1A, adjustable and fixed output voltage, ultra-low dropout linear regulator with enable. The device includes pass element, error amplifier, band-gap reference, current limit and thermal shutdown circuitry. The device is turned on when EN pin is set to logic high level.
Features
■ Wide Input Voltage Range: 2.2V to 6.0V■ Output Voltage Accuracy: ± 1%
■ Very Low Dropout Voltage (3.3V): 360mV at 1A Typical
■ Low Quiescent Current (IQ): 60µA Typical
■ Adjustable Output Voltage Range: 0.8V to 5.0V
■ Fixed Output Options: 1.0V, 1.2V, 1.5V, 1.8V, 2.5V, 2.8V and 3.3V
■ High PSRR: 75dB @ 1kHz
■ Current Limit: 1.5A
■ Fold-Back Short Circuit Protection: 200mA
■ Thermal Shutdown Protection
■ Stable with MLCC, E-Cap, Tan-Cap or Solid Capacitor 2.2µF
■ Ambient Temperature Range: -40°C to +85°C
■ Available in “Green” Molding Compound (No Br, Sb)
■ Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
■ Halogen and Antimony Free. “Green” Device (Note 3)
Applications
■ LCD-TV, Monitor■ Set-Top-Box
■ Home Electrical Appliances
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | |
| Product Category | Linear Voltage Regulators |
| Series | AP7361C |
| Product | LDO Regulators |
| Type | LDO Linear Regulator |
| Packaging | Alternate Packaging |
| Mounting-Style | Through Hole |
| Package-Case | SOT-89-5/6 |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Output-Type | Adjustable |
| Supplier-Device-Package | SOT-89-5 |
| Voltage-Input | 2.2 V ~ 6 V |
| Number-of-Outputs | 1 Output |
| Current-Output | 1A |
| Voltage-Output | 0.8 V ~ 5 V |
| Regulator-Topology | Positive Adjustable |
| Voltage-Dropout-Typical | 0.36V @ 1A |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | 1.1A |
| Pd-Power-Dissipation | 800 mW |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 800 mV to 5 V |
| Operating-Supply-Current | 60 uA |
| Input-Voltage-MAX | 6 V |
| Output-Current | 1 A |
| Input-Voltage-MIN | 2.2 V |
| Load-Regulation | 1 % |
| Voltage-Regulation-Accuracy | 1 % |
| Package-Case | SOT-89-5 |
| Reference-Voltage | 800 mV |
| Dropout-Voltage | 360 mV at 1 A |
| Line-Regulation | 0.01 %/V |
| Power Supply Ripple Rejection (PSRR) | 55 dB |
Descriptions
Linear Voltage Regulator IC Positive Adjustable 1 Output 0.8 V ~ 5 V 1A SOT-89-5
Single LDO Linear Regulator
LDO Voltage Regulators 1A LDO Reg w/Enable ADJ 6.5Vin 800mW
