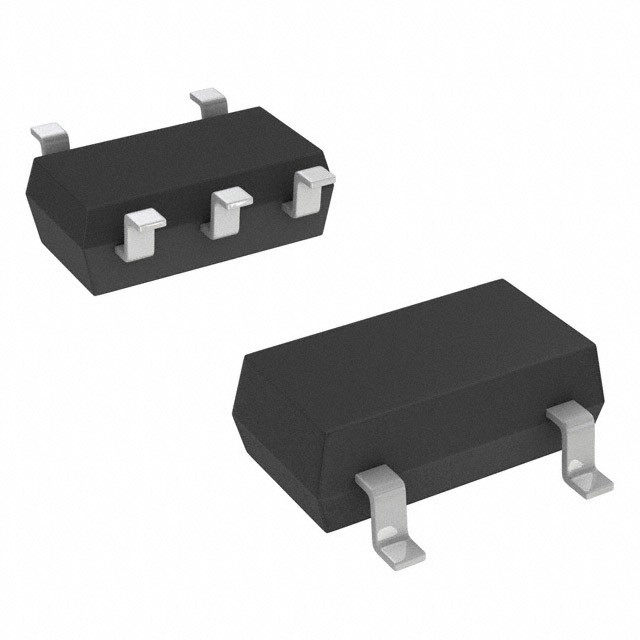

AN80L18RMS IC REG LINEAR 1.8V 150MA MINI-5D Panasonic Electronic Components
| Brand Name | Panasonic Electronic Components |
|---|---|
| Model Number | AN80L18RMS |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 14.5V |
| Voltage - Output (Min/Fixed) | 1.8V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - | Current - Output | 150mA |
| Current - Quiescent (Iq) | 5 MA | Current - Supply (Max) | - |
| PSRR | 70dB (120Hz) | Control Features | Enable |
| Protection Features | Over Current | Operating Temperature | -30°C ~ 85°C |
| Mounting Type | Surface Mount | Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | MINI-5D |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| AN80L18RMS | IC REG LINEAR 1.8V 150MA MINI-5D | |
| AN80L18RMSTX | IC REG LINEAR 1.8V 150MA MINI-5D | |
| AN80L19RMS | IC REG LINEAR 1.9V 150MA MINI-5D | |
| AN80L20RMS | IC REG LINEAR 2V 150MA MINI-5D | |
| AN80L20RMSTX | IC REG LINEAR 2V 150MA MINI-5D | |
| AN80L21RMS | IC REG LINEAR 2.1V 150MA MINI-5D | |
| AN80L21RMSTX | IC REG LINEAR 2.1V 150MA MINI-5D | |
| AN80L22RMS | IC REG LINEAR 2.2V 150MA MINI-5D | |
| AN80L22RMSTX | IC REG LINEAR 2.2V 150MA MINI-5D | |
| AN80L25RMS | IC REG LINEAR 2.5V 150MA MINI-5D | |
| AN80L25RMSTX | IC REG LINEAR 2.5V 150MA MINI-5D | |
| AN80L28RMS | IC REG LINEAR 2.8V 150MA MINI-5D | |
| AN80L28RMSTX | IC REG LINEAR 2.8V 150MA MINI-5D | |
| AN80L29RMS | IC REG LINEAR 2.9V 150MA MINI-5D | |
| AN80L29RMSTX | IC REG LINEAR 2.9V 150MA MINI-5D | |
| AN80L30RMS | IC REG LINEAR 3V 150MA MINI-5D | |
| AN80L30RMSTX | IC REG LINEAR 3V 150MA MINI-5D | |
| AN80L31RMS | IC REG LINEAR 3.1V 150MA MINI-5D | |
| AN80L31RMSTX | IC REG LINEAR 3.1V 150MA MINI-5D | |
| AN80L32RMS | IC REG LINEAR 3.2V 150MA MINI-5D | |
| AN80L32RMSTX | IC REG LINEAR 3.2V 150MA MINI-5D | |
| AN80L33RMS | IC REG LINEAR 3.3V 150MA MINI-5D | |
| AN80L33RMSTX | IC REG LINEAR 3.3V 150MA MINI-5D | |
| AN80L34RMS | IC REG LINEAR 3.4V 150MA MINI-5D | |
| AN80L34RMSTX | IC REG LINEAR 3.4V 150MA MINI-5D | |
| AN80L35RMS | IC REG LINEAR 3.5V 150MA MINI-5D | |
| AN80L35RMSTX | IC REG LINEAR 3.5V 150MA MINI-5D | |
| AN80L36RMS | IC REG LINEAR 3.6V 150MA MINI-5D | |
| AN80L36RMSTX | IC REG LINEAR 3.6V 150MA MINI-5D | |
| AN80L48RMS | IC REG LINEAR 4.8V 150MA MINI-5D | |
| AN80L48RMSTX | IC REG LINEAR 4.8V 150MA MINI-5D | |
| AN80L49RMS | IC REG LINEAR 4.9V 150MA MINI-5D | |
| AN80L49RMSTX | IC REG LINEAR 4.9V 150MA MINI-5D | |
| AN80L50RMS | IC REG LINEAR 5V 150MA MINI-5D | |
| AN80L50RMSTX | IC REG LINEAR 5V 150MA MINI-5D | |
| AN80L51RMS | IC REG LINEAR 5.1V 150MA MINI-5D | |
| AN80L51RMSTX | IC REG LINEAR 5.1V 150MA MINI-5D | |
| AN80L52RMS | IC REG LINEAR 5.2V 150MA MINI-5D | |
| AN80L52RMSTX | IC REG LINEAR 5.2V 150MA MINI-5D |
Product Description
Product Details
Positive output, low dropout voltage regulator (150 mA type)
Overview
The AN80LxxRMS series is a 0.15 A, low dropout, positive voltage regulator with reset function. 20 classifications of output voltages, 1.8 V, 1.9 V, 2.0 V, 2.1 V, 2.2 V, 2.5 V, 2.8 V, 2.9 V, 3.0 V, 3.1 V, 3.2 V, 3.3 V, 3.4 V, 3.5 V, 3.6 V, 4.8 V, 4.9 V, 5.0 V, 5.1 V and 5.2 V are available. In addition, it is adopting the surface mounting type package, so that it is most suited for miniaturization and weight reduction of set equipment.
Features
• Minimum input and output voltage difference: 0.4 V max.• High accuracy output voltage: (allowance: ±3%)
• Built-in reset function terminal (high: active)
• Built-in overcurrent limit circuit
• Built-in rush current prevention circuit at input voltage rise
• Output voltage: 1.8 V to 5.2 V
Applications
• Cellular phone, PHS, analog cordless phone, other small sized portable equipment
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Panasonic |
| Product Category | Linear Voltage Regulators |
| Series | - |
| Packaging | Bulk |
| Package-Case | SC-74A, SOT-753 |
| Operating-Temperature | -30°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | MINI-5D |
| Voltage-Input | 2.2 V ~ 14.5 V |
| Current-Output | 150mA |
| Voltage-Output | 1.8V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | - |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | 180mA |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 1.8V 150mA MINI-5D
