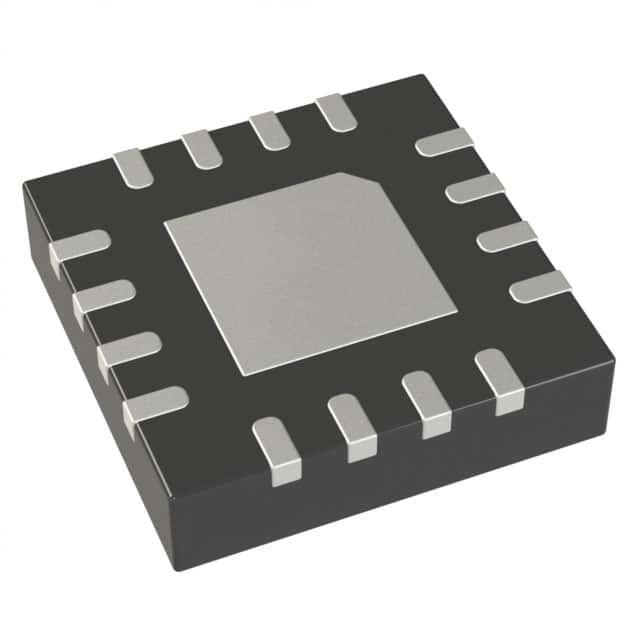

ADP1762ACPZ-R7 IC REG LINEAR POS ADJ 2A 16LFCSP Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | ADP1762ACPZ-R7 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Adjustable |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 1.98V |
| Voltage - Output (Min/Fixed) | 0.5V | Voltage - Output (Max) | 1.5V |
| Voltage Dropout (Max) | 0.095V @ 2A | Current - Output | 2A |
| Current - Quiescent (Iq) | 8 MA | Current - Supply (Max) | 14 MA |
| PSRR | 63dB ~ 34dB (10kHz ~ 1MHz) | Control Features | Enable, Power Good, Soft Start |
| Protection Features | Current Limit, Thermal Overload | Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Package / Case | 16-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP (3x3) |
