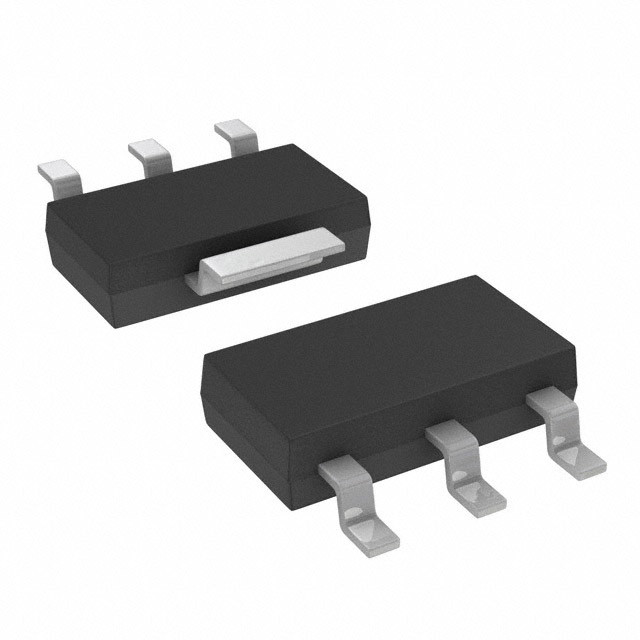

TLE42744GSV33HTMA1 IC REG LIN 3.3V 400MA SOT223-4 Infineon Technologies
| Brand Name | Infineon Technologies |
|---|---|
| Model Number | TLE42744GSV33HTMA1 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 3.3V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.5V @ 250mA | Current - Output | 400mA |
| Current - Quiescent (Iq) | 220 µA | Current - Supply (Max) | 30 MA |
| PSRR | 60dB (100Hz) | Control Features | - |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit | Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Surface Mount | Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | PG-SOT223-4 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| TLE42744GSV33HTMA1 | IC REG LIN 3.3V 400MA SOT223-4 | |
| TLE42662GHTMA2 | IC REG LINEAR 5V 150MA SOT223-4 | |
| TLE42664GHTMA2 | IC REG LINEAR 5V 100MA SOT223-4 | |
| TLE42662GSV33HTMA2 | IC REG LIN 3.3V 150MA SOT223-4 | |
| TLE4264GHTMA1 | IC REG LINEAR 5V 100MA SOT223-4 | |
| TLE42644GHTSA3 | IC REG LINEAR 5V 100MA SOT223-4 | |
| TLE4266GHTMA1 | IC REG LINEAR 5V 120MA SOT223-4 | |
| TLE42344GHTSA1 | IC REG LINEAR 5V 100MA SOT223-4 | |
| TLE42364GHTMA1 | IC REG LINEAR 5V 100MA SOT223-4 | |
| TLE4264GHTSA1 | IC REG LINEAR 5V 100MA SOT223-4 | |
| TLE42642GHTSA2 | IC REG LINEAR 5V 150MA SOT223-4 | |
| IFX1117GSV | IC REG LIN POS ADJ 1A SOT223-4 | |
| TLE4484G | IC REG LINEAR 5V/15V SOT223-4 | |
| TLE4274GS V33 LG | IC REG LIN 3.3V 400MA SOT223-4 | |
| TLE4264G | IC REG LINEAR 5V 120MA SOT223-4 | |
| TLE42662GNTMA1 | IC REG LINEAR 5V 150MA SOT223-4 | |
| TLE4266-2GS V33 | IC REG LIN 3.3V 150MA SOT223-4 | |
| TLE4274GSV25HTSA1 | IC REG LIN 2.5V 400MA SOT223-4 | |
| TLE4274GSV33HTSA1 | IC REG LIN 3.3V 400MA SOT223-4 | |
| IFX1117GS V33 | IC REG LINEAR 3.3V 1A SOT223-4 | |
| IFX25001MEV25HTSA1 | IC REG LIN 2.5V 400MA SOT223-4 | |
| IFX25001MEV33HTSA1 | IC REG LIN 3.3V 400MA SOT223-4 | |
| TLE42644G | IC REG LINEAR 5V 100MA SOT223-4 | |
| TLE42664G | IC REG LINEAR 5V 100MA SOT223-4 | |
| IFX8117MEVHTMA1 | IC REG LIN POS ADJ 1A SOT223-4 | |
| IFX8117MEV33HTMA1 | IC REG LINEAR 3.3V 1A SOT223-4 | |
| IFX8117MEV50HTMA1 | IC REG LINEAR 5V 1A SOT223-4 | |
| IFX1117MEVHTMA1 | IC REG LIN POS ADJ 1A SOT223-4 | |
| TLE4264-2G | IC REG LINEAR 5V 150MA SOT223-4 | |
| IFX1117MEV33HTMA1 | IC REG LINEAR 3.3V 1A SOT223-4 | |
| TLE42744GSV33HUMA1 | IC REG LIN 3.3V 400MA SOT223-4 | |
| TLE4274GSV25NT | IC REG LIN 2.5V 400MA SOT223-4 | |
| TLE4274GSV25HTSA2 | IC REG LIN 2.5V 400MA SOT223-4 | |
| TLE4274GSV33HTSA2 | IC REG LIN 3.3V 400MA SOT223-4 | |
| TLE4274GSV33NTSA1 | IC REG LIN 3.3V 400MA SOT223-4 | |
| IFX25001MEV33HTSA2 | IC REG LIN 3.3V 400MA SOT223-4 | |
| TLE4266GSV10HTMA1 | IC REG LINEAR 10V 120MA SOT223-4 |
Product Description
Product Details
Description
The TLE42744 is a monolithic integrated low dropout voltage regulator for load currents up to 400 mA. An input voltage up to 40 V is regulated to VQ,nom = 5 V / 3.3 V with a precision of ±2%. The device is designed for the harsh environment of automotive applications. Therefore it is protected against overload, short circuit and overtemperature conditions by the implemented output current limitation and the overtemperature shutdown circuit. The TLE42744 can be also used in all other applications requiring a stabilized 5 V / 3.3 V voltage.Due to its very low quiescent current the TLE42744 is dedicated for use in applications permanently connected to VBAT.
Features
• Very Low Current Consumption• Output Voltages 5 V and 3.3 V ±2%
• Output Current up to 400 mA
• Very Low Dropout Voltage
• Output Current Limitation
• Reverse Polarity Protection
• Overtemperature Shutdown
• Wide Temperature Range From -40°C up to 150°C
• Green Product (RoHS compliant)
• AEC Qualified
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Infineon |
| Product Category | Linear Voltage Regulators |
| Series | Automotive, AEC-Q100 |
| Packaging | Tape & Reel (TR) |
| Package-Case | TO-261-4, TO-261AA |
| Operating-Temperature | -40°C ~ 150°C |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | PG-SOT223-4 |
| Voltage-Input | 4.7 V ~ 40 V |
| Current-Output | 400mA |
| Voltage-Output | 3.3V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | - |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | 400mA |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 400mA PG-SOT223-4
LDO Regulator Pos 3.3V 0.4A Automotive 4-Pin(3+Tab) SOT-223 T/R
