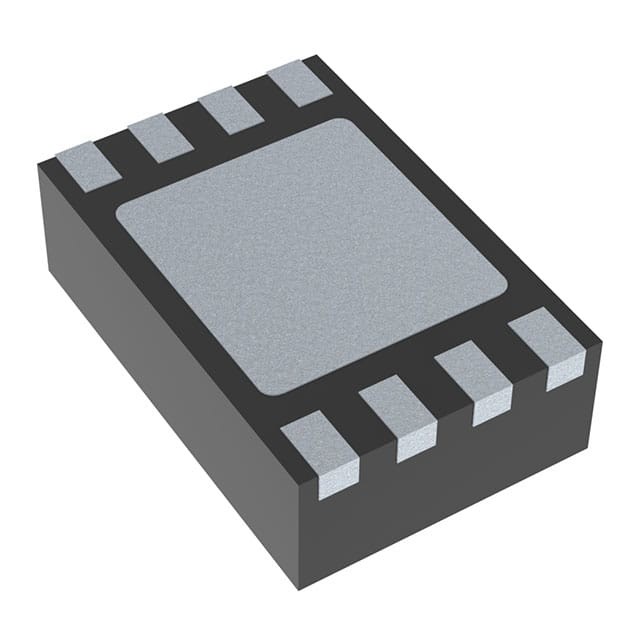

ISL9005AIRBZ-T IC REG LINEAR 1.5V 300MA 8DFN Renesas Electronics America Inc
| Brand Name | Renesas Electronics America Inc |
|---|---|
| Model Number | ISL9005AIRBZ-T |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 1.5V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - | Current - Output | 300mA |
| Current - Quiescent (Iq) | 75 µA | Current - Supply (Max) | - |
| PSRR | - | Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Package / Case | 8-VFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (2x3) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| ISL9005AIRBZ-T | IC REG LINEAR 1.5V 300MA 8DFN | |
| ISL9005AIRCZ-T | IC REG LINEAR 1.8V 300MA 8DFN | |
| ISL9005AIRFZ-T | IC REG LINEAR 2.5V 300MA 8DFN | |
| ISL9005AIRJZ-T | IC REG LINEAR 2.8V 300MA 8DFN | |
| ISL9005AIRKZ-T | IC REG LINEAR 2.85V 300MA 8DFN | |
| ISL9005AIRNZ-T | IC REG LINEAR 3.3V 300MA 8DFN | |
| ISL9001AIRCZ-T | IC REG LINEAR 1.8V 300MA 8DFN | |
| ISL9001AIRKZ-T | IC REG LINEAR 2.85V 300MA 8DFN | |
| ISL9001AIRJZ-T | IC REG LINEAR 2.8V 300MA 8DFN | |
| ISL9001AIRFZ-T | IC REG LINEAR 2.5V 300MA 8DFN | |
| ISL9001AIRNZ-T | IC REG LINEAR 3.3V 300MA 8DFN | |
| ISL9001AIRBZ-T | IC REG LINEAR 1.5V 300MA 8DFN | |
| ISL9005AIRLZ-T | IC REG LINEAR 2.9V 300MA 8DFN | |
| ISL9001AIRRZ-T | IC REG LINEAR 2.6V 300MA 8DFN | |
| ISL9005AIRMZ-T | IC REG LINEAR 3V 300MA 8DFN | |
| ISL9001AIRMZ-T | IC REG LINEAR 3V 300MA 8DFN | |
| ISL9005AIRRZ-T | IC REG LINEAR 2.6V 300MA 8DFN | |
| ISL9005IRBZ-T | IC REG LINEAR 1.5V 300MA 8DFN | |
| ISL9005IRCZ-T | IC REG LINEAR 1.8V 300MA 8DFN | |
| ISL9005IRFZ-T | IC REG LINEAR 2.5V 300MA 8DFN | |
| ISL9005IRJZ-T | IC REG LINEAR 2.8V 300MA 8DFN | |
| ISL9001AIRLZ-T | IC REG LINEAR 2.9V 300MA 8DFN | |
| ISL9005IRLZ-T | IC REG LINEAR 2.9V 300MA 8DFN | |
| ISL9005IRKZ-T | IC REG LINEAR 2.85V 300MA 8DFN | |
| ISL9005IRMZ-T | IC REG LINEAR 3V 300MA 8DFN | |
| ISL9005IRNZ-T | IC REG LINEAR 3.3V 300MA 8DFN | |
| ISL9005IRRZ-T | IC REG LINEAR 2.6V 300MA 8DFN | |
| ISL9001IRRZ-T | IC REG LINEAR 2.6V 300MA 8DFN | |
| ISL9001IRJZ-T | IC REG LINEAR 2.8V 300MA 8DFN | |
| ISL9001IRBZ-T | IC REG LINEAR 1.5V 300MA 8DFN | |
| ISL9001IRCZ-T | IC REG LINEAR 1.8V 300MA 8DFN | |
| ISL9001IRFZ-T | IC REG LINEAR 2.5V 300MA 8DFN | |
| ISL9001IRKZ-T | IC REG LINEAR 2.85V 300MA 8DFN | |
| ISL9001IRLZ-T | IC REG LINEAR 2.9V 300MA 8DFN | |
| ISL9001IRMZ-T | IC REG LINEAR 3V 300MA 8DFN | |
| ISL9001IRNZ-T | IC REG LINEAR 3.3V 300MA 8DFN |
Product Description
Product Details
LDO with Low ISUPPLY, High PSRR
ISL9005A is a high performance Low Dropout linear regulator capable of sourcing 300mA current. It has a low standby current and high-PSRR and is stable with output capacitance of 1µF to 10µF with ESR of up to 200mΩ.
Features
• 300mA high performance LDO• Excellent transient response to large current steps
• Excellent load regulation: <0.1% voltage change across full range of load current
• High PSRR: 75dB @ 1kHz
• Wide input voltage capability: 2.3V to 6.5V
• Very low quiescent current: 50µA
• Low dropout voltage: typically 200mV @ 300mA
• Low output noise: typically 45µVRMS @ 100µA (1.5V)
• Stable with 1µF to 10µF ceramic capacitors
• Soft-start to limit input current surge during enable
• Current limit and overheat protection
• ±1.8% accuracy over all operating conditions
• Tiny 2mmx3mm 8 Ld DFN package
• -40°C to +85°C operating temperature range
• Pb-free (RoHS compliant)
Applications
• PDAs, cell phones and smart phones• Portable instruments, MP3 players
• Handheld devices, including medical handhelds
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Renesas |
| Product Category | Linear Voltage Regulators |
| Series | ISL9005A |
| Packaging | Tape & Reel (TR) |
| Unit-Weight | 0.001319 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 8-VFDFN Exposed Pad |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Output-Type | Fixed |
| Supplier-Device-Package | 8-DFN (2x3) |
| Voltage-Input | 2.3 V ~ 6.5 V |
| Number-of-Outputs | 1 Output |
| Current-Output | 300mA |
| Voltage-Output | 1.5V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | - |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | 350mA |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 1.5 V |
| Input-Voltage-MAX | 6.5 V |
| Output-Current | 150 mA |
| Input-Voltage-MIN | 2.3 V |
| Load-Regulation | 0.1 % |
| Voltage-Regulation-Accuracy | +/- 0.8 % |
| Package-Case | DFN-8 |
| Reference-Voltage | 1 V |
| Dropout-Voltage | 0.3 V at 300 mA |
| Dropout-Voltage-Max | 0.5 V at 300 mA |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 1.5V 300mA 8-DFN (2x3)
LDO Regulator Pos 1.5V 0.3A 8-Pin DFN EP T/R
LDO Voltage Regulators W/ANNEAL SINGLELDO LW IQ HI PSRR 1 5V
