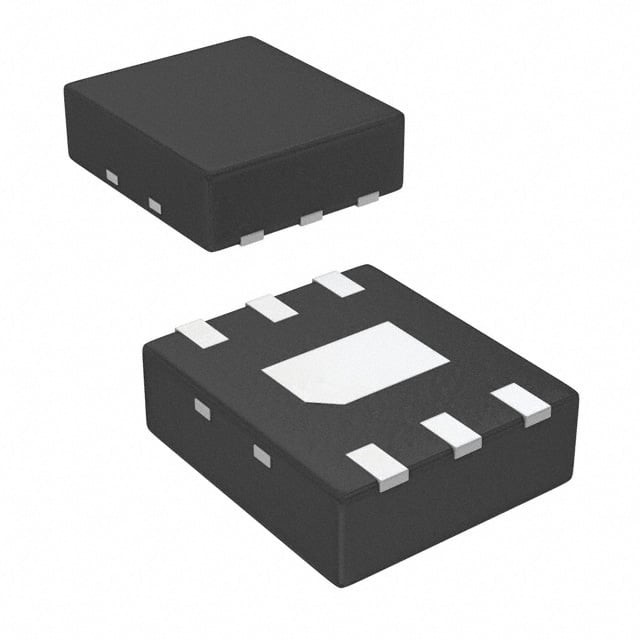

LP5900SD-3.3/NOPB IC REG LINEAR 3.3V 150MA 6WSON Texas Instruments
| Brand Name | Texas Instruments |
|---|---|
| Model Number | LP5900SD-3.3/NOPB |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3.3V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.15V @ 150mA | Current - Output | 150mA |
| Current - Quiescent (Iq) | 50 µA | Current - Supply (Max) | 230 µA |
| PSRR | 85dB ~ 40dB (100Hz ~ 100kHz) | Control Features | Enable |
| Protection Features | Over Temperature, Short Circuit | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (2.2x2.5) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| LP5900SD-3.3/NOPB | IC REG LINEAR 3.3V 150MA 6WSON | |
| LP5900SD-1.8/NOPB | IC REG LINEAR 1.8V 150MA 6WSON | |
| LP5900SDX-2.5/NOPB | IC REG LINEAR 2.5V 150MA 6WSON | |
| LP5900SD-2.7/NOPB | IC REG LINEAR 2.7V 150MA 6WSON | |
| LP5900SD-2.8/NOPB | IC REG LINEAR 2.8V 150MA 6WSON | |
| LP5900SD-2.5/NOPB | IC REG LINEAR 2.5V 150MA 6WSON | |
| LP5900SD-3.0/NOPB | IC REG LINEAR 3V 150MA 6WSON | |
| LP5900SD-2.0/NOPB | IC REG LINEAR 2V 150MA 6WSON | |
| LP5900SD-1.5/NOPB | IC REG LINEAR 1.5V 150MA 6WSON | |
| LP5900SDX-3.0/NOPB | IC REG LINEAR 3V 150MA 6WSON | |
| LP5900SDX-2.7/NOPB | IC REG LINEAR 2.7V 150MA 6WSON | |
| LP5900SD-2.2/NOPB | IC REG LINEAR 2.2V 150MA 6WSON | |
| LP5900SD-2.5 | IC REG LINEAR 2.5V 150MA 6WSON | |
| LP5900SDX-3.3/NOPB | IC REG LINEAR 3.3V 150MA 6WSON | |
| LP5900SDX-1.8/NOPB | IC REG LINEAR 1.8V 150MA 6WSON | |
| LP5900SDX-2.8/NOPB | IC REG LINEAR 2.8V 150MA 6WSON | |
| LP5900SD-1.5 | IC REG LINEAR 1.5V 150MA 6WSON | |
| LP5900SD-1.8 | IC REG LINEAR 1.8V 150MA 6WSON | |
| LP5900SD-2.0 | IC REG LINEAR 2V 150MA 6WSON | |
| LP5900SD-2.2 | IC REG LINEAR 2.2V 150MA 6WSON | |
| LP5900SD-2.7 | IC REG LINEAR 2.7V 150MA 6WSON | |
| LP5900SD-2.8 | IC REG LINEAR 2.8V 150MA 6WSON | |
| LP5900SDX-3.3 | IC REG LINEAR 3.3V 150MA 6WSON | |
| LP5900SDX-1.5/NOPB | IC REG LINEAR 1.5V 150MA 6WSON | |
| LP5900SDX-2.0/NOPB | IC REG LINEAR 2V 150MA 6WSON | |
| LP5900SDX-2.2/NOPB | IC REG LINEAR 2.2V 150MA 6WSON | |
| LP5900SDX-1.5 | IC REG LINEAR 1.5V 150MA 6WSON | |
| LP5900SDX-1.8 | IC REG LINEAR 1.8V 150MA 6WSON | |
| LP5900SDX-2.0 | IC REG LINEAR 2V 150MA 6WSON | |
| LP5900SDX-2.2 | IC REG LINEAR 2.2V 150MA 6WSON | |
| LP5900SDX-2.5 | IC REG LINEAR 2.5V 150MA 6WSON | |
| LP5900SDX-2.7 | IC REG LINEAR 2.7V 150MA 6WSON | |
| LP5900SDX-2.8 | IC REG LINEAR 2.8V 150MA 6WSON | |
| LP5900SDX-3.0 | IC REG LINEAR 3V 150MA 6WSON |
Product Description
Product Details
Description: The LP5900SD-3.3/NOPB is a fixed output voltage linear voltage regulator from Texas Instruments. It is part of the LP5900 series and is packaged in a Digi-ReelR alternate packaging.
Features:
• Output type: Fixed
• Series: LP5900
• Packaging: Digi-ReelR alternate packaging
• Line regulation: 0.05 % / V
• Output current: 0.15 A
• Quiescent current: 50 uA
• Dropout voltage max: 0.15 V at 150 mA
• Regulator topology: Positive fixed
• Unit weight: 0.000342 oz
• Current output: 150mA
• Voltage output: 3.3V
Applications:
The LP5900SD-3.3/NOPB is suitable for a wide range of applications including portable electronics, consumer electronics, automotive, and industrial applications. It is also suitable for powering microcontrollers, FPGAs, and other digital logic circuits.
Features:
• Output type: Fixed
• Series: LP5900
• Packaging: Digi-ReelR alternate packaging
• Line regulation: 0.05 % / V
• Output current: 0.15 A
• Quiescent current: 50 uA
• Dropout voltage max: 0.15 V at 150 mA
• Regulator topology: Positive fixed
• Unit weight: 0.000342 oz
• Current output: 150mA
• Voltage output: 3.3V
Applications:
The LP5900SD-3.3/NOPB is suitable for a wide range of applications including portable electronics, consumer electronics, automotive, and industrial applications. It is also suitable for powering microcontrollers, FPGAs, and other digital logic circuits.
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Texas Instruments |
| Product Category | Linear Voltage Regulators |
| Series | LP5900 |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.000342 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 6-WDFN Exposed Pad |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Output-Type | Fixed |
| Supplier-Device-Package | 6-WSON (2.2x2.5) |
| Voltage-Input | Up to 5.5V |
| Number-of-Outputs | 1 Output |
| Current-Output | 150mA |
| Voltage-Output | 3.3V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 0.08V @ 150mA |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 3.3 V |
| Input-Voltage-MAX | 5.5 V |
| Output-Current | 0.15 A |
| Input-Voltage-MIN | 2.5 V |
| Load-Regulation | 0.001 % / mA |
| Voltage-Regulation-Accuracy | +/- 2 % |
| Package-Case | WSON-6 |
| Ib-Input-Bias-Current | 25 uA |
| Quiescent-Current | 50 uA |
| Dropout-Voltage | 0.08 V at 150 mA |
| Dropout-Voltage-Max | 0.15 V at 150 mA |
| Line-Regulation | 0.05 % / V |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 150mA 6-WSON (2.2x2.5)
LDO Regulator Pos 3.3V 0.15A 6-Pin WSON EP T/R
LDO Voltage Regulators LOW-NOISE 100MA LDO
