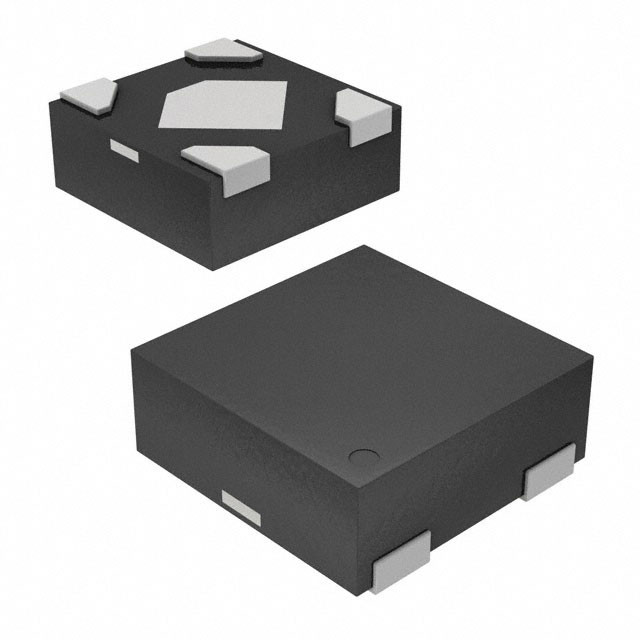

LD39030DTPU33R IC REG LINEAR 3.3V 300MA 4DFN STMicroelectronics
| Brand Name | STMicroelectronics |
|---|---|
| Model Number | LD39030DTPU33R |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3.3V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.33V @ 300mA | Current - Output | 300mA |
| Current - Quiescent (Iq) | 40 µA | Current - Supply (Max) | - |
| PSRR | 80dB ~ 55dB (1kHz ~ 100kHz) | Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Soft Start | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | 4-XDFN Exposed Pad |
| Supplier Device Package | 4-DFN (1x1) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| LD39030DTPU33R | IC REG LINEAR 3.3V 300MA 4DFN | |
| LD59030DTPU33R | IC REG LINEAR 3.3V 300MA 4DFN | |
| LD39020ADTPU30R | IC REG LINEAR 3V 200MA 4DFN | |
| LD39020DTPU18R | IC REG LINEAR 1.8V 200MA 4DFN | |
| LD39020TPU32R | IC REG LINEAR 3.2V 200MA 4DFN | |
| LD39020TPU185R | IC REG LINEAR 1.85V 200MA 4DFN | |
| LD59030DTPU28R | IC REG LINEAR 2.8V 300MA 4DFN | |
| LD39020ATPU185R | IC REG LINEAR 1.85V 200MA 4DFN | |
| LD39020ADTPU21R | IC REG LINEAR 2.1V 200MA 4DFN | |
| LD39020ADTPU33R | IC REG LINEAR 3.3V 200MA 4DFN | |
| LD39020ADTPU11R | IC REG LINEAR 1.1V 200MA 4DFN | |
| LD39020DTPU15R | IC REG LINEAR 1.5V 200MA 4DFN | |
| LD39020ADTPU25R | IC REG LINEAR 2.5V 200MA 4DFN | |
| LD39020ADTPU28R | IC REG LINEAR 2.8V 200MA 4DFN | |
| LD39020DTPU47R | IC REG LINEAR 4.7V 200MA 4DFN | |
| LD39020DTPU11R | IC REG LINEAR 1.1V 200MA 4DFN | |
| LD39020DTPU31R | IC REG LINEAR 3.1V 200MA 4DFN | |
| LD39020DTPU30R | IC REG LINEAR 3V 200MA 4DFN | |
| LD59030DTPU25R | IC REG LINEAR 2.5V 300MA 4DFN | |
| LD39030DTPU105R | IC REG LINEAR 1.05V 300MA 4DFN | |
| LD39020DTPU13R | IC REG LINEAR 1.3V 200MA 4DFN | |
| LD39020ADTPU18R | IC REG LINEAR 1.8V 200MA 4DFN | |
| LD39020ADTPU08R | IC REG LINEAR 0.8V 200MA 4DFN | |
| LD39030DTPU28R | IC REG LINEAR 2.8V 300MA 4DFN | |
| LD59030DTPU30R | IC REG LINEAR 3V 300MA 4DFN | |
| LD39020ATPU32R | IC REG LINEAR 3.2V 200MA 4DFN | |
| LD59030DTPU12R | IC REG LINEAR 1.2V 300MA 4DFN | |
| LD39020TPU33R | IC REG LINEAR 3.3V 200MA 4DFN | |
| LD39020ATPU33R | IC REG LINEAR 3.3V 200MA 4DFN | |
| LD59030DTPU18R | IC REG LINEAR 1.8V 300MA 4DFN | |
| LD39030ADTPU18R | IC REG LINEAR 1.8V 300MA 4DFN | |
| LD39030DTPU18R | IC REG LINEAR 1.8V 300MA 4DFN | |
| LD39030ADTPU28R | IC REG LINEAR 2.8V 300MA 4DFN |
Product Description
Product Details
Description
The LD39080 is a fast, ultra low drop linear regulator which operates from 2.5 V to 6 V input supply.A wide range of output options is available. The low drop voltage, low noise, and ultra low quiescent current make it suitable for low voltage microprocessors and memory applications. The device is developed on the BiCMOS process which allows the low quiescent current operation regardless of the output load current.
Features
• 0.8 A guaranteed output current• Ultra low-dropout voltage (150 mV typ. @ 0.8 A load, 20 mV typ. @150 mA load)
• Very low quiescent current (1 mA typ. @ 0.8 A load, 1 µA max.@ 25 °C in off mode)
• Logic-controlled electronic shutdown
• Current and thermal internal limit
• ±1.5% output voltage tolerance @ 25 °C
• ADJ output voltage: 1.22 V to 5.0 V
• Temperature range: - 40 to 125 °C
• Fast dynamic response to line and load changes
• Stable with ceramic capacitor
• Available in PPAK
Applications
• Microprocessor power supply• DSP power supply
• Post regulators for switching suppliers
• High efficiency linear regulator
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Linear Voltage Regulators |
| Series | - |
| Product | LDO Regulators |
| Type | Linear Voltage Regulator |
| Packaging | Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | 4-XDFN Exposed Pad |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Surface Mount |
| Output-Type | Fixed |
| Supplier-Device-Package | 4-DFN (1x1) |
| Tolerance | 2 % |
| Voltage-Input | Up to 5.5V |
| Number-of-Outputs | 1 Output |
| Current-Output | 300mA |
| Voltage-Output | 3.3V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | - |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 3.3 V |
| Operating-Supply-Current | 130 uA |
| Input-Voltage-MAX | 5.5 V |
| Output-Current | 300 mA |
| Input-Voltage-MIN | 1.5 V |
| Load-Regulation | 18 mV |
| Voltage-Regulation-Accuracy | 3 % |
| Package-Case | DFN-4 |
| Dropout-Voltage | 330 mV |
| Line-Regulation | 0.02 %/V |
| Power Supply Ripple Rejection (PSRR) | 80 dB |
| Output-Voltage-Range | - |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 300mA 4-DFN (1x1)
LDO Voltage Regulators 300 mA very low quiescent current linear regulator IC
