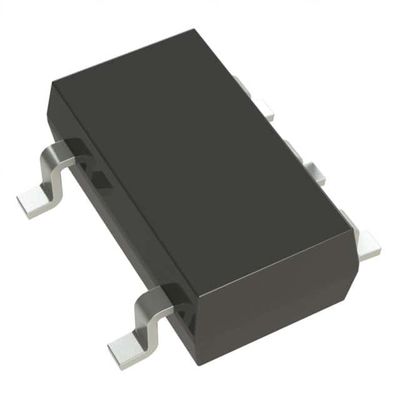

MIC5504-1.8YM5-TR IC REG LINEAR 1.8V 300MA SOT23-5 Microchip Technology
| Brand Name | Microchip Technology |
|---|---|
| Model Number | MIC5504-1.8YM5-TR |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.38V @ 300mA | Current - Output | 300mA |
| Current - Quiescent (Iq) | 55 µA | Current - Supply (Max) | 65 µA |
| PSRR | 60dB (1kHz) | Control Features | Enable |
| Protection Features | Over Current, Over Temperature | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| MIC5504-1.8YM5-TR | IC REG LINEAR 1.8V 300MA SOT23-5 | |
| MIC5504-2.5YM5-TR | IC REG LINEAR 2.5V 300MA SOT23-5 | |
| MIC94310-4YM5-TR | IC REG LINEAR 1.2V 200MA SOT23-5 | |
| MIC3490-3.3YM5-TR | IC REG LINEAR 3.3V 100MA SOT23-5 | |
| MIC94310-SYM5-TR | IC REG LINEAR 3.3V 200MA SOT23-5 | |
| MIC94310-4YM5-T5 | IC REG LINEAR 1.2V 200MA SOT23-5 | |
| LX8211-00ISE-TR | IC REG LIN POS ADJ 150MA SOT23-5 | |
| MIC5255-2.7YM5-TR | IC REG LINEAR 2.7V 150MA SOT23-5 | |
| LX8211-30ISE | IC REG LINEAR 3V 150MA SOT23-5 | |
| LX8211-25ISE | IC REG LINEAR 2.5V 150MA SOT23-5 | |
| MIC3490-1.8YM5-TR | IC REG LINEAR 1.8V 100MA SOT23-5 | |
| MIC3490-3.0YM5-TR | IC REG LINEAR 3V 100MA SOT23-5 | |
| MIC3490-5.0YM5-TR | IC REG LINEAR 5V 100MA SOT23-5 | |
| MIC5504-1.2YM5-TR | IC REG LINEAR 1.2V 300MA SOT23-5 | |
| MIC5501-3.0YM5-TR | IC REG LINEAR 3V 300MA SOT23-5 | |
| MIC3490-2.5YM5-TR | IC REG LINEAR 2.5V 100MA SOT23-5 | |
| MIC94310-PYM5-TR | IC REG LINEAR 3V 200MA SOT23-5 | |
| MIC5203-3.8YM5-TR | IC REG LINEAR 3.8V 80MA SOT23-5 | |
| MIC5203-2.6YM5-TR | IC REG LINEAR 2.6V 80MA SOT23-5 | |
| MIC5203-2.8YM5-TR | IC REG LINEAR 2.8V 80MA SOT23-5 | |
| MIC5252-4.75YM5-TR | IC REG LIN 4.75V 150MA SOT23-5 | |
| MIC5235-2.8YM5-TR | IC REG LINEAR 2.8V 150MA SOT23-5 | |
| MIC5504-1.2YM5-T5 | IC REG LINEAR 1.2V 300MA SOT23-5 | |
| MIC5504-1.8YM5-T5 | IC REG LINEAR 1.8V 300MA SOT23-5 | |
| MIC94310-PYM5-T5 | IC REG LINEAR 3V 200MA SOT23-5 | |
| MIC5504-2.5YM5-T5 | IC REG LINEAR 2.5V 300MA SOT23-5 | |
| MIC5501-3.0YM5-T5 | IC REG LINEAR 3V 300MA SOT23-5 | |
| LX8213-00ISE-TR | IC REG LIN POS ADJ 300MA SOT23-5 | |
| LX8213-33ISE-TR | IC REG LIN POS 3.3V 300MA SOT23- | |
| LX8213-12ISE-TR | IC REG LIN POS 1.2V 300MA SOT23- | |
| MIC5504-3.0YM5-T5 | IC REG LINEAR 3V 300MA 4TDFN |
Product Description
Product Details
[Micrel]
General Description
The MIC5501/2/3/4 is an advanced general-purpose LDO ideal for powering general-purpose portable devices. The MIC5501/2/3/4 family of products provides a highperformance 300mA LDO in an ultra-small 1mm × 1mm package. The MIC5502 and MIC5504 LDOs include an auto-discharge feature on the output that is activated when the enable pin is low. The MIC5503 and MIC5504 have an internal pull-down resistor on the enable pin that disables the output when the enable pin is left floating. This is ideal for applications where the control signal is floating during processor boot up.
Features
• Input voltage range: 2.5V to 5.5V• Fixed output voltages from 1.0V to 3.3V
• 300mA guaranteed output current
• High output accuracy (±2%)
• Low quiescent current: 38µA
• Stable with 1µF ceramic output capacitors
• Low dropout voltage: 160mV @ 300mA
• Output discharge circuit: MIC5502, MIC5504
• Internal enable pull-down: MIC5503, MIC5504
• Thermal-shutdown and current-limit protection
• 4-lead 1.0mm × 1.0mm Thin DFN package
• MIC5504 5-pin SOT23 package
Applications
• Smartphones• DSC, GPS, PMP, and PDAs
• Medical devices
• Portable electronics
• 5V systems
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Microchip Technology |
| Product Category | Linear Voltage Regulators |
| Series | - |
| Packaging | Alternate Packaging |
| Package-Case | SC-74A, SOT-753 |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | SOT-23-5 |
| Voltage-Input | 2.5 V ~ 5.5 V |
| Current-Output | 300mA |
| Voltage-Output | 1.8V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 0.16V @ 300mA |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | 400mA |
| Part-#-Aliases | MIC5504-1.8YM5 TR |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 1.8V 300mA SOT-23-5
LDO Regulator Pos 1.8V 0.3A 5-Pin SOT-23 T/R
LDO Voltage Regulators
