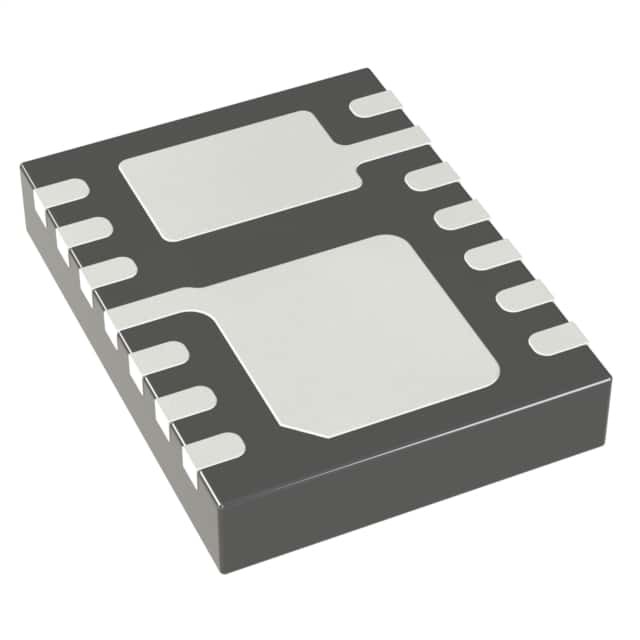

LT3032EDE#TRPBF IC REG LINEAR POS/NEG ADJ 14DFN Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | LT3032EDE#TRPBF |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive And Negative | Output Type | Adjustable |
|---|---|---|---|
| Number Of Regulators | 2 | Voltage - Input (Max) | ±20V |
| Voltage - Output (Min/Fixed) | ±1.22V | Voltage - Output (Max) | ±20V |
| Voltage Dropout (Max) | 0.27V @ 150mA (Typ), 0.3V @ 150mA (Typ) | Current - Output | 150mA, 150mA |
| Current - Quiescent (Iq) | - | Current - Supply (Max) | - |
| PSRR | 68dB (120Hz), 54dB (120Hz) | Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | 14-PowerWFDFN |
| Supplier Device Package | 14-DFN (4x3) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| LT3032EDE#TRPBF | IC REG LINEAR POS/NEG ADJ 14DFN | |
| LT3032IDE-5#TRPBF | IC REG LIN +/-5V 150MA/150MA 14D | |
| LT3032IDE#PBF | IC REG LINEAR POS/NEG ADJ 14DFN | |
| LT3032EDE-3.3#PBF | IC REG LINEAR +-3.3V 14DFN | |
| LT3032IDE-5#PBF | IC REG LIN +/-5V 150MA/150MA 14D | |
| LT3032MPDE#PBF | IC REG LINEAR POS/NEG ADJ 14DFN | |
| LT3032EDE-12#PBF | IC REG LINEAR +-12V 14DFN | |
| LT3032MPDE-5#PBF | IC REG LIN +/-5V 150MA/150MA 14D | |
| LT3032EDE-15#TRPBF | IC REG LINEAR +-15V 14DFN | |
| LT3032EDE-12#TRPBF | IC REG LINEAR +-12V 14DFN | |
| LT3032EDE-5#TRPBF | IC REG LIN +/-5V 150MA/150MA 14D | |
| LT3032IDE#TRPBF | IC REG LINEAR POS/NEG ADJ 14DFN | |
| LT3032IDE-15#PBF | IC REG LINEAR +-15V 14DFN | |
| LT3032IDE-3.3#PBF | IC REG LINEAR +-3.3V 14DFN | |
| LT3032MPDE-3.3#PBF | IC REG LINEAR +-3.3V 14DFN | |
| LT3032MPDE-12#PBF | IC REG LINEAR +-12V 14DFN | |
| LT3032EDE#PBF | IC REG LINEAR POS/NEG ADJ 14DFN | |
| LT3032EDE-5#PBF | IC REG LIN +/-5V 150MA/150MA 14D | |
| LT3032IDE-12#PBF | IC REG LINEAR +-12V 14DFN | |
| LT3032MPDE-15#PBF | IC REG LINEAR +-15V 14DFN | |
| LT3032EDE-15#PBF | IC REG LINEAR +-15V 14DFN | |
| LT3032EDE-3.3#TRPBF | IC REG LINEAR +-3.3V 14DFN | |
| LT3032IDE-12#TRPBF | IC REG LINEAR +-12V 14DFN | |
| LT3032IDE-15#TRPBF | IC REG LINEAR +-15V 14DFN | |
| LT3032IDE-3.3#TRPBF | IC REG LINEAR +-3.3V 14DFN | |
| LT3032MPDE-12#TRPBF | IC REG LINEAR +-12V 14DFN | |
| LT3032MPDE-15#TRPBF | IC REG LINEAR +-15V 14DFN | |
| LT3032MPDE-5#TRPBF | IC REG LIN +/-5V 150MA/150MA 14D | |
| LT3032MPDE-3.3#TRPBF | IC REG LINEAR +-3.3V 14DFN | |
| LT3032MPDE#TRPBF | IC REG LINEAR POS/NEG ADJ 14DFN |
Product Description
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices / Linear Technology |
| Product Category | Linear Voltage Regulators |
| Series | - |
| Packaging | Tape & Reel (TR) Alternate Packaging |
| Package-Case | 14-PowerWFDFN |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | 14-DFN (4x3) |
| Voltage-Input | ±2.3 V ~ ±20 V |
| Current-Output | 150mA |
| Voltage-Output | ±1.22 V ~ ±20 V |
| Regulator-Topology | Positive and Negative Adjustable |
| Voltage-Dropout-Typical | 0.27V @ 150mA, 0.3V @ -150mA |
| Number-of-Regulators | 2 Regulators |
| Current-Limit-Min | 170mA |
Descriptions
Linear Voltage Regulator IC 2 Output 150mA, 150mA 14-DFN (4x3)
LT3032 Series - Dual 150mA Positive/Negative Low Noise Low Dropout Linear Regulator
