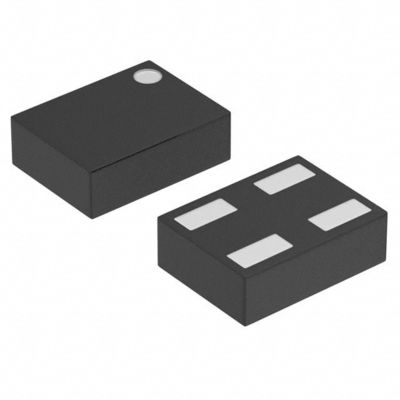

XC6221A1827R-G IC REG LINEAR 1.8V 200MA 4USPN Torex Semiconductor Ltd



■ GENERAL DESCRIPTION

The XC6221 series is a high accuracy, low noise, high speed, low dropout CMOS regulator with high ripple rejection. The series includes a reference voltage source, an error amplifier, a current limiter, and a phase compensation circuit. The CE function enables the entire circuit to be in stand-by state by inputting low level signal. As for the XC6221B/D stand-by mode, the electric charge at the output capacitor (CL) will be discharged by the internal auto-discharge switch, and as a result the VOUT pin quickly returns to the VSS level. The output stabilization capacitor (CL) is also compatible with low ESR ceramic capacitors.





■ FEATURES

Maximum Output Current : 200mA
Dropout Voltage : 80mV@ IOUT=100mA,VOUT=3.0V
Operating Voltage Range : 1.6V ~ 6.0V
Output Voltage Range : 0.80V~5.00V (0.05V increments)
Accuracy : +2% (VOUT >1.50V) (Standard)
+30mV (VOUT≦ 1.45V) (Standard)
+1% (VOUT >2.00V) (High Accuracy)
+20mV (VOUT≦ 1.95V) (High Accuracy)

Low Power Consumption : 25μ A (TYP.)
Stand-by Current : Less than 0.1μ A
High Ripple Rejection : 70dB @ 1kHz
CE Function : CE Active High
Standby current below 0.1μ A
CL High-Speed Auto-Discharge
(XC6221B/D)
CE Pin internally pulled-down
(XC6221C/D)
Low ESR Capacitor : 1.0μ F ceramic capacitor
Low Output Noise
Operating Ambient Temperature : -40℃ ~+85℃
Packages : USP-4, SOT-25, SSOT-24 USPN-4
Environmentally Friendly : EU RoHS Compliant, Pb Free





■ APPLICATIONS

● Cellular phones
● Cordless phones
● Wireless communication equipment
● Portable games
● Cameras, VCRs
● Portable AV equipment
● PDAs
