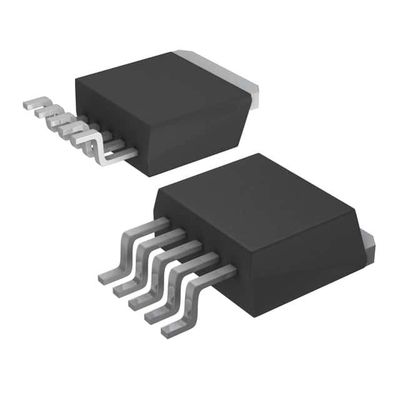

AP1186K5-25L-13 IC REG LINEAR 2.5V 1.5A TO263-5 Diodes Incorporated
| Brand Name | Diodes Incorporated |
|---|---|
| Model Number | AP1186K5-25L-13 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 2.5V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.38V @ 1.5A | Current - Output | 1.5A |
| Current - Quiescent (Iq) | 10 MA | Current - Supply (Max) | 150 µA |
| PSRR | 70dB (120Hz) | Control Features | - |
| Protection Features | Over Current, Over Temperature | Operating Temperature | 0°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-263-5 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| AP1186K5-25L-13 | IC REG LINEAR 2.5V 1.5A TO263-5 | |
| AP1186K5-25L-U | IC REG LINEAR 2.5V 1.5A TO263-5 | |
| AP1186K5-15L-13 | IC REG LINEAR 1.5V 1.5A TO263-5 | |
| AP1186K5-15L-U | IC REG LINEAR 1.5V 1.5A TO263-5 | |
| AP1184K5-15L-13 | IC REG LINEAR 1.5V 4A TO263-5 | |
| AP1184K5-15L-U | IC REG LINEAR 1.5V 4A TO263-5 | |
| AP1186K5-18L-U | IC REG LINEAR 1.8V 1.5A TO263-5 | |
| AP1186K5-L-13 | IC REG LIN POS ADJ 1.5A TO263-5 | |
| AP1186K5-L-U | IC REG LIN POS ADJ 1.5A TO263-5 | |
| AP1184K5-50L-U | IC REG LINEAR 5V 4A TO263-5 | |
| AP1184K5-25L-13 | IC REG LINEAR 2.5V 4A TO263-5 | |
| AP1184K5-25L-U | IC REG LINEAR 2.5V 4A TO263-5 | |
| AP1184K5-18L-13 | IC REG LINEAR 1.8V 4A TO263-5 | |
| AP1184K5-18L-U | IC REG LINEAR 1.8V 4A TO263-5 | |
| AP1184K5-33L-13 | IC REG LINEAR 3.3V 4A TO263-5 | |
| AP1184K5-L-13 | IC REG LINEAR POS ADJ 4A TO263-5 | |
| AP1186K5-50L-13 | IC REG LINEAR 5V 1.5A TO263-5 | |
| AP1184K5-33L-U | IC REG LINEAR 3.3V 4A TO263-5 | |
| AP1184K5-L-U | IC REG LINEAR POS ADJ 4A TO263-5 | |
| AP1186K5-33L-U | IC REG LINEAR 3.3V 1.5A TO263-5 | |
| AP1186K5-50L-U | IC REG LINEAR 5V 1.5A TO263-5 | |
| AP1186K5-15G-13 | IC REG LINEAR 1.5V 1.5A TO263-5 | |
| AP1186K5-18G-13 | IC REG LINEAR 1.8V 1.5A TO263-5 | |
| AP1186K5-25G-13 | IC REG LINEAR 2.5V 1.5A TO263-5 | |
| AP1186K5-33G-13 | IC REG LINEAR 3.3V 1.5A TO263-5 | |
| AP1186K5-50G-13 | IC REG LINEAR 5V 1.5A TO263-5 | |
| AP1186K5-33L-13 | IC REG LINEAR 3.3V 1.5A TO263-5 | |
| AP1186K5-18L-13 | IC REG LINEAR 1.8V 1.5A TO263-5 |
Product Description
Product Details
General Description
AP1184 is a 4A regulator with extremely low dropout voltage. This product is specifically designed to provide well regulated supply for applications requiring 2.8V or lower voltages from 3.3V ATX power supplies where high efficiency of the switch can be achieved without the cost and complexity associated with switching regulator. One such application is the new graphic chipsets that requires anywhere from 2.4V to 2.7V supply.
Feature
• 0.7V maximum dropout voltage at 4A load current• Built-in Thermal shutdown
• Output current limiting
• Adjustable or fixed output voltage 1.5V, 1.8V, 2.5V, 3.3V, 5.0V
• Fast transient response
• Good noise rejection
• Packages: SOP-7L, TO220-5L and TO263-5L
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | Linear Voltage Regulators |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Package-Case | TO-263-6, D2Pak (5 Leads + Tab), TO-263BA |
| Operating-Temperature | 0°C ~ 150°C |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | TO-263-5 |
| Voltage-Input | Up to 16V |
| Current-Output | 1.5A |
| Voltage-Output | 2.5V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 0.26V @ 1.5A |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | 1.6A |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 2.5V 1.5A TO-263-5
LDO Regulator Pos 2.5V 1.5A 6-Pin(5+Tab) TO-263 T/R
