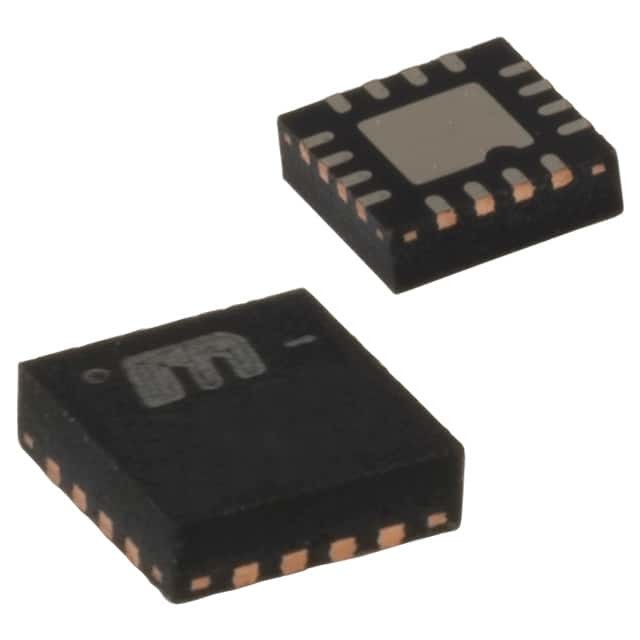

MIC2215-PPMYML-TR IC REG LINEAR 3V/3V/2.8V 16MLF Microchip Technology
| Brand Name | Microchip Technology |
|---|---|
| Model Number | MIC2215-PPMYML-TR |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 3 | Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3V, 3V, 2.8V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.275V @ 250mA, 0.275V @ 250mA, 0.275V @ 250mA | Current - Output | 250mA, 250mA, 250mA |
| Current - Quiescent (Iq) | 150 µA | Current - Supply (Max) | 550 µA |
| PSRR | 70dB ~ 45dB (100Hz ~ 1kHz) | Control Features | Enable |
| Protection Features | Over Current, Over Temperature | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | 16-VQFN Exposed Pad, 16-MLF® |
| Supplier Device Package | 16-MLF® (4x4) | ||
| Highlight | PMIC Chip,PMIC IC,Power Management Integrated Circuits |
||
