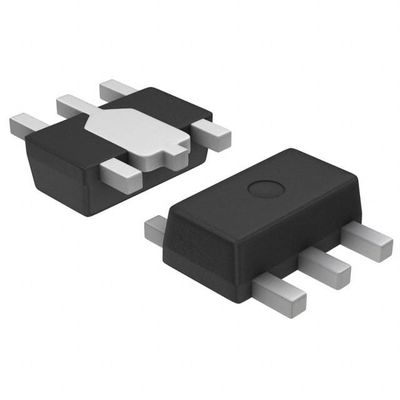

NCP694D08HT1G IC REG LINEAR 0.8V 1A SOT89-5 onsemi
| Brand Name | onsemi |
|---|---|
| Model Number | NCP694D08HT1G |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 0.8V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.72V @ 1A (Typ) | Current - Output | 1A |
| Current - Quiescent (Iq) | 100 µA | Current - Supply (Max) | - |
| PSRR | 70dB (1kHz) | Control Features | Enable |
| Protection Features | Over Current, Over Temperature | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Package / Case | SOT-89-5/6 |
| Supplier Device Package | SOT-89-5 | ||
| Highlight | PMIC Chip,PMIC IC,Power Management Integrated Circuits |
||
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| NCP694D08HT1G | IC REG LINEAR 0.8V 1A SOT89-5 | |
| NCP694D10HT1G | IC REG LINEAR 1V 1A SOT89-5 | |
| NCP694D12HT1G | IC REG LINEAR 1.2V 1A SOT89-5 | |
| NCP694D25HT1G | IC REG LINEAR 2.5V 1A SOT89-5 | |
| NCP694D33HT1G | IC REG LINEAR 3.3V 1A SOT89-5 | |
| NCP694DADJHT1G | IC REG LINEAR POS ADJ 1A SOT89-5 | |
| NCP694H08HT1G | IC REG LINEAR 0.8V 1A SOT89-5 | |
| NCP694H10HT1G | IC REG LINEAR 1V 1A SOT89-5 | |
| NCP694H12HT1G | IC REG LINEAR 1.2V 1A SOT89-5 | |
| NCP694H25HT1G | IC REG LINEAR 2.5V 1A SOT89-5 | |
| NCP694H33HT1G | IC REG LINEAR 3.3V 1A SOT89-5 | |
| NCP694HADJHT1G | IC REG LINEAR POS ADJ 1A SOT89-5 | |
| NCP4640H020T1G | IC REG LINEAR 2V 50MA SOT89-5 | |
| NCP4640H030T1G | IC REG LINEAR 3V 50MA SOT89-5 | |
| NCP4640H033T1G | IC REG LINEAR 3.3V 50MA SOT89-5 | |
| NCP4640H080T1G | IC REG LINEAR 8V 50MA SOT89-5 | |
| NCP4640H120T1G | IC REG LINEAR 12V 50MA SOT89-5 | |
| NCP4641H030T1G | IC REG LINEAR 3V 120MA SOT89-5 | |
| NCP4641H050T1G | IC REG LINEAR 5V 150MA SOT89-5 | |
| NCP4641H080T1G | IC REG LINEAR 8V 150MA SOT89-5 | |
| NCP4687DH12T1G | IC REG LINEAR 1.2V 500MA SOT89-5 | |
| NCP4687DH15T1G | IC REG LINEAR 1.5V 500MA SOT89-5 | |
| NCP4687DH18T1G | IC REG LINEAR 1.8V 500MA SOT89-5 | |
| NCP4687DH25T1G | IC REG LINEAR 2.5V 500MA SOT89-5 | |
| NCP4687DH33T1G | IC REG LINEAR 3.3V 500MA SOT89-5 | |
| NCP4641H033T1G | IC REG LINEAR 3.3V 120MA SOT89-5 |
Product Description
Product Details
1A CMOS Low-Dropout Voltage Regulator
The NCP694 series of fixed output super low dropout linear regulators are designed for portable battery powered applications with high output current requirement up to 1 A and −3 mV typical load regulation at 1 A. Each device contains a voltage reference unit, an error amplifier, a PMOS power transistor, resistors for setting output voltage, a current limit circuits for overcurrent and thermal−shutdown. A standby mode with ultra low supply current can be realized with the chip enable function.
The device is housed in the SOT−89−5 and HSON−6 packages. Standard voltage versions are 0.8 V, 1.0 V, 1.2 V, 2.5 V, 3.3 V for fixed version and adjustable output voltage down to 1.0 V.
Features
• Maximum Operating Voltage of 6.0 V• Minimum Output Voltage Down to 0.8 V for Fix Version and 1.0 V for Adjustable Version
• Load Regulation −3 mV at 1 A Output Current
• Low Dropout
• Build−in Auto Discharge Function for D Version
• Standby Mode With Low Consumption
• These are Pb−Free Devices
Typical Applications
• Battery Powered Instruments• Hand−Held Instruments
• Camcorders and Cameras
• Portable communication equipments
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | onsemi |
| Product Category | Linear Voltage Regulators |
| Series | - |
| Packaging | Alternate Packaging |
| Package-Case | SOT-89-5/6 |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | SOT-89-5 |
| Voltage-Input | Up to 6V |
| Current-Output | 1A |
| Voltage-Output | 0.8V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 0.72V @ 1A |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 0.8V 1A SOT-89-5
LDO Regulator Pos 0.8V 1A 6-Pin(5+Tab) SOT-89 T/R
