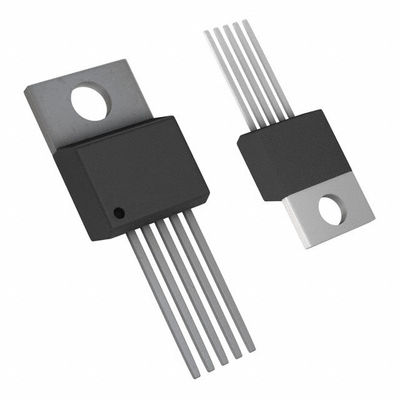

LT1963AET-3.3#06PBF IC REG LIN 3.3V 1.5A TO220-5 Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | LT1963AET-3.3#06PBF |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 20V |
| Voltage - Output (Min/Fixed) | 3.3V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.55V @ 1.5A | Current - Output | 1.5A |
| Current - Quiescent (Iq) | 1.5 MA | Current - Supply (Max) | 120 MA |
| PSRR | 63dB (120Hz) | Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole | Package / Case | TO-220-5 |
| Supplier Device Package | TO-220-5 Flow 6 | ||
| Highlight | PMIC Chip,PMIC IC,Power Management Integrated Circuits |
||
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| LT1963AET-3.3#06PBF | IC REG LIN 3.3V 1.5A TO220-5 | |
| LT1963AET-1.8#06PBF | IC REG LIN 1.8V 1.5A TO220-5 | |
| LT1963ET#06PBF | IC REG LIN POS ADJ 1.5A TO220-5 | |
| LT1764ET-2.5#06PBF | IC REG LINEAR 2.5V 3A TO220 | |
| LT1529CT-5#06PBF | IC REG LIN 5V 3A TO220-5 FLOW 6 | |
| LT1764ET#06PBF | IC REG LIN POS ADJ 3A TO220-5 | |
| LT1764AET#06PBF | IC REG LIN POS ADJ 3A TO220-5 | |
| LT1185CT#06PBF | IC REG LIN POS/NEG ADJ 3A TO220 | |
| LT1185IT#06PBF | IC REG LIN POS/NEG ADJ 3A TO220 | |
| LT1963AET#06PBF | IC REG LIN POS ADJ 1.5A TO220-5 | |
| LT1129CT-5#06PBF | IC REG LIN 5V 700MA TO220-5 | |
| LT1963AET-1.5#06PBF | IC REG LIN 1.5V 1.5A TO220-5 | |
| LT1963AET-2.5#06PBF | IC REG LIN 2.5V 1.5A TO220-5 | |
| LT1129CT-3.3#06PBF | IC REG LIN 3.3V 700MA TO220-5 | |
| LT1963ET-3.3#06PBF | IC REG LIN 3.3V 1.5A TO220-5 | |
| LT1129IT#06PBF | IC REG LIN POS ADJ 700MA TO220-5 | |
| LT1129IT-5#06PBF | IC REG LIN 5V 700MA TO220-5 | |
| LT1529CT#06PBF | IC REG LIN POS ADJ 3A TO220-5 | |
| LT1529CT-3.3#06PBF | IC REG LINEAR 3.3V 3A TO220 | |
| LT1175CT-5#06PBF | IC REG LIN -5V 500MA TO220-5 | |
| LT1175CT#06PBF | IC REG LIN NEG ADJ 500MA TO220-5 | |
| LT1764AET-2.5#06PBF | IC REG LINEAR 2.5V 3A TO220 | |
| LT1764AET-3.3#06PBF | IC REG LINEAR 3.3V 3A TO220 | |
| LT1764ET-1.8#06PBF | IC REG LINEAR 1.8V 3A TO220 | |
| LT1529IT#06PBF | IC REG LIN POS ADJ 3A TO220-5 |
Product Description
Product Details
DESCRIPTION
The LT® 1963A series are low dropout regulators optimized for fast transient response. The devices are capable of supplying 1.5A of output current with a dropout voltage of 340mV. Operating quiescent current is 1mA, dropping to < 1μA in shutdown. Quiescent current is well controlled; it does not rise in dropout as it does with many other regulators. In addition to fast transient response, the LT1963A regulators have very low output noise which makes them ideal for sensitive RF supply applications.
FEATURES
Optimized for Fast Transient ResponseOutput Current: 1.5A
Dropout Voltage: 340mV
Low Noise: 40μVRMS(10Hz to 100kHz)
1mA Quiescent Current
No Protection Diodes Needed
Controlled Quiescent Current in Dropout
Fixed Output Voltages: 1.5V, 1.8V, 2.5V, 3.3V
Adjustable Output from 1.21V to 20V
< 1μA Quiescent Current in Shutdown
Stable with 10μF Output Capacitor
Stable with Ceramic Capacitors
Reverse Battery Protection
No Reverse Current
Thermal Limiting
5-Lead TO-220, DD, 3-Lead SOT-223 and 8-Lead SO Packages
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices / Linear Technology |
| Product Category | Linear Voltage Regulators |
| Series | - |
| Packaging | Tube |
| Package-Case | TO-220-5 |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Through Hole |
| Supplier-Device-Package | TO-220-5 Flow 6 |
| Voltage-Input | Up to 20V |
| Current-Output | 1.5A |
| Voltage-Output | 3.3V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 0.34V @ 1.5A |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | 1.6A |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 1.5A TO-220-5 Flow 6
LT1963A Series - 1.5A, Low Noise, Fast Transient Response LDO Regulators
