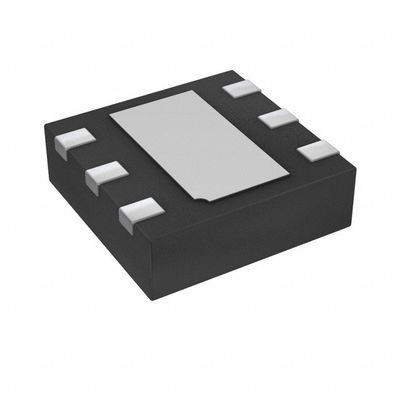

AP7312-1833FM-7 IC REG LINEAR 1.8V/3.3V 6DFN2018 Diodes Incorporated
| Brand Name | Diodes Incorporated |
|---|---|
| Model Number | AP7312-1833FM-7 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 2 | Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.8V, 3.3V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.3V @ 150mA, 0.2V @ 150mA | Current - Output | 150mA, 150mA |
| Current - Quiescent (Iq) | 80 µA | Current - Supply (Max) | - |
| PSRR | 65dB (1kHz) | Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Package / Case | 6-UFDFN Exposed Pad |
| Supplier Device Package | U-DFN2018-6 | ||
| Highlight | PMIC Chip,PMIC IC,Power Management Integrated Circuits |
||
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| AP7312-1833FM-7 | IC REG LINEAR 1.8V/3.3V 6DFN2018 | |
| AP7312-1525FM-7 | IC REG LINEAR 1.5V/2.5V 6DFN2018 | |
| AP7312-1233FM-7 | IC REG LINEAR 1.2V/3.3V 6DFN2018 | |
| UM1750DA-XX | 5V Input 350mA LDO | |
| UM1770DA-XX | 5V 500mA LDO with Enable Control | |
| UM1770DA-00 | IC REG LINEAR POS ADJ 500MA 6DFN | |
| UM1560DA | 5V Input Ultra Low IQ LDO | |
| UM1750DA-00 | IC REG LINEAR POS ADJ 350MA 6DFN | |
| AP7332-1218FM-7 | IC REG LDO 1.2V/1.8V 0.3A 6DFN | |
| AP7312-1218FM-7 | IC REG LINEAR 1.2V/1.8V 6DFN2018 | |
| AP7312-1533FM-7 | IC REG LINEAR 1.5V/3.3V 6DFN2018 | |
| AP7332-2833FM-7 | IC REG LINEAR 2.8V/3.3V 6DFN2018 | |
| AP7312-1828FM-7 | IC REG LINEAR 1.8V/2.8V 6DFN2018 | |
| AP7312-1830FM-7 | IC REG LINEAR 1.8V/3V 6DFN2018 | |
| AP7312-3333FM-7 | IC REG LINEAR 3.3V/3.3V 6DFN2018 | |
| AP7201-1010FMG-7 | IC REG LINEAR 1V/1V 6DFN2018 | |
| AP7201-1011FMG-7 | IC REG LINEAR 1V/1.1V 6DFN2018 | |
| AP7201-1012FMG-7 | IC REG LINEAR 1V/1.2V 6DFN2018 | |
| AP7201-1230FMG-7 | IC REG LINEAR 1.2V/3V 6DFN2018 | |
| AP7201-1233FMG-7 | IC REG LINEAR 1.2V/3.3V 6DFN2018 | |
| AP7201-1818FMG-7 | IC REG LINEAR 1.8V/1.8V 6DFN2018 | |
| AP7201-1828FMG-7 | IC REG LINEAR 1.8V/2.8V 6DFN2018 | |
| AP7201-2828FMG-7 | IC REG LINEAR 2.8V/2.8V 6DFN2018 |
Product Description
Product Details
Description
The AP7312 is 150mA, dual fixed output voltage, low dropout linear regulator. The AP7312 include the pass element, error amplifier, band-gap, current limit and thermal shutdown circuitry which protect the IC from damage in fault conditions. The AP7312 has two enable pins (EN1 and EN2) to independently turn the respective channel on when a logic high level is applied.
Features
• 150mA Low Dropout Regulator with EN• Very low IQ: 60µA
• Wide input voltage range: 2V to 6V
• Fixed output options: 1.2V to 3.3V
• High PSRR: 65dB at 1kHz
• Fast start-up time: 60µs
• Stable with low ESR, 1µF ceramic output capacitor
• Excellent Load/Line Transient Response
• Low dropout: 150mV at 150mA
• Current limit protection
• Short circuit protection
• Thermal shutdown protection
• Ambient temperature range: -40ºC to 85°C
• SOT26 and DFN2018-6: Available in “Green” Molding Compound (No Br, Sb)
• Lead Free Finish/RoHS Compliant (Note 1)
Applications
• Cellular Phones• Smart Phones, PDAs
• MP3/MP4
• Bluetooth head set
• Low power application
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | Linear Voltage Regulators |
| Series | AP7312 |
| Product | LDO Regulators |
| Type | Low Dropout Linear Regulator |
| Packaging | Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | 6-UFDFN Exposed Pad |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Output-Type | Fixed |
| Supplier-Device-Package | 6-DFN2018 (2.0x1.8) |
| Voltage-Input | 2 V ~ 6 V |
| Number-of-Outputs | 2 Output |
| Current-Output | 150mA |
| Voltage-Output | 1.8V, 3.3V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 0.2V @ 150mA, 0.15V @ 200mA |
| Number-of-Regulators | 2 Regulators |
| Current-Limit-Min | 200mA |
| Pd-Power-Dissipation | 2200 mW |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 1.8 V 3.3 V |
| Input-Voltage-MAX | 6 V |
| Output-Current | 150 mA |
| Input-Voltage-MIN | 2 V |
| Load-Regulation | 0.6 % |
| Voltage-Regulation-Accuracy | 2 % |
| Package-Case | DFN-2018-6 |
| Reference-Voltage | 0.8 V |
| Dropout-Voltage-Max | 300 mV |
| Line-Regulation | 0.01 %/V |
| Power Supply Ripple Rejection (PSRR) | 65 dB |
Descriptions
Linear Voltage Regulator IC Positive Fixed 2 Output 1.8V, 3.3V 150mA, 150mA 6-DFN2018 (2.0x1.8)
LDO Regulator Pos 1.8V3.3V 0.15A 6-Pin UDFN EP T/R
LDO Voltage Regulators Dual 150mA LDO Reg 60uA 1.8 to 3.3 65dB
