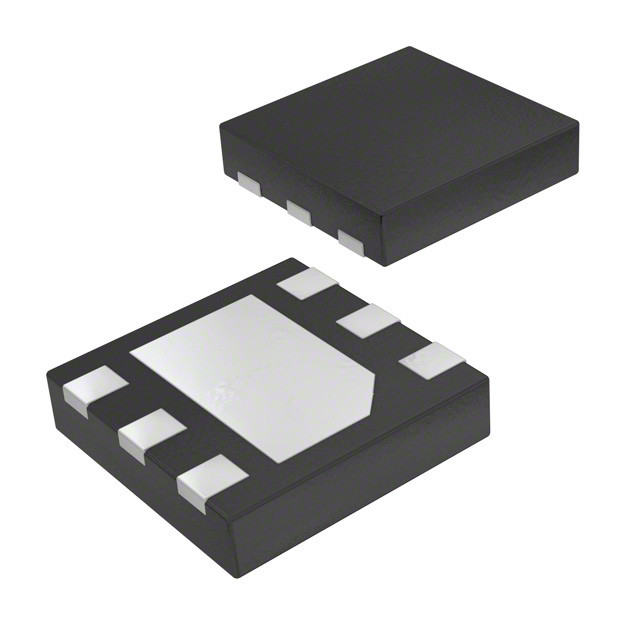

RT9053AZQW IC REG LIN POS ADJ 400MA 6WDFN Richtek USA Inc.
| Brand Name | Richtek USA Inc. |
|---|---|
| Model Number | RT9053AZQW |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Adjustable |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V | Voltage - Output (Max) | 5.15V |
| Voltage Dropout (Max) | 0.35V @ 400mA | Current - Output | 400mA |
| Current - Quiescent (Iq) | 50 µA | Current - Supply (Max) | - |
| PSRR | 56dB ~ 35dB (1kHz ~ 10kHz) | Control Features | Enable |
| Protection Features | Over Current, Over Temperature | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WDFN (2x2) | ||
| Highlight | PMIC Chip,PMIC IC,Power Management Integrated Circuits |
||
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| RT9053AZQW | IC REG LIN POS ADJ 400MA 6WDFN | |
| RT9013B-2HGQWC | IC LDO 0.3A LOW DROPOUT WDFN-6 | |
| RT9013-18GQW | IC LDO 0.5A LOW DROPOUT WDFN-6 | |
| RT9013-33GQW | IC REG LINEAR 3.3V 500MA 6WDFN | |
| RT9193-18GQW | IC REG LINEAR 1.8V 300MA 6WDFN | |
| RT9013-12GQW | IC REG LINEAR 1.2V 500MA 6WDFN | |
| RT9013-15GQW | IC REG LINEAR 1.5V 500MA 6WDFN | |
| RT9013-25GQW | IC REG LINEAR 2.5V 500MA 6WDFN | |
| RT9013-30GQW | IC REG LINEAR 3V 500MA 6WDFN | |
| RT9013-32GQW | IC REG LINEAR 3.2V 500MA 6WDFN | |
| RT9193-1HGQW | IC REG LINEAR 1.85V 300MA 6WDFN | |
| RT9193-24GQW | IC REG LINEAR 2.4V 300MA 6WDFN | |
| RT9193-25GQW | IC REG LINEAR 2.5V 300MA 6WDFN | |
| RT9193-27GQW | IC REG LINEAR 2.7V 300MA 6WDFN | |
| RT9193-2HGQW | IC REG LINEAR 2.85V 300MA 6WDFN | |
| RT9193-30GQW | IC REG LINEAR 3V 300MA 6WDFN | |
| RT9193-31GQW | IC REG LINEAR 3.1V 300MA 6WDFN | |
| RT9193-32GQW | IC REG LINEAR 3.2V 300MA 6WDFN | |
| RT9193-33GQW | IC REG LINEAR 3.3V 300MA 6WDFN | |
| RT9198-27GQW | IC REG LINEAR 2.7V 300MA 6WDFN | |
| RT9198-30GQW | IC REG LINEAR 3V 300MA 6WDFN | |
| RT9198-36GQW | IC REG LINEAR 3.6V 300MA 6WDFN |
Product Description
Product Details
General Description
The RT9055 is a dual channel, low noise, and low dropout regulator sourcing up to 300mA at each channel. The output voltage range is from 0.9V to 3.5V with an input voltage range from 1.5V to 5.5V.
Features
• Wide Operating Voltage Range : 1.5V to 5.5V• Low Noise for RF Application
• No Noise Bypass Capacitor Required
• Fast Response in Line/Load Transient
• TTL Logic Controlled Shutdown Input
• Low Temperature Coefficient
• Dual LDO Outputs (300mA/300mA)
• Ultra-Low Quiescent Current : 29μA/LDO
• High Output Accuracy 2%
• Short Current Protection
• Thermal Shutdown Protection
• Current Limit Protection
• Short Circuit Thermal Folded Back Protection
• RoHS Compliant and Halogen Free
Applications
• Cellular Handsets• Battery Powered Equipment
• Hand-Held Instruments
• Portable Information Appliances
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Richtek |
| Product Category | Linear Voltage Regulators |
| Series | - |
| Packaging | Alternate Packaging |
| Package-Case | 6-WDFN Exposed Pad |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | 6-WDFN (2x2) |
| Voltage-Input | 2.2 V ~ 5.5 V |
| Current-Output | 400mA |
| Voltage-Output | Adj to 0.8V |
| Regulator-Topology | Positive Adjustable |
| Voltage-Dropout-Typical | 0.23V @ 400mA |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | 400mA |
Descriptions
Linear Voltage Regulator IC Positive Adjustable 1 Output Adj to 0.8V 400mA 6-WDFN (2x2)
