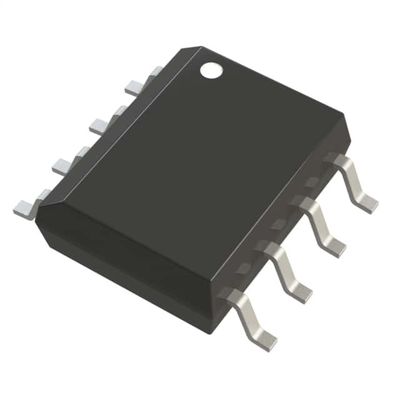

AP2213M-3.3TRG1 IC REG LINEAR 3.3V 500MA 8SOIC Diodes Incorporated
| Brand Name | Diodes Incorporated |
|---|---|
| Model Number | AP2213M-3.3TRG1 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 18V |
| Voltage - Output (Min/Fixed) | 3.3V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.7V @ 500mA | Current - Output | 500mA |
| Current - Quiescent (Iq) | 180 µA | Current - Supply (Max) | 28 MA |
| PSRR | 75dB (100Hz) | Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| AP2213M-3.3TRG1 | IC REG LINEAR 3.3V 500MA 8SOIC | |
| AP2115M-3.3TRG1 | IC REG LINEAR 3.3V 1A 8SOIC | |
| AP2112M-3.3TRG1 | IC REG LINEAR 3.3V 600MA 8SOIC | |
| AS78L05MTR-G1 | IC REG LINEAR 5V 100MA 8SOIC | |
| AS78L05MTR-E1 | IC REG LINEAR 5V 100MA 8SOIC | |
| AS78L12MTR-G1 | IC REG LINEAR 12V 100MA 8SOIC | |
| AP2213M-2.5TRG1 | IC REG LINEAR 2.5V 500MA 8SOIC | |
| AP2318M-ADJTRG1 | IC REG LIN POS ADJ 600MA 8SOIC | |
| AP2112M-1.2TRG1 | IC REG LINEAR 1.2V 600MA 8SOIC | |
| AP2112M-1.8TRG1 | IC REG LINEAR 1.8V 600MA 8SOIC | |
| AP2112M-2.5TRG1 | IC REG LINEAR 2.5V 600MA 8SOIC | |
| AP2112M-2.6TRG1 | IC REG LINEAR 2.6V 600MA 8SOIC | |
| AP2115M-1.2TRG1 | IC REG LINEAR 1.2V 1A 8SOIC | |
| AP2115M-1.8TRG1 | IC REG LINEAR 1.8V 1A 8SOIC | |
| AP2115M-2.5TRG1 | IC REG LINEAR 2.5V 1A 8SOIC | |
| AP2213M-2.5TRE1 | IC REG LINEAR 2.5V 500MA 8SOIC | |
| AP2213M-3.0TRE1 | IC REG LINEAR 3V 500MA 8SOIC | |
| AP2213M-3.0TRG1 | IC REG LINEAR 3V 500MA 8SOIC | |
| AP2213M-3.3TRE1 | IC REG LINEAR 3.3V 500MA 8SOIC | |
| AZ78L05MTR-E1 | IC REG LINEAR 5V 100MA 8SOIC | |
| AZ78L05MTR-G1 | IC REG LINEAR 5V 100MA 8SOIC |
Product Description
Product Details
General Description
The AP2213 is a 500mA output current fixed voltage regulator which provides low noise, very low dropout voltage (typically 350mV at 500mA), very low standby current (1µA maximum) and excellent power supply ripple rejection (PSRR 75dB at 100Hz) in battery powered applications, such as handsets and PDAs and in noise sensitive applications, such as RF electronics.Features
• Up to 500mA Output Current
• Low Standby Current
• Low Dropout Voltage: VDROP=350mV at 500mA
• High Output Accuracy: ±1%
• Good Ripple Rejection Ability: 75dB at 100Hz
and IOUT=100µA
• Tight Load and Line Regulation
• Low Temperature Coefficient
• Over Current Protection
• Thermal Protection
• Reversed-battery Protection
• Logic-controlled Enable
Applications
• Laptop, Notebook, and Palmtop Computer
• CD-ROM, CD-R/RW, DVD Driver
• Portable Electronic
• PC Peripheral
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | Linear Voltage Regulators |
| Series | AP2213M |
| Packaging | Tape & Reel (TR) |
| Package-Case | 8-SOIC (0.154", 3.90mm Width) |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | 8-SOIC |
| Voltage-Input | Up to 18V |
| Current-Output | 500mA |
| Voltage-Output | 3.3V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 0.35V @ 500mA |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
| Manufacturer Part# | Description | Manufacturer | Compare |
| AP2213M-3.3TRG1 Power Circuits |
Fixed Positive LDO Regulator, 3.3V, 0.7V Dropout, BIPolar, PDSO8, GREEN, SOIC-8 | Diodes Incorporated | AP2213M-3.3TRG1 vs AP2213M-3.3TRG1 |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 500mA 8-SOIC
LDO Voltage Regulators 500mA Low Noise LDO 350mV 75dB 100Hz
