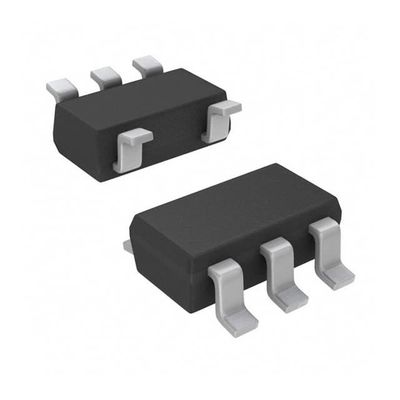

AS1358-BTTT-28 IC REG LIN 2.8V 150MA TSOT23-5 ams-OSRAM USA INC.
| Brand Name | ams-OSRAM USA INC. |
|---|---|
| Model Number | AS1358-BTTT-28 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.8V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.12V @ 150mA | Current - Output | 150mA |
| Current - Quiescent (Iq) | 90 µA | Current - Supply (Max) | - |
| PSRR | 92dB ~ 62dB (1kHz ~ 100kHz) | Control Features | Enable |
| Protection Features | Over Temperature | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| AS1358-BTTT-28 | IC REG LIN 2.8V 150MA TSOT23-5 | |
| AS1358-BTTT-45 | IC REG LIN 4.5V 150MA TSOT23-5 | |
| AS1358-BTTT-33 | IC REG LIN 3.3V 150MA TSOT23-5 | |
| AS1359-BTTT-28 | IC REG LIN 2.8V 300MA TSOT23-5 | |
| AS1359-BTTT-31 | IC REG LIN 3.1V 300MA TSOT23-5 | |
| AS1358-BTTT-285 | IC REG LIN 2.85V 150MA TSOT23-5 | |
| AS1359-BTTT-18 | IC REG LIN 1.8V 300MA TSOT23-5 | |
| AS1359-BTTT-27 | IC REG LIN 2.7V 300MA TSOT23-5 | |
| AS1359-BTTT-33 | IC REG LIN 3.3V 300MA TSOT23-5 | |
| AS1359-BTTT-26 | IC REG LIN 2.6V 300MA TSOT23-5 | |
| AS1359-BTTT-30 | IC REG LINEAR 3V 300MA TSOT23-5 | |
| AS1359-BTTT-15 | IC REG LIN 1.5V 300MA TSOT23-5 | |
| AS1359-BTTT-25 | IC REG LIN 2.5V 300MA TSOT23-5 | |
| AS1359-BTTT-285 | IC REG LIN 2.85V 300MA TSOT23-5 | |
| AS1358-BTTT-30 | IC REG LINEAR 3V 150MA TSOT23-5 | |
| AS1358-BTTT-27 | IC REG LIN 2.7V 150MA TSOT23-5 | |
| AS1358-BTTT-26 | IC REG LIN 2.6V 150MA TSOT23-5 | |
| AS1358-BTTT-18 | IC REG LIN 1.8V 150MA TSOT23-5 | |
| AS1358-BTTT-15 | IC REG LIN 1.5V 150MA TSOT23-5 | |
| AS1358-BTTT-25 | IC REG LIN 2.5V 150MA TSOT23-5 | |
| AS1359-BTTT-45 | IC REG LIN 4.5V 300MA TSOT23-5 |
Product Description
Product Details
General Description
The AS1358/AS1359 are ultra-low-noise, low-dropout linear regulators specifically designed to deliver up to 150/300mA continuous output current, and can achieve a low 140mV dropout for 300mA load current. The LDOs are designed and optimized to work with low-cost, small capacitance ceramic capacitors.
Key Features
Preset Output Voltages: 1.5 to 4.5V (in 50mV steps)Output Noise: 9µVRMS @ 100Hz to 100kHz
Power-Supply Rejection Ratio: 92dB @ 1kHz
Low Dropout: 140mV @ 300mA Load
Stable with 1µF Ceramic Capacitor for any Load
Guaranteed 150/300mA Output
1.25V Internal Reference
Extremely-Low Quiescent Current: 40µA
Excellent Load/Line Transient
Overcurrent and Thermal Protection
TSOT23 5-pin Package
Applications
The devices are ideal for mobile phones, wireless phones, PDAs, handheld computers, mobile phone base stations, Bluetooth portable radios and accessories, wireless LANs, digital cameras, personal audio devices, and any other portable, battery-powered application.
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | ams |
| Product Category | Linear Voltage Regulators |
| Series | - |
| Product | Linear Voltage Regulators |
| Type | Low Dropout |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.000222 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | SOT-23-5 Thin, TSOT-23-5 |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Output-Type | Fixed |
| Supplier-Device-Package | TSOT-23-5 |
| Voltage-Input | Up to 5.5V |
| Number-of-Outputs | 1 Output |
| Current-Output | 150mA |
| Voltage-Output | 2.8V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 0.09V @ 150mA |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 2.8 V |
| Input-Voltage-MAX | 5.5 V |
| Output-Current | 150 mA |
| Input-Voltage-MIN | 2 V |
| Load-Regulation | 0.005 % / mA |
| Voltage-Regulation-Accuracy | 2 % |
| Package-Case | TSOT-23-5 |
| Reference-Voltage | 1.25 V |
| Dropout-Voltage | 90 mV |
| Dropout-Voltage-Max | 350 mV |
| Power Supply Ripple Rejection (PSRR) | 62 dB |
| Output-Voltage-Range | - |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 2.8V 150mA TSOT-23-5
LDO Regulator Pos 2.8V 0.15A 5-Pin TSOT-23 T/R
LDO Voltage Regulators 150mA Voltage Regulator
