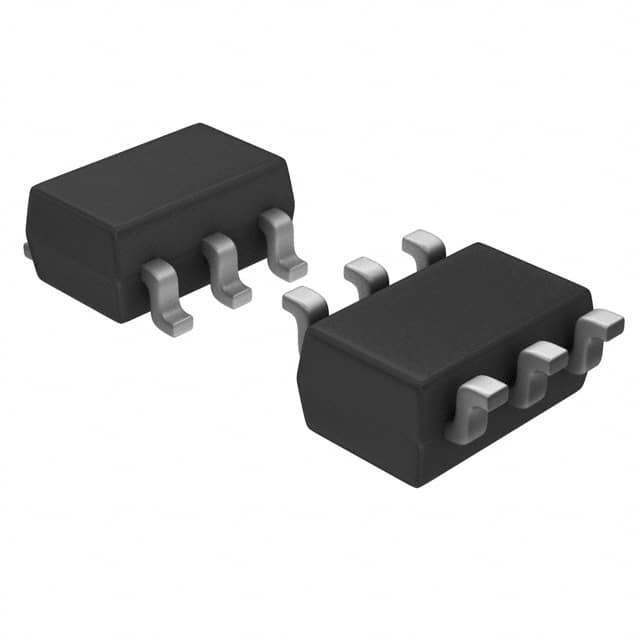

TPS79301DBVR IC REG LIN POS ADJ 200MA SOT23-6 Texas Instruments
| Brand Name | Texas Instruments |
|---|---|
| Model Number | TPS79301DBVR |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Adjustable |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.22V | Voltage - Output (Max) | 5.5V |
| Voltage Dropout (Max) | - | Current - Output | 200mA |
| Current - Quiescent (Iq) | 220 µA | Current - Supply (Max) | - |
| PSRR | 70dB ~ 43dB (100Hz ~ 100kHz) | Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Surface Mount | Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| TPS79301DBVR | IC REG LIN POS ADJ 200MA SOT23-6 | |
| TPS79301DBVRG4Q1 | IC REG LIN POS ADJ 200MA SOT23-6 | |
| TPS73001DBVT | IC REG LIN POS ADJ 200MA SOT23-6 | |
| TPS79201DBVR | IC REG LIN POS ADJ 100MA SOT23-6 | |
| TPS79301DBVRG4 | IC REG LIN POS ADJ 200MA SOT23-6 | |
| TPS73001DBVR | IC REG LIN POS ADJ 200MA SOT23-6 | |
| TPS79301DBVRQ1 | IC REG LIN POS ADJ 200MA SOT23-6 | |
| TPS79101DBVT | IC REG LIN POS ADJ 100MA SOT23-6 | |
| TPS79301MDBVREP | IC REG LIN POS ADJ 200MA SOT23-6 | |
| TPS79301DBVT | IC REG LIN POS ADJ 200MA SOT23-6 | |
| TPS79201DBVT | IC REG LIN POS ADJ 100MA SOT23-6 | |
| TPS79101DBVRQ1 | IC REG LIN POS ADJ 100MA SOT23-6 | |
| TPS79101DBVR | IC REG LIN POS ADJ 100MA SOT23-6 | |
| TPS79301DBVREP | IC REG LIN POS ADJ 200MA SOT23-6 | |
| TPS79101DBVRG4 | IC REG LIN POS ADJ 100MA SOT23-6 | |
| TPS79201DBVTG4 | IC REG LIN POS ADJ 100MA SOT23-6 | |
| TPS79101DBVREP | IC REG LIN POS ADJ 100MA SOT23-6 | |
| TPS79101DBVRG4Q1 | IC REG LIN POS ADJ 100MA SOT23-6 | |
| TPS73001DBVRG4 | IC REG LIN POS ADJ 200MA SOT23-6 | |
| TPS73001DBVTG4 | IC REG LIN POS ADJ 200MA SOT23-6 |
Product Description
Product Details
DESCRIPTION
Single Schottky rectifier suited for Switch Mode Power Supply and high frequency DC to DC converters.Packaged either in TO-220AC, ISOWATT220AC, TO-220FPAC or D2PAK, this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.
FEATURES AND BENEFITS
■ Very small conduction losses
■ Negligible switching losses
■ Extremely fast switching
■ Insulated package: ISOWATT220AC, TO-220FPAC
Insulating voltage = 2000V DC
Capacitance = 12pF
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Texas Instruments |
| Product Category | Linear Voltage Regulators |
| Series | TPS79301 |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.001270 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | SOT-23-6 |
| Operating-Temperature | -40°C ~ 150°C |
| Mounting-Type | Surface Mount |
| Output-Type | Adjustable |
| Supplier-Device-Package | SOT-23-6 |
| Voltage-Input | 2.7 V ~ 5.5 V |
| Number-of-Outputs | 1 Output |
| Current-Output | 200mA |
| Voltage-Output | 1.22 V ~ 5.5 V |
| Regulator-Topology | Positive Adjustable |
| Voltage-Dropout-Typical | 0.077V @ 200mA |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | 285mA |
| Pd-Power-Dissipation | 0.56 W |
| Maximum Operating Temperature | + 150 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 1.22 V to 5.5 V |
| Input-Voltage-MAX | 5.5 V |
| Output-Current | 200 mA |
| Input-Voltage-MIN | + 2.7 V |
| Load-Regulation | 5 mV |
| Voltage-Regulation-Accuracy | 2 % |
| Software Development Kit | TPS79301EVM |
| Package-Case | SOT-23-6 |
| Ib-Input-Bias-Current | 170 uA |
| Reference-Voltage | 1.225 V |
| Dropout-Voltage | 0.077 V at 200 mA |
| Dropout-Voltage-Max | 200 mV |
| Line-Regulation | 0.05 % / V |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| TPS79301DBVRG4 Power Circuits |
High PSRR, Low Noise, 200mA Single Output LDO, 6-SOT-23 -40 to 125 | Texas Instruments | TPS79301DBVR vs TPS79301DBVRG4 |
Descriptions
Linear Voltage Regulator IC Positive Adjustable 1 Output 1.22 V ~ 5.5 V 200mA SOT-23-6
LDO Regulator Pos 1.22V to 5.5V 0.2A 6-Pin SOT-23 T/R
LDO Voltage Regulators 200mA Adj Hi PSRR
