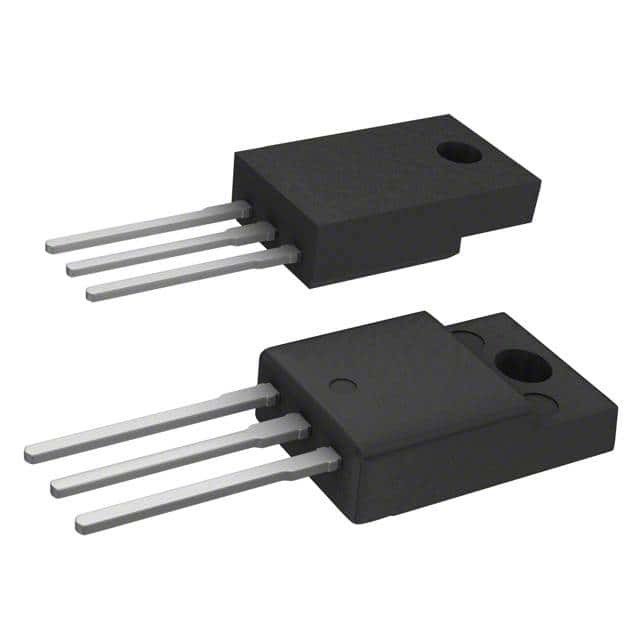

L7815CP IC REG LINEAR 15V 1.5A TO220FP STMicroelectronics
| Brand Name | STMicroelectronics |
|---|---|
| Model Number | L7815CP |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 15V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 2V @ 1A (Typ) | Current - Output | 1.5A |
| Current - Quiescent (Iq) | 8 MA | Current - Supply (Max) | - |
| PSRR | 54dB (120Hz) | Control Features | - |
| Protection Features | Over Temperature, Short Circuit | Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Through Hole | Package / Case | TO-220-3 Full Pack |
| Supplier Device Package | TO-220FP |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| L7815CP | IC REG LINEAR 15V 1.5A TO220FP | |
| L7905CP | IC REG LINEAR -5V 1.5A TO220FP | |
| LM317P | IC REG LIN POS ADJ 1.5A TO220FP | |
| L7805ABP | IC REG LINEAR 5V 1.5A TO220FP | |
| L7912CP | IC REG LINEAR -12V 1.5A TO220FP | |
| L7805CP | IC REG LINEAR 5V 1.5A TO220FP | |
| L7805ACP | IC REG LINEAR 5V 1.5A TO220FP | |
| L7915CP | IC REG LINEAR -15V 1.5A TO220FP | |
| LD1085P | IC REG LINEAR POS ADJ 3A TO220FP | |
| L7824CP | IC REG LINEAR 24V 1.5A TO220FP | |
| L7812CP | IC REG LINEAR 12V 1.5A TO220FP | |
| L7812ACP | IC REG LINEAR 12V 1.5A TO220FP | |
| L4940P85 | IC REG LINEAR 8.5V 1.5A TO220FP | |
| L7806CP | IC REG LINEAR 6V 1.5A TO220FP | |
| L7808CP | IC REG LINEAR 8V 1.5A TO220FP | |
| L7815ABP | IC REG LINEAR 15V 1.5A TO220FP | |
| L78M09CP | IC REG LINEAR 9V 500MA TO220FP | |
| LF50ABP | IC REG LINEAR 5V 500MA TO220FP | |
| LF50CP | IC REG LINEAR 5V 500MA TO220FP | |
| LF85CP | IC REG LINEAR 8.5V 500MA TO220FP |
Product Description
Product Details
Description
The L78 series of three-terminal positive regulators is available in TO-220, TO-220FP, D²PAK and DPAK packages and several fixed output voltages, making it useful in a wide range of applications.These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type embeds internal current limiting, thermal shut down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
Features
● Output current up to 1.5 A● Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V
● Thermal overload protection
● Short circuit protection
● Output transition SOA protection
● 2 % output voltage tolerance (A version)
● Guaranteed in extended temperature range (A version)
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Linear Voltage Regulators |
| Series | L7815 |
| Packaging | Tube |
| Unit-Weight | 0.081130 oz |
| Mounting-Style | Through Hole |
| Package-Case | TO-220-3 Full Pack |
| Operating-Temperature | 0°C ~ 125°C |
| Mounting-Type | Through Hole |
| Output-Type | Fixed |
| Supplier-Device-Package | TO-220FP |
| Voltage-Input | Up to 35V |
| Number-of-Outputs | 1 Output |
| Current-Output | 1.5A |
| Voltage-Output | 15V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 2V @ 1A |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | 0 C |
| Polarity | Positive |
| Output-Voltage | 15 V |
| Input-Voltage-MAX | 35 V |
| Output-Current | 1.5 A |
| Input-Voltage-MIN | 17 V |
| Load-Regulation | 300 mV |
| Package-Case | TO-220-3 FP |
| Line-Regulation | 300 mV |
| Power Supply Ripple Rejection (PSRR) | 54 dB |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 15V 1.5A TO-220FP
Standard Regulator Pos 15V 1.5A 3-Pin(3+Tab) TO-220FP Tube
Linear Voltage Regulators 15V 1.0A Positive
