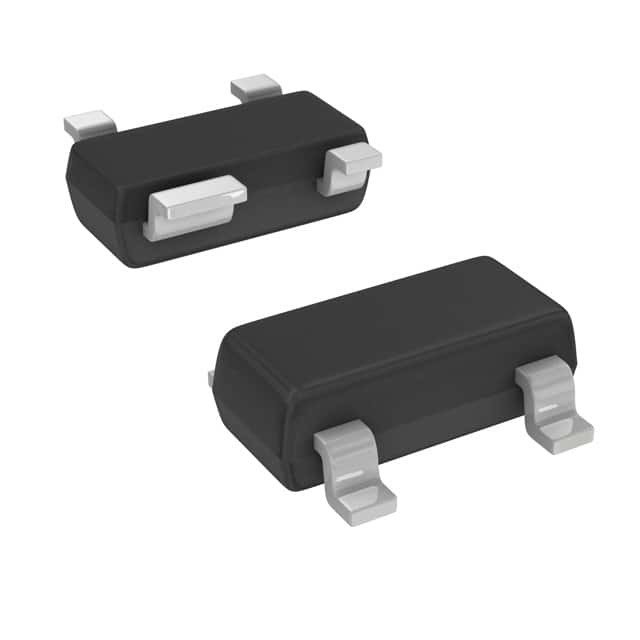

MIC5203-5.0YM4-TR IC REG LINEAR 5V 80MA SOT143 Microchip Technology
| Brand Name | Microchip Technology |
|---|---|
| Model Number | MIC5203-5.0YM4-TR |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 5V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.6V @ 80mA | Current - Output | 80mA |
| Current - Quiescent (Iq) | 750 µA | Current - Supply (Max) | 3 MA |
| PSRR | - | Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | TO-253-4, TO-253AA |
| Supplier Device Package | SOT-143 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| MIC5203-5.0YM4-TR | IC REG LINEAR 5V 80MA SOT143 | |
| MIC5203-3.6YM4-TR | IC REG LINEAR 3.6V 80MA SOT143 | |
| MIC5203-3.0YM4-TR | IC REG LINEAR 3V 80MA SOT143 | |
| MIC5203-3.3YM4-TR | IC REG LINEAR 3.3V 80MA SOT143 | |
| MIC5203-4.0YM4-TR | IC REG LINEAR 4V 80MA SOT143 | |
| MIC5203-2.6YM4-TR | IC REG LINEAR 2.6V 80MA SOT143 | |
| MIC5203-4.5YM4-TR | IC REG LINEAR 4.5V 80MA SOT143 | |
| MIC5203-2.8YM4-TR | IC REG LINEAR 2.8V 80MA SOT143 | |
| MIC5203-4.7YM4-TR | IC REG LINEAR 4.7V 80MA SOT143 | |
| MIC5203-3.8YM4-TR | IC REG LINEAR 3.8V 80MA SOT143 | |
| MIC5203-3.3BM4 TR | IC REG LINEAR 3.3V 80MA SOT143 | |
| MIC5203-5.0BM4 TR | IC REG LINEAR 5V 80MA SOT143 | |
| MIC5203-2.6BM4 TR | IC REG LINEAR 2.6V 80MA SOT143 | |
| MIC5203-2.8BM4 TR | IC REG LINEAR 2.8V 80MA SOT143 | |
| MIC5203-3.0BM4 TR | IC REG LINEAR 3V 80MA SOT143 | |
| MIC5203-3.6BM4 TR | IC REG LINEAR 3.6V 80MA SOT143 | |
| MIC5203-3.8BM4 TR | IC REG LINEAR 3.8V 80MA SOT143 | |
| MIC5203-4.0BM4 TR | IC REG LINEAR 4V 80MA SOT143 | |
| MIC5203-4.5BM4 TR | IC REG LINEAR 4.5V 80MA SOT143 | |
| MIC5203-4.7BM4 TR | IC REG LINEAR 4.7V 80MA SOT143 |
Product Description
Product Details
General Description
The MIC5203 is a µCap 80mA linear voltage regulator with very low dropout voltage (typically 20mV at light loads and 300mV at 80mA) and very low ground current (225µA at 20mA output), offering better than 3% initial accuracy with a logic-compatible enable input. TheµCap regulator design is optimized to work with low value, low-cost ceramic capacitors. The outputs typically require only 0.47µF of output capacitance for stability.
Features
• Tiny 4- and 5-lead surface-mount packages• Wide selection of output voltages
• Guaranteed 80mA output
• Low quiescent current
•Low dropout voltage
•Low temperature coefficient
• Current and thermal limiting
• Reversed input polarity protection
• Zero off-mode current
•Logic-controlled shutdown
• Stability with low-ESR ceramic capacitors
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Microchip Technology |
| Product Category | Linear Voltage Regulators |
| Series | - |
| Packaging | Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | TO-253-4, TO-253AA |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | SOT-143 |
| Voltage-Input | Up to 16V |
| Current-Output | 80mA |
| Voltage-Output | 5V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 0.3V @ 80mA |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
| Output-Current | 150 mA |
| Part-#-Aliases | MIC5203-5.0YM4 TR |
| Package-Case | SOT-143-4 |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 5V 80mA SOT-143
LDO Regulator Pos 5V 0.08A 4-Pin(3+Tab) SOT-143 T/R
LDO Voltage Regulators
