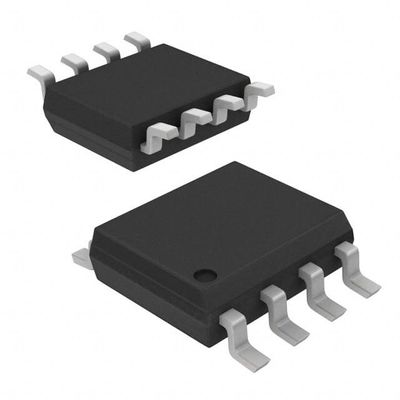

AP2111MP-3.3TRG1 IC REG LINEAR 3.3V 600MA 8PSOP Diodes Incorporated
| Brand Name | Diodes Incorporated |
|---|---|
| Model Number | AP2111MP-3.3TRG1 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3.3V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.4V @ 600mA | Current - Output | 600mA |
| Current - Quiescent (Iq) | 80 µA | Current - Supply (Max) | - |
| PSRR | 65dB (100Hz ~ 1kHz) | Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-PSOP |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| AP2111MP-3.3TRG1 | IC REG LINEAR 3.3V 600MA 8PSOP | |
| PAM3116BLBADJR | IC REG LINEAR POS ADJ 1.5A 8SOP | |
| AP7215-33SG-13 | IC REG LINEAR 3.3V 600MA 8SOP | |
| PAM3116ABLBADJR | IC REG LINEAR POS ADJ 1.5A 8SOP | |
| AP7217A-33SG-13 | IC REG LINEAR 3.3V 600MA 8SOP | |
| AP78L12SG-13 | IC REG LINEAR 12V 100MA 8SOP | |
| AP1118S12L-13 | IC REG LINEAR 12V 1A 8SOP | |
| AP1118S15L-13 | IC REG LINEAR 1.5V 1A 8SOP | |
| AP1118S18L-13 | IC REG LINEAR 1.8V 1A 8SOP | |
| AP1118S25L-13 | IC REG LINEAR 2.5V 1A 8SOP | |
| AP1118S33L-13 | IC REG LINEAR 3.3V 1A 8SOP | |
| AP1118S50L-13 | IC REG LINEAR 5V 1A 8SOP | |
| AP1118S90L-13 | IC REG LINEAR 9V 1A 8SOP | |
| AP1120SBL-13 | IC REG LIN 1.8V/3.3V 1A/1A 8SOP | |
| AP1121BSL-13 | IC REG LIN 1.8V/3.3V 1A/1A 8SOP | |
| AP78L05SG-13 | IC REG LINEAR 5V 100MA 8SOP | |
| AP1121BSG-13 | IC REG LIN 1.8V/3.3V 1A/1A 8SOP | |
| AP1121ASG-13 | IC REG LIN 2.5V/3.3V 1A/1A 8SOP | |
| AP7217-33SG-13 | IC REG LINEAR 3.3V 500MA 8SOP | |
| AP1121ASL-13 | IC REG LIN 2.5V/3.3V 1A/1A 8SOP |
Product Description
Product Details
Description
The AP2101 and AP2111 are integrated high-side power switches optimized for Universal Serial Bus (USB) and other hot-swap applications. The family of devices complies with USB 2.0 and available with both polarities of Enable input. They offer current and thermal limiting and short circuit protection as well as controlled rise time, under-voltage lockout and auto-discharge functionalities. A 7ms deglitch capability on the open-drain Flag output prevents false over-current reporting and does not require any external components.All devices are available in SOP-8L and MSOP-8L-EP packages.
Features
• Single USB port power switches with auto-discharge• Short-circuit current and thermal protection
• 2.45A accurate current limiting
• Fast transient response time: 5μs
• 90mΩ on-resistance
• Reverse Current Blocking
• Input voltage range: 2.7V – 5.5V
• 0.6ms typical rise time
• Very low shutdown current: 1μA (max)
• Fault report (FLG) with blanking time (7ms typ)
• ESD protection: 4KV HBM, 300V MM
• Active low (AP2101) or active high (AP2111) enable
• Ambient temperature range: -35°C to 85°C
• SOP-8L and MSOP-8L-EP (Exposed Pad): Available in
“Green” Molding Compound (No Br, Sb)
• Lead Free Finish / RoHS Compliant (Note 1)
• UL Recognized, File Number E322375
• IEC60950-1 CB Scheme Certified
Applications
• Consumer electronics – LCD TV & Monitor, Game Machines• Communications – Set-Top-Box, GPS, Smartphone
• Computing – Laptop, Desktop, Servers, Printers, Docking Station, HUB
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | Linear Voltage Regulators |
| Series | AP2111 |
| Product | USB Current Limited Power Switches |
| Type | High Side Switch |
| Packaging | Tape & Reel (TR) |
| Package-Case | 8-SOIC (0.154", 3.90mm Width) |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | 8-PSOP |
| Voltage-Input | Up to 6V |
| Current-Output | 600mA |
| Voltage-Output | 3.3V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 0.25V @ 600mA |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
| Manufacturer Part# | Description | Manufacturer | Compare |
| AP2111MP-3.3TRG1 Power Circuits |
Fixed Positive LDO Regulator, 3.3V, 0.4V Dropout, CMOS, PDSO8, GREEN, PLASTIC, SOP-8 | Diodes Incorporated | AP2111MP-3.3TRG1 vs AP2111MP-3.3TRG1 |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 600mA 8-PSOP
