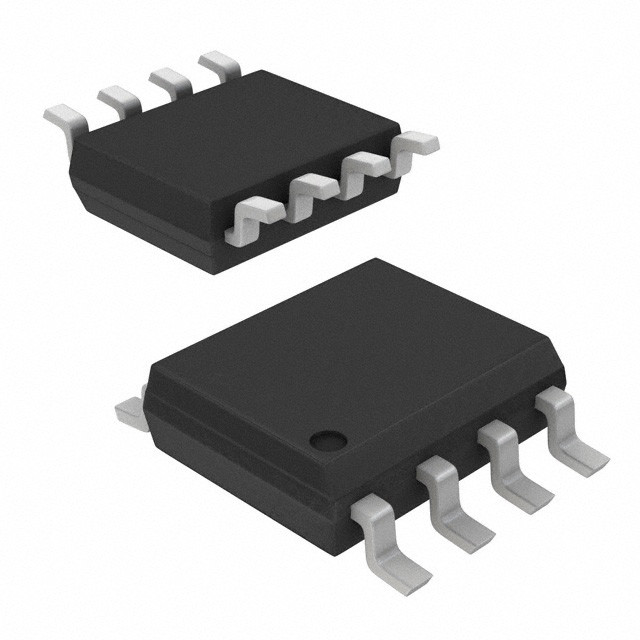

RC2951M IC REG LIN POS ADJ 100MA 8SOIC onsemi
| Brand Name | onsemi |
|---|---|
| Model Number | RC2951M |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Adjustable |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 1.24V | Voltage - Output (Max) | 29V |
| Voltage Dropout (Max) | 0.38V @ 100mA | Current - Output | 100mA |
| Current - Quiescent (Iq) | 140 µA | Current - Supply (Max) | 15 MA |
| PSRR | - | Control Features | Enable |
| Protection Features | Over Current, Over Temperature | Operating Temperature | -55°C ~ 150°C |
| Mounting Type | Surface Mount | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| RC2951M | IC REG LIN POS ADJ 100MA 8SOIC | |
| KA79L05AD | IC REG LINEAR -5V 100MA 8SOP | |
| KA78L08ADTF | IC REG LINEAR 8V 100MA 8SOIC | |
| KA78L12AD | IC REG LINEAR 12V 100MA 8SOIC | |
| KA78L05AD | IC REG LINEAR 5V 100MA 8SOIC | |
| MC78L05ACD | IC REG LINEAR 5V 100MA 8SOIC | |
| KA79L05ADTF | IC REG LINEAR -5V 100MA 8SOP | |
| KA78L12ADTF | IC REG LINEAR 12V 100MA 8SOIC | |
| LM317LM | IC REG LIN POS ADJ 100MA 8SOIC | |
| KA78RL00DTF | IC REG LIN POS ADJ 100MA 8SOIC | |
| KA78RL00D | IC REG LIN POS ADJ 100MA 8SOIC | |
| LP2951CM | IC REG LIN POS ADJ 100MA 8SOIC | |
| ILC7083AIM5ADJX | IC REG LIN POS ADJ 150MA 8SOIC | |
| ILC7084AIM5ADJX | IC REG LIN POS ADJ 150MA 8SOIC | |
| ILC7083AIK30X | IC REG LINEAR 3V 150MA 8SOIC | |
| LP2951CMX | IC REG LIN POS ADJ 100MA 8SOIC | |
| LM317LMX | IC REG LIN POS ADJ 100MA 8SOIC | |
| MC78L05ACDX | IC REG LINEAR 5V 100MA 8SOIC | |
| KA78L05ADTF | IC REG LINEAR 5V 100MA 8SOIC | |
| KA78L05AIDTF | IC REG LINEAR 5V 100MA 8SOIC |
Product Description
Product Details
Description
The RC2951 is a voltage regulator specifically designed to maintain proper regulation with a very low dropout voltage (Typ. 40mV at light loads and 380 mV at 100mA). It has a low quiescent bias current of 75µA and is capable of supplying output currents in excess of 100mA. It has internal current and thermal limiting protection. The output can be programmed from 1.24V to 29V with two external resistors. A fixed output voltage (3.3V) is also available.
Features
• High accuracy output voltage• Guaranteed 100 mA output current
• Extremely low quiescent current
• Extremely tight load and line regulation
• Requires only a 1.0µF output capacitor for stability
• Internal Current and Thermal Limiting
• Error flag warns of output dropout
• Logic-controlled electronic shutdown
• Output programmable from 1.24 to 29V
• Fixed 3.3V version available
• 8 lead SOIC package
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | |
| Product Category | Linear Voltage Regulators |
| Categories | PMIC - Voltage Regulators - Linear |
| Manufacturer | ON Semiconductor |
| Series | - |
| Packaging | Tube |
| Part-Status | Obsolete |
| Output-Configuration | Positive |
| Output-Type | Adjustable |
| Number-of-Regulators | 1 Regulator |
| Voltage-Input-Max | 30V |
| Voltage-Output-Min-Fixed | 1.24V |
| Voltage-Output-Max | 29V |
| Voltage-Dropout-Max | 0.38V @ 100mA |
| Current-Output | 100mA |
| Current-Quiescent-Iq | 140?A |
| Current-Supply-Max | 15mA |
| PSRR | - |
| Control-Features | Enable |
| Protection-Features | Over Current, Over Temperature |
| Operating-Temperature | -55°C ~ 150°C |
| Mounting-Type | Surface Mount |
| Package-Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier-Device-Package | 8-SOIC |
| Base-Part-Number | RC2951 |
Descriptions
Linear Voltage Regulator IC Positive Adjustable 1 Output 1.24 V ~ 29 V 100mA 8-SOIC
