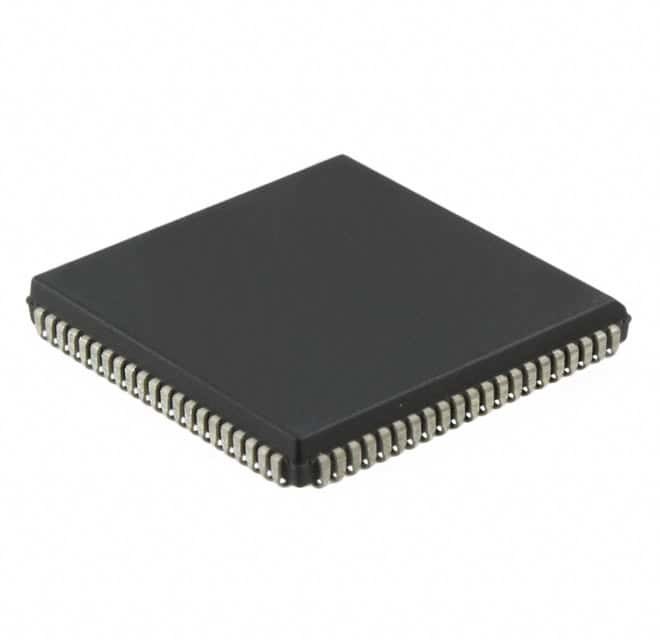

7026L15JG IC SRAM 256KBIT PARALLEL 84PLCC Renesas Electronics America Inc

  • 7026L15JG IC SRAM 256KBIT PARALLEL 84PLCC Renesas Electronics America Inc
Brand Name Renesas Electronics America Inc
Model Number 7026L15JG
Minimum Order Quantity 1
Price Based on current price
Packaging Details anti-static bag & cardboard box
Delivery Time 3-5 work days
Payment Terms T/T
Supply Ability In stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Memory Type Volatile Memory Format SRAM
Technology SRAM - Dual Port, Asynchronous Memory Size 256Kbit
Memory Organization 16K X 16 Memory Interface Parallel
Clock Frequency - Write Cycle Time - Word, Page 15ns
Access Time 15 Ns Voltage - Supply 4.5V ~ 5.5V
Operating Temperature 0°C ~ 70°C (TA) Mounting Type Surface Mount
Package / Case 84-LCC (J-Lead) Supplier Device Package 84-PLCC (29.31x29.31)
You can tick the products you need and communicate with us in the message board.
Part Number Description
7026L15JG IC SRAM 256KBIT PARALLEL 84PLCC
7024L15JG IC SRAM 64KBIT PARALLEL 84PLCC
7024L15JG8 IC SRAM 64KBIT PARALLEL 84PLCC
7024L20JGI IC SRAM 64KBIT PARALLEL 84PLCC
7024L20JGI8 IC SRAM 64KBIT PARALLEL 84PLCC
7025L20JGI8 IC SRAM 128KBIT PARALLEL 84PLCC
7025L15JG IC SRAM 128KBIT PARALLEL 84PLCC
7025L20JGI IC SRAM 128KBIT PARALLEL 84PLCC
7008L15J IC SRAM 512KBIT PARALLEL 84PLCC
7008L15J8 IC SRAM 512KBIT PARALLEL 84PLCC
7008L15JG IC SRAM 512KBIT PARALLEL 84PLCC
7008L15JG8 IC SRAM 512KBIT PARALLEL 84PLCC
7008L20J IC SRAM 512KBIT PARALLEL 84PLCC
7008L20J8 IC SRAM 512KBIT PARALLEL 84PLCC
7008L20JI IC SRAM 512KBIT PARALLEL 84PLCC
7008L20JI8 IC SRAM 512KBIT PARALLEL 84PLCC
7008L25J IC SRAM 512KBIT PARALLEL 84PLCC
7008L25J8 IC SRAM 512KBIT PARALLEL 84PLCC
7008L35J IC SRAM 512KBIT PARALLEL 84PLCC
7008L35J8 IC SRAM 512KBIT PARALLEL 84PLCC
7008L55J IC SRAM 512KBIT PARALLEL 84PLCC
7008L55J8 IC SRAM 512KBIT PARALLEL 84PLCC
7008S15J IC SRAM 512KBIT PARALLEL 84PLCC
7008S15J8 IC SRAM 512KBIT PARALLEL 84PLCC
7008S20J IC SRAM 512KBIT PARALLEL 84PLCC
7008S20J8 IC SRAM 512KBIT PARALLEL 84PLCC
7008S25J IC SRAM 512KBIT PARALLEL 84PLCC
7008S25J8 IC SRAM 512KBIT PARALLEL 84PLCC
7008S35J IC SRAM 512KBIT PARALLEL 84PLCC
7008S35J8 IC SRAM 512KBIT PARALLEL 84PLCC
7008S55J IC SRAM 512KBIT PARALLEL 84PLCC
7008S55J8 IC SRAM 512KBIT PARALLEL 84PLCC
7024L15J IC SRAM 64KBIT PARALLEL 84PLCC
7024L15J8 IC SRAM 64KBIT PARALLEL 84PLCC
7024L17J IC SRAM 64KBIT PARALLEL 84PLCC
7024L17J8 IC SRAM 64KBIT PARALLEL 84PLCC
7024L20J IC SRAM 64KBIT PARALLEL 84PLCC
7024L20J8 IC SRAM 64KBIT PARALLEL 84PLCC
7024L20JI IC SRAM 64KBIT PARALLEL 84PLCC
7024L20JI8 IC SRAM 64KBIT PARALLEL 84PLCC
7024L25J IC SRAM 64KBIT PARALLEL 84PLCC
7024L25J8 IC SRAM 64KBIT PARALLEL 84PLCC
7024L30J IC SRAM 64KBIT PARALLEL 84PLCC
7024L30J8 IC SRAM 64KBIT PARALLEL 84PLCC
7024L35J IC SRAM 64KBIT PARALLEL 84PLCC
7024L35J8 IC SRAM 64KBIT PARALLEL 84PLCC
7024L45J IC SRAM 64KBIT PARALLEL 84PLCC
7024L45J8 IC SRAM 64KBIT PARALLEL 84PLCC
7024L55J IC SRAM 64KBIT PARALLEL 84PLCC
7024L55J8 IC SRAM 64KBIT PARALLEL 84PLCC
7024S15J IC SRAM 64KBIT PARALLEL 84PLCC
7024S15J8 IC SRAM 64KBIT PARALLEL 84PLCC
7024S17J IC SRAM 64KBIT PARALLEL 84PLCC
7024S17J8 IC SRAM 64KBIT PARALLEL 84PLCC
7024S20J IC SRAM 64KBIT PARALLEL 84PLCC
7024S20J8 IC SRAM 64KBIT PARALLEL 84PLCC
7024S25J IC SRAM 64KBIT PARALLEL 84PLCC
7024S25J8 IC SRAM 64KBIT PARALLEL 84PLCC
7024S30J IC SRAM 64KBIT PARALLEL 84PLCC
7024S30J8 IC SRAM 64KBIT PARALLEL 84PLCC
7024S35J IC SRAM 64KBIT PARALLEL 84PLCC
7024S35J8 IC SRAM 64KBIT PARALLEL 84PLCC
7024S45J IC SRAM 64KBIT PARALLEL 84PLCC
7024S45J8 IC SRAM 64KBIT PARALLEL 84PLCC
7024S55J IC SRAM 64KBIT PARALLEL 84PLCC
7024S55J8 IC SRAM 64KBIT PARALLEL 84PLCC
7024S55JI IC SRAM 64KBIT PARALLEL 84PLCC
7024S55JI8 IC SRAM 64KBIT PARALLEL 84PLCC
7025L15J IC SRAM 128KBIT PARALLEL 84PLCC
7025L15J8 IC SRAM 128KBIT PARALLEL 84PLCC
7025L15JG8 IC SRAM 128KBIT PARALLEL 84PLCC
7025L17J IC SRAM 128KBIT PARALLEL 84PLCC
7025L17J8 IC SRAM 128KBIT PARALLEL 84PLCC
7025L20J IC SRAM 128KBIT PARALLEL 84PLCC
7025L20J8 IC SRAM 128KBIT PARALLEL 84PLCC
7025L20JI IC SRAM 128KBIT PARALLEL 84PLCC
7025L20JI8 IC SRAM 128KBIT PARALLEL 84PLCC
7025L25J IC SRAM 128KBIT PARALLEL 84PLCC
7025L25J8 IC SRAM 128KBIT PARALLEL 84PLCC
7025L30J IC SRAM 128KBIT PARALLEL 84PLCC
7025L30J8 IC SRAM 128KBIT PARALLEL 84PLCC
7025L35J IC SRAM 128KBIT PARALLEL 84PLCC
7025L35J8 IC SRAM 128KBIT PARALLEL 84PLCC
7025L45J IC SRAM 128KBIT PARALLEL 84PLCC
7025L45J8 IC SRAM 128KBIT PARALLEL 84PLCC
7025L55J IC SRAM 128KBIT PARALLEL 84PLCC
7025L55J8 IC SRAM 128KBIT PARALLEL 84PLCC
7025S15J IC SRAM 128KBIT PARALLEL 84PLCC
7025S15J8 IC SRAM 128KBIT PARALLEL 84PLCC
7025S17J IC SRAM 128KBIT PARALLEL 84PLCC
7025S17J8 IC SRAM 128KBIT PARALLEL 84PLCC
7025S20J IC SRAM 128KBIT PARALLEL 84PLCC
7025S20J8 IC SRAM 128KBIT PARALLEL 84PLCC
7025S25J IC SRAM 128KBIT PARALLEL 84PLCC
7025S25J8 IC SRAM 128KBIT PARALLEL 84PLCC
7025S30J IC SRAM 128KBIT PARALLEL 84PLCC
7025S30J8 IC SRAM 128KBIT PARALLEL 84PLCC
7025S35J IC SRAM 128KBIT PARALLEL 84PLCC
7025S35J8 IC SRAM 128KBIT PARALLEL 84PLCC
7025S45J IC SRAM 128KBIT PARALLEL 84PLCC
7025S45J8 IC SRAM 128KBIT PARALLEL 84PLCC
7025S55J IC SRAM 128KBIT PARALLEL 84PLCC
7025S55J8 IC SRAM 128KBIT PARALLEL 84PLCC
7025S55JI IC SRAM 128KBIT PARALLEL 84PLCC
7025S55JI8 IC SRAM 128KBIT PARALLEL 84PLCC
7026L15J IC SRAM 256KBIT PARALLEL 84PLCC
7026L15J8 IC SRAM 256KBIT PARALLEL 84PLCC
7026L20J IC SRAM 256KBIT PARALLEL 84PLCC
7026L20J8 IC SRAM 256KBIT PARALLEL 84PLCC
7026L20JI IC SRAM 256KBIT PARALLEL 84PLCC
7026L20JI8 IC SRAM 256KBIT PARALLEL 84PLCC
7026L25J IC SRAM 256KBIT PARALLEL 84PLCC
7026L25J8 IC SRAM 256KBIT PARALLEL 84PLCC
7026L35J IC SRAM 256KBIT PARALLEL 84PLCC
7026L35J8 IC SRAM 256KBIT PARALLEL 84PLCC
7026L55J IC SRAM 256KBIT PARALLEL 84PLCC
7026L55J8 IC SRAM 256KBIT PARALLEL 84PLCC
7026S15J IC SRAM 256KBIT PARALLEL 84PLCC
7026S15J8 IC SRAM 256KBIT PARALLEL 84PLCC
7026S20J IC SRAM 256KBIT PARALLEL 84PLCC
7026S20J8 IC SRAM 256KBIT PARALLEL 84PLCC
7026S25J IC SRAM 256KBIT PARALLEL 84PLCC
7026S25J8 IC SRAM 256KBIT PARALLEL 84PLCC
7026S35J IC SRAM 256KBIT PARALLEL 84PLCC
7026S35J8 IC SRAM 256KBIT PARALLEL 84PLCC
7026S55J IC SRAM 256KBIT PARALLEL 84PLCC
7026S55J8 IC SRAM 256KBIT PARALLEL 84PLCC
7026S55JI IC SRAM 256KBIT PARALLEL 84PLCC
7026S55JI8 IC SRAM 256KBIT PARALLEL 84PLCC
70V24L15J IC SRAM 64KBIT PARALLEL 84PLCC
70V24L15J8 IC SRAM 64KBIT PARALLEL 84PLCC
70V24L20J IC SRAM 64KBIT PARALLEL 84PLCC
70V24L20J8 IC SRAM 64KBIT PARALLEL 84PLCC
70V24L20JI IC SRAM 64KBIT PARALLEL 84PLCC
70V24L20JI8 IC SRAM 64KBIT PARALLEL 84PLCC
70V24L25J IC SRAM 64KBIT PARALLEL 84PLCC
70V24L25J8 IC SRAM 64KBIT PARALLEL 84PLCC
70V24L35J IC SRAM 64KBIT PARALLEL 84PLCC
70V24L35J8 IC SRAM 64KBIT PARALLEL 84PLCC
70V24L55J IC SRAM 64KBIT PARALLEL 84PLCC
70V24L55J8 IC SRAM 64KBIT PARALLEL 84PLCC
70V24S15J IC SRAM 64KBIT PARALLEL 84PLCC
70V24S15J8 IC SRAM 64KBIT PARALLEL 84PLCC
70V24S20J IC SRAM 64KBIT PARALLEL 84PLCC
70V24S20J8 IC SRAM 64KBIT PARALLEL 84PLCC
70V24S25J IC SRAM 64KBIT PARALLEL 84PLCC
70V24S25J8 IC SRAM 64KBIT PARALLEL 84PLCC
70V24S35J IC SRAM 64KBIT PARALLEL 84PLCC
70V24S35J8 IC SRAM 64KBIT PARALLEL 84PLCC
70V24S55J IC SRAM 64KBIT PARALLEL 84PLCC
70V24S55J8 IC SRAM 64KBIT PARALLEL 84PLCC
70V25L15J IC SRAM 128KBIT PARALLEL 84PLCC
70V25L15J8 IC SRAM 128KBIT PARALLEL 84PLCC
70V25L20J IC SRAM 128KBIT PARALLEL 84PLCC
70V25L20J8 IC SRAM 128KBIT PARALLEL 84PLCC
70V25L20JI IC SRAM 128KBIT PARALLEL 84PLCC
70V25L20JI8 IC SRAM 128KBIT PARALLEL 84PLCC
70V25L25J IC SRAM 128KBIT PARALLEL 84PLCC
70V25L25J8 IC SRAM 128KBIT PARALLEL 84PLCC
70V25L35J IC SRAM 128KBIT PARALLEL 84PLCC
70V25L35J8 IC SRAM 128KBIT PARALLEL 84PLCC
70V25L55J IC SRAM 128KBIT PARALLEL 84PLCC
70V25L55J8 IC SRAM 128KBIT PARALLEL 84PLCC
70V25S15J IC SRAM 128KBIT PARALLEL 84PLCC
70V25S15J8 IC SRAM 128KBIT PARALLEL 84PLCC
70V25S20J IC SRAM 128KBIT PARALLEL 84PLCC
70V25S20J8 IC SRAM 128KBIT PARALLEL 84PLCC
70V25S25J IC SRAM 128KBIT PARALLEL 84PLCC
70V25S25J8 IC SRAM 128KBIT PARALLEL 84PLCC
70V25S35J IC SRAM 128KBIT PARALLEL 84PLCC
70V25S35J8 IC SRAM 128KBIT PARALLEL 84PLCC
70V25S55J IC SRAM 128KBIT PARALLEL 84PLCC
70V25S55J8 IC SRAM 128KBIT PARALLEL 84PLCC
70V26L25J IC SRAM 256KBIT PARALLEL 84PLCC
70V26L25J8 IC SRAM 256KBIT PARALLEL 84PLCC
70V26L25JI IC SRAM 256KBIT PARALLEL 84PLCC
70V26L25JI8 IC SRAM 256KBIT PARALLEL 84PLCC
70V26L35J IC SRAM 256KBIT PARALLEL 84PLCC
70V26L35J8 IC SRAM 256KBIT PARALLEL 84PLCC
70V26L55J IC SRAM 256KBIT PARALLEL 84PLCC
70V26L55J8 IC SRAM 256KBIT PARALLEL 84PLCC
70V26S25J IC SRAM 256KBIT PARALLEL 84PLCC
70V26S25J8 IC SRAM 256KBIT PARALLEL 84PLCC
70V26S35J IC SRAM 256KBIT PARALLEL 84PLCC
70V26S35J8 IC SRAM 256KBIT PARALLEL 84PLCC
70V26S55J IC SRAM 256KBIT PARALLEL 84PLCC
70V26S55J8 IC SRAM 256KBIT PARALLEL 84PLCC
Leave a Message
Part Number Description
Product Description

Product Details



Description

The IDT7026 is a high-speed 16K x 16 Dual-Port Static RAM. The IDT7026 is designed to be used as a stand-alone Dual-Port RAM or as a combination MASTER/SLAVE Dual-Port RAM for 32-bit-or-more word systems. Using the IDT MASTER/SLAVE Dual-Port RAM approach in 32-bit or wider memory system applications results in full-speed, error-free operation without the need for additional discrete logic.





Features

◆ True Dual-Ported memory cells which allow simultaneous
access of the same memory location
◆ High-speed access
– Commercial: 15/20/25/35/55ns (max.)
– Industrial: 20/25/35/55ns (max.)
– Military: 20/25/35/55ns (max.)
◆ Low-power operation
– IDT7026S
Active: 750mW (typ.)
Standby: 5mW (typ.)
– IDT7026L
Active: 750mW (typ.)
Standby: 1mW (typ.)
◆ Separate upper-byte and lower-byte control for multiplexed bus compatibility
◆ IDT7026 easily expands data bus width to 32 bits or more
using the Master/Slave select when cascading more than
one device
◆ M/S = H for BUSY output flag on Master,
M/S = L for BUSY input on Slave
◆ On-chip port arbitration logic
◆ Full on-chip hardware support of semaphore signaling
between ports
◆ Fully asynchronous operation from either port
◆ TTL-compatible, single 5V (±10%) power supply
◆ Available in 84-pin PGA and 84-pin PLCC
◆ Industrial temperature range (-40°C to +85°C) is available
for selected speeds
◆ Green parts available, see ordering information



Specifications

Attribute Attribute Value
Manufacturer Integrated Circuit Systems
Product Category Memory ICs
Series -
Packaging Tube
Package-Case 84-LCC (J-Lead)
Operating-Temperature 0°C ~ 70°C (TA)
Interface Parallel
Voltage-Supply 4.5 V ~ 5.5 V
Supplier-Device-Package 84-PLCC (29.21x29.21)
Memory Capacity 256K (16K x 16)
Memory-Type SRAM - Dual Port, Asynchronous
Speed 15ns
Format-Memory RAM

Descriptions

SRAM - Dual Port, Asynchronous Memory IC 256Kb (16K x 16) Parallel 15ns 84-PLCC (29.31x29.31)
