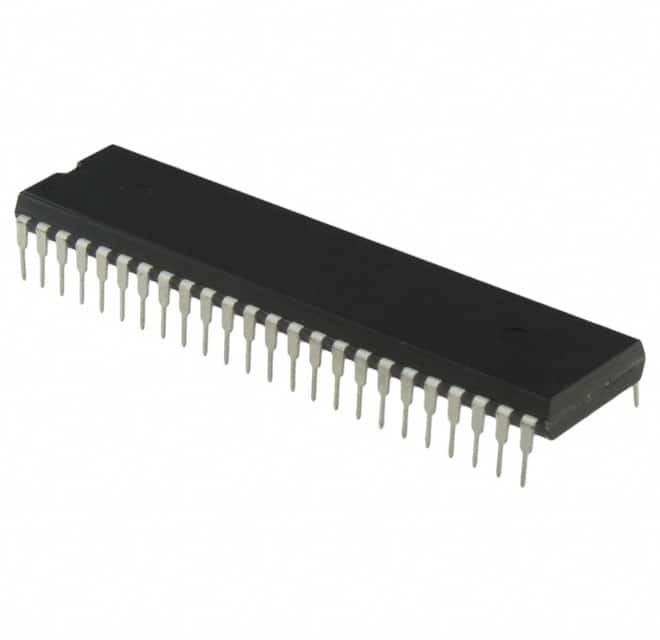

7130SA100C IC SRAM 8KBIT PARALLEL SB48 Renesas Electronics America Inc
| Brand Name | Renesas Electronics America Inc |
|---|---|
| Model Number | 7130SA100C |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Memory Type | Volatile | Memory Format | SRAM |
|---|---|---|---|
| Technology | SRAM - Dual Port, Asynchronous | Memory Size | 8Kbit |
| Memory Organization | 1K X 8 | Memory Interface | Parallel |
| Clock Frequency | - | Write Cycle Time - Word, Page | 100ns |
| Access Time | 100 Ns | Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C (TA) | Mounting Type | Through Hole |
| Package / Case | 48-DIP (0.600", 15.24mm) | Supplier Device Package | 48-SIDE BRAZED |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| 7130SA100C | IC SRAM 8KBIT PARALLEL SB48 | |
| 7130LA100C | IC SRAM 8KBIT PARALLEL SB48 | |
| 7130SA35C | IC SRAM 8KBIT PARALLEL SB48 | |
| 7130SA55C | IC SRAM 8KBIT PARALLEL SB48 | |
| 7130LA35C | IC SRAM 8KBIT PARALLEL SB48 | |
| 7130LA55C | IC SRAM 8KBIT PARALLEL SB48 | |
| 7132SA100C | IC SRAM 16KBIT PARALLEL SB48 | |
| 7132LA100C | IC SRAM 16KBIT PARALLEL SB48 | |
| 7132SA35C | IC SRAM 16KBIT PARALLEL SB48 | |
| 7132SA55C | IC SRAM 16KBIT PARALLEL SB48 | |
| 7132LA35C | IC SRAM 16KBIT PARALLEL SB48 | |
| 7132LA55C | IC SRAM 16KBIT PARALLEL SB48 | |
| 7130SA100CB | IC SRAM 8KBIT PARALLEL SB48 | |
| 7130LA100CB | IC SRAM 8KBIT PARALLEL SB48 | |
| 5962-8687505XA | IC SRAM 8KBIT PARALLEL SB48 | |
| 7134SA70CB | IC SRAM 32KBIT PARALLEL SB48 | |
| 7130LA35CB | IC SRAM 8KBIT PARALLEL SB48 | |
| 7132SA55CB | IC SRAM 16KBIT PARALLEL SB48 | |
| 7132SA100CB | IC SRAM 16KBIT PARALLEL SB48 | |
| 7134LA70CB | IC SRAM 32KBIT PARALLEL SB48 | |
| 7132LA100CB | IC SRAM 16KBIT PARALLEL SB48 | |
| 7132LA35CB | IC SRAM 16KBIT PARALLEL SB48 | |
| 7132LA55CB | IC SRAM 16KBIT PARALLEL SB48 | |
| 7134LA35CB | IC SRAM 32KBIT PARALLEL SB48 | |
| 7130LA100P | IC SRAM 8KBIT PARALLEL 48DIP | |
| 7130LA35P | IC SRAM 8KBIT PARALLEL 48DIP | |
| 7130LA35PDG | IC SRAM 8KBIT PARALLEL 48DIP | |
| 7130LA55P | IC SRAM 8KBIT PARALLEL 48DIP | |
| 7130LA55PDGI | IC SRAM 8KBIT PARALLEL 48DIP | |
| 7130SA100P | IC SRAM 8KBIT PARALLEL 48DIP | |
| 7130SA35P | IC SRAM 8KBIT PARALLEL 48DIP | |
| 7130SA55P | IC SRAM 8KBIT PARALLEL 48DIP | |
| 7132LA100P | IC SRAM 16KBIT PARALLEL 48DIP | |
| 7132LA35P | IC SRAM 16KBIT PARALLEL 48DIP | |
| 7132LA35PDG | IC SRAM 16KBIT PARALLEL 48DIP | |
| 7132LA55P | IC SRAM 16KBIT PARALLEL 48DIP | |
| 7132LA55PDGI | IC SRAM 16KBIT PARALLEL 48DIP | |
| 7132SA100P | IC SRAM 16KBIT PARALLEL 48DIP | |
| 7132SA35P | IC SRAM 16KBIT PARALLEL 48DIP | |
| 7132SA55P | IC SRAM 16KBIT PARALLEL 48DIP | |
| 7134LA20P | IC SRAM 32KBIT PARALLEL 48DIP | |
| 7134LA25P | IC SRAM 32KBIT PARALLEL 48DIP | |
| 7134LA35P | IC SRAM 32KBIT PARALLEL 48DIP | |
| 7134LA45P | IC SRAM 32KBIT PARALLEL 48DIP | |
| 7134LA55P | IC SRAM 32KBIT PARALLEL 48DIP | |
| 7134LA70P | IC SRAM 32KBIT PARALLEL 48DIP | |
| 7134SA20P | IC SRAM 32KBIT PARALLEL 48DIP | |
| 7134SA25P | IC SRAM 32KBIT PARALLEL 48DIP | |
| 7134SA35P | IC SRAM 32KBIT PARALLEL 48DIP | |
| 7134SA45P | IC SRAM 32KBIT PARALLEL 48DIP | |
| 7134SA55P | IC SRAM 32KBIT PARALLEL 48DIP | |
| 7134SA70P | IC SRAM 32KBIT PARALLEL 48DIP | |
| 7140LA100P | IC SRAM 8KBIT PARALLEL 48DIP | |
| 7140LA35P | IC SRAM 8KBIT PARALLEL 48DIP | |
| 7140LA55P | IC SRAM 8KBIT PARALLEL 48DIP | |
| 7140SA100P | IC SRAM 8KBIT PARALLEL 48DIP | |
| 7140SA35P | IC SRAM 8KBIT PARALLEL 48DIP | |
| 7140SA55P | IC SRAM 8KBIT PARALLEL 48DIP | |
| 7142LA100C | IC SRAM 16KBIT PARALLEL SB48 | |
| 7142LA100P | IC SRAM 16KBIT PARALLEL 48DIP | |
| 7142LA35C | IC SRAM 16KBIT PARALLEL SB48 | |
| 7142LA35P | IC SRAM 16KBIT PARALLEL 48DIP | |
| 7142LA55C | IC SRAM 16KBIT PARALLEL SB48 | |
| 7142LA55P | IC SRAM 16KBIT PARALLEL 48DIP | |
| 7142SA100C | IC SRAM 16KBIT PARALLEL SB48 | |
| 7142SA100P | IC SRAM 16KBIT PARALLEL 48DIP | |
| 7142SA35C | IC SRAM 16KBIT PARALLEL SB48 | |
| 7142SA35P | IC SRAM 16KBIT PARALLEL 48DIP | |
| 7142SA55C | IC SRAM 16KBIT PARALLEL SB48 | |
| 7142SA55P | IC SRAM 16KBIT PARALLEL 48DIP | |
| 7134LA20PDG | IC SRAM 32KBIT PARALLEL 48DIP | |
| 7130LA55CB | IC SRAM 8KBIT PARALLEL SB48 | |
| 7130SA35CB | IC SRAM 8KBIT PARALLEL SB48 | |
| 7130SA55CB | IC SRAM 8KBIT PARALLEL SB48 | |
| 7132SA35CB | IC SRAM 16KBIT PARALLEL SB48 | |
| 7134LA25PDGI | IC SRAM 32KBIT PARALLEL 48DIP | |
| 7134LA45CB | IC SRAM 32KBIT PARALLEL SB48 | |
| 7134LA55CB | IC SRAM 32KBIT PARALLEL SB48 | |
| 7134SA35CB | IC SRAM 32KBIT PARALLEL SB48 | |
| 7134SA45CB | IC SRAM 32KBIT PARALLEL SB48 | |
| 7134SA55CB | IC SRAM 32KBIT PARALLEL SB48 | |
| 7140LA100CB | IC SRAM 8KBIT PARALLEL SB48 | |
| 7140LA35CB | IC SRAM 8KBIT PARALLEL SB48 | |
| 7140LA55CB | IC SRAM 8KBIT PARALLEL SB48 | |
| 7140SA100CB | IC SRAM 8KBIT PARALLEL SB48 | |
| 7140SA35CB | IC SRAM 8KBIT PARALLEL SB48 | |
| 7140SA55CB | IC SRAM 8KBIT PARALLEL SB48 | |
| 7142LA100CB | IC SRAM 16KBIT PARALLEL SB48 | |
| 7142LA35CB | IC SRAM 16KBIT PARALLEL SB48 | |
| 7142LA55CB | IC SRAM 16KBIT PARALLEL SB48 | |
| 7142SA100CB | IC SRAM 16KBIT PARALLEL SB48 | |
| 7142SA35CB | IC SRAM 16KBIT PARALLEL SB48 | |
| 7142SA55CB | IC SRAM 16KBIT PARALLEL SB48 | |
| 7130LA100PDG | IC SRAM 8KBIT PARALLEL 48DIP | |
| 7132LA100PDG | IC SRAM 16KBIT PARALLEL 48DIP | |
| 7140LA100PDG | IC SRAM 8KBIT PARALLEL 48DIP | |
| 7140LA35PDG | IC SRAM 8KBIT PARALLEL 48DIP | |
| 7142LA100PDG | IC SRAM 16KBIT PARALLEL 48DIP | |
| 7142LA35PDG | IC SRAM 16KBIT PARALLEL 48DIP |
Product Description
Product Details
Description
The IDT7130/IDT7140 are high-speed 1K x 8 Dual-Port Static RAMs. The IDT7130 is designed to be used as a stand-alone 8-bit Dual-Port RAM or as a "MASTER" Dual-Port RAM together with the IDT7140 "SLAVE" Dual-Port in 16-bit-or-more word width systems. Using the IDT MASTER/SLAVE Dual-Port RAM approach in 16-or more-bit memory system applications results in full-speed, error free operation without the need for additional discrete logic.
Features
◆ High-speed access– Commercial: 20/25/35/55/100ns (max.)
– Industrial: 25/55/100ns (max.)
– Military: 25/35/55/100ns (max.)
◆ Low-power operation
– IDT7130/IDT7140SA
— Active: 550mW (typ.)
— Standby: 5mW (typ.)
– IDT7130/IDT7140LA
— Active: 550mW (typ.)
— Standby: 1mW (typ.)
◆ MASTER IDT7130 easily expands data bus width to 16-or more-bits using SLAVE IDT7140
◆ Fully asynchronous operation from either port
◆ Battery backup operation–2V data retention (LA only)
◆ TTL-compatible, single 5V ±10% power supply
◆ Military product compliant to MIL-PRF-38535 QML
◆ Industrial temperature range (–40°C to +85°C) is available for selected speeds
◆ Available in 48-pin DIP, LCC and Ceramic Flatpack, 52-pin PLCC, and 64-pin STQFP and TQFP
◆ Green parts available, see ordering information
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Integrated Circuit Systems |
| Product Category | Memory ICs |
| Series | 7130SA10 |
| Type | Asynchronous |
| Packaging | Tube |
| Package-Case | 48-DIP (0.600", 15.24mm) |
| Operating-Temperature | 0°C ~ 70°C (TA) |
| Interface | Parallel |
| Voltage-Supply | 4.5 V ~ 5.5 V |
| Supplier-Device-Package | 48-SIDE BRAZED |
| Memory Capacity | 8K (1K x 8) |
| Memory-Type | SRAM - Dual Port, Asynchronous |
| Speed | 100ns |
| Access-Time | 100 ns |
| Format-Memory | RAM |
| Maximum Operating Temperature | + 70 C |
| Operating temperature range | 0 C |
| Interface-Type | Parallel |
| Organization | 1 k x 8 |
| Supply-Current-Max | 110 mA |
| Part-#-Aliases | 7130 IDT7130SA100C |
| Supply-Voltage-Max | 5.5 V |
| Supply-Voltage-Min | 4.5 V |
| Package-Case | SB-48 |
| Manufacturer Part# | Description | Manufacturer | Compare |
| 7130SA100CGI Memory |
Dual-Port SRAM, 1KX8, 100ns, CMOS, CDIP48, 0.620 X 2.430 INCH, 0.150 INCH HEIGHT, GREEN, SIDE BRAZED, DIP-48 | Integrated Device Technology Inc | 7130SA100C vs 7130SA100CGI |
| 7130LA100CGI Memory |
Dual-Port SRAM, 1KX8, 100ns, CMOS, CDIP48, 0.620 X 2.430 INCH, 0.150 INCH HEIGHT, GREEN, SIDE BRAZED, DIP-48 | Integrated Device Technology Inc | 7130SA100C vs 7130LA100CGI |
| 7130LA100CG Memory |
Dual-Port SRAM, 1KX8, 100ns, CMOS, CDIP48, 0.620 X 2.430 INCH, 0.150 INCH HEIGHT, GREEN, SIDE BRAZED, DIP-48 | Integrated Device Technology Inc | 7130SA100C vs 7130LA100CG |
| IDT7130LA100CG Memory |
Dual-Port SRAM, 1KX8, 100ns, CMOS, CDIP48, 0.620 X 2.430 INCH, 0.150 INCH HEIGHT, GREEN, SIDE BRAZED, DIP-48 | Integrated Device Technology Inc | 7130SA100C vs IDT7130LA100CG |
| IDT7130SA100CG Memory |
Dual-Port SRAM, 1KX8, 100ns, CMOS, CDIP48, 0.620 X 2.430 INCH, 0.150 INCH HEIGHT, GREEN, SIDE BRAZED, DIP-48 | Integrated Device Technology Inc | 7130SA100C vs IDT7130SA100CG |
| IDT7130SA100CGI Memory |
Dual-Port SRAM, 1KX8, 100ns, CMOS, CDIP48, 0.620 X 2.430 INCH, 0.150 INCH HEIGHT, GREEN, SIDE BRAZED, DIP-48 | Integrated Device Technology Inc | 7130SA100C vs IDT7130SA100CGI |
| IDT7130LA100CGI Memory |
Dual-Port SRAM, 1KX8, 100ns, CMOS, CDIP48, 0.620 X 2.430 INCH, 0.150 INCH HEIGHT, GREEN, SIDE BRAZED, DIP-48 | Integrated Device Technology Inc | 7130SA100C vs IDT7130LA100CGI |
| 7130SA100CG Memory |
Dual-Port SRAM, 1KX8, 100ns, CMOS, CDIP48, 0.620 X 2.430 INCH, 0.150 INCH HEIGHT, GREEN, SIDE BRAZED, DIP-48 | Integrated Device Technology Inc | 7130SA100C vs 7130SA100CG |
| IDT7130SA100P Memory |
Dual-Port SRAM, 1KX8, 100ns, CMOS, PDIP48, PLASTIC, DIP-48 | Integrated Device Technology Inc | 7130SA100C vs IDT7130SA100P |
| IDT7130LA100C Memory |
Dual-Port SRAM, 1KX8, 100ns, CMOS, CDIP48, SIDE BRAZED, DIP-48 | Integrated Device Technology Inc | 7130SA100C vs IDT7130LA100C |
Descriptions
SRAM - Dual Port, Asynchronous Memory IC 8Kb (1K x 8) Parallel 100ns 48-SIDE BRAZED
SRAM 8K(1KX8)CMOS DUALPORT RAM
